Easy to install, use and integrate into the production line.

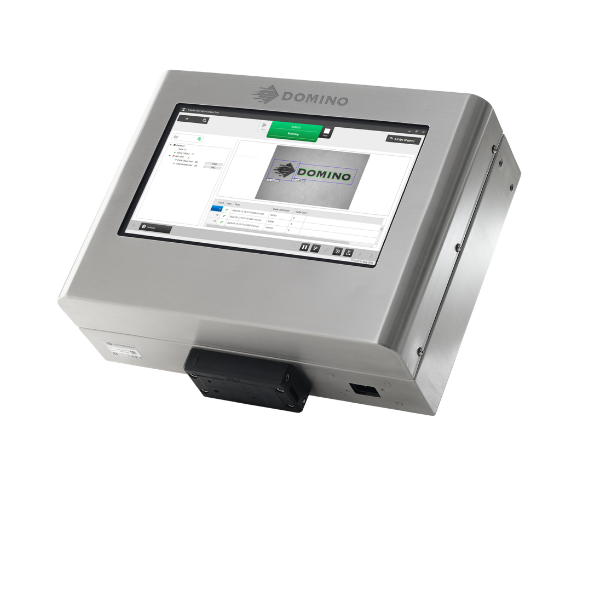

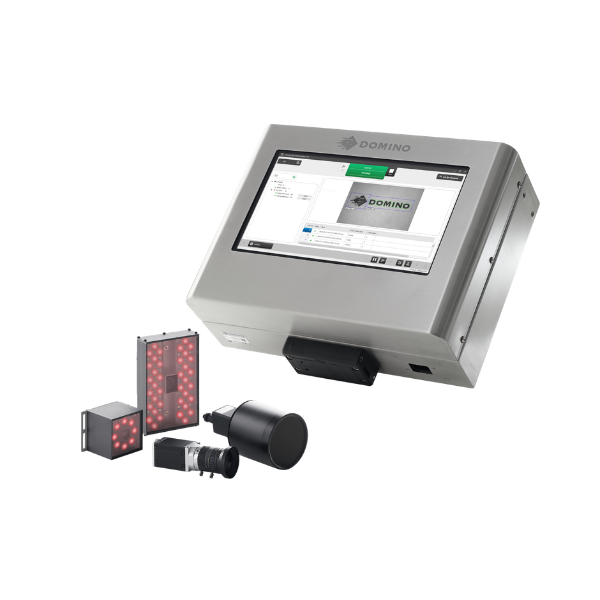

Domino R350
Documents
Contact us to find out more
Key benefits
Optimized to meet the guidelines and best practices of your industry.
Designed so that multiple features can be added through a simple software update.
Coding technology
Explore Nimax’s full range of coding technologies
Technical specifications
- System specifications
- Printer specifications
- Printing performance
- Options
- Domino R350-cpq-1920IP
- Domino R350-cpq-2448IP
- Domino R350-cpq-GR2X
- Domino R350-cpq-GR6
Printhead
No information available.
Cabinet
No information available.
Inks
No information available.
Connettivita
No information available.
Operativita
No information available.
Consumables
No information available.
Maintenance
No information available.
Environment
No information available.
Velocita ms*
No information available.
Size
No information available.
Code format
No information available.
Options
No information available.
Domino R350-cpq-1920IP
| R350 Series | |
|---|---|
| Code inspection tools | • Code presence • Code position • Character count • MRC check (code legibility verification) |
| Speed | Application dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User interface | VGA + USB |
| Options | • Printer HMI and vision system combined through a single Control Panel • High-speed reject tracking system: LInK |
| GE-1920IP camera | |
|---|---|
| Resolution | 1920 x 1080 |
| Max frame rate | 52 FPS |
| Field of view | 106 mm x 66 mm @ 150 mm |
| Working distance | 150 mm |
| Illuminator | Not integrated / external source required |
| Minimum 1D barcode size | Nominal 0.16 mm (minimum bar width) |
| Minimum 2D barcode size | 0.30 mm/cell (minimum module size) |
| Minimum OCR size | 1.38 mm (minimum character height) |
| Dimensions | 29 mm x 29 mm x 45 mm plus lens |
| Protection rating | IP67 |
Domino R350-cpq-2448IP
| R350 Series | |
|---|---|
| Code inspection tools | • Code presence • Code position • Character count • MRC check (code legibility verification) |
| Speed | Application dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User interface | VGA + USB |
| Options | • Printer HMI and vision system combined through a single Control Panel • High-speed reject tracking system: LInK |
| GE-2448IP camera | |
|---|---|
| Resolution | 2448 x 2048 |
| Max frame rate | 24 FPS |
| Field of view | 106 mm x 66 mm @ 150 mm |
| Working distance | 150 mm |
| Illuminator | Not integrated / external source required |
| Minimum 1D barcode size | Nominal 0.16 mm (minimum bar width) |
| Minimum 2D barcode size | 0.30 mm/cell (minimum module size) |
| Minimum OCR size | 1.38 mm (minimum character height) |
| Dimensions | 29 mm x 29 mm x 45 mm plus lens |
| Protection rating | IP67 |

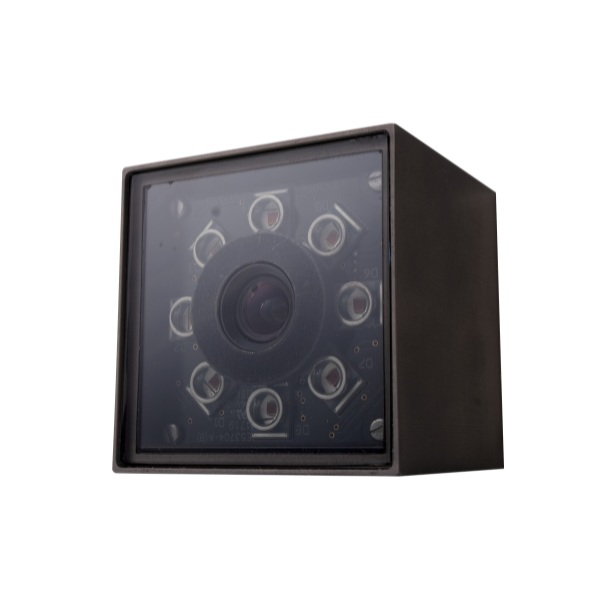

Domino R350-cpq-GR2X
| R350 Series | |
|---|---|
| Code inspection tools | • Code presence • Code position • Character count • MRC check (code legibility verification) |
| Speed | Application dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User interface | VGA + USB |
| Options | • Printer HMI and vision system combined through a single Control Panel • High-speed reject tracking system: LInK |

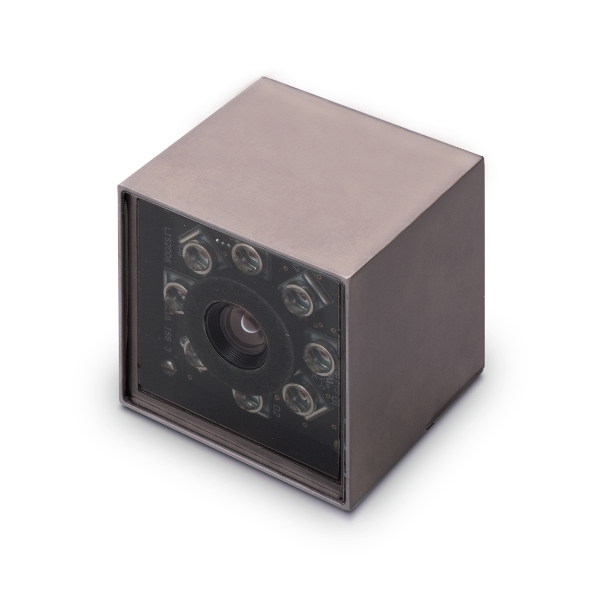

| GR2X-PS-630P camera | |
|---|---|
| Resolution | 1280 x 1024 |
| Max frame rate | 50 FPS |
| Field of view | 70 mm x 55 mm |
| Working distance | 50 mm |
| Illuminator | Integrated, choice of: • Polarized 630 nm red LED • Polarized white LED |
| Minimum 1D barcode size | 0.16 mm (minimum bar width) |
| Minimum 2D barcode size | 0.30 mm/cell (minimum module size) |
| Minimum OCR size | 1.38 mm (minimum character height) |
| Dimensions | 50 mm x 50 mm x 47 mm |
| Protection rating | IP65 (certification being validated) |
Domino R350-cpq-GR6
| R350 Series | |
|---|---|
| Code inspection tools | • Code presence • Code position • Character count • MRC check (code legibility verification) |
| Speed | Application dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User interface | VGA + USB |
| Options | • Printer HMI and vision system combined through a single Control Panel • High-speed reject tracking system: LInK |
| GR6-PS-630P camera | |
|---|---|
| Resolution | 1280 x 1024 |
| Max frame rate | 50 FPS |
| Field of view | 112 mm x 88 mm |
| Working distance | 76 mm |
| Illuminator | Integrated: polarized 630 nm LED |
| Minimum 1D barcode size | 0.3 mm (minimum bar width) |
| Minimum 2D barcode size | 0.46 mm/cell (minimum module size) |
| Minimum OCR size | 2.27 mm (minimum character height) |
| Dimensions | 121 mm x 76 mm x 52 mm |
| Protection rating | IP65 (certification being validated) |
Technologies in action
Accessories
FAQ

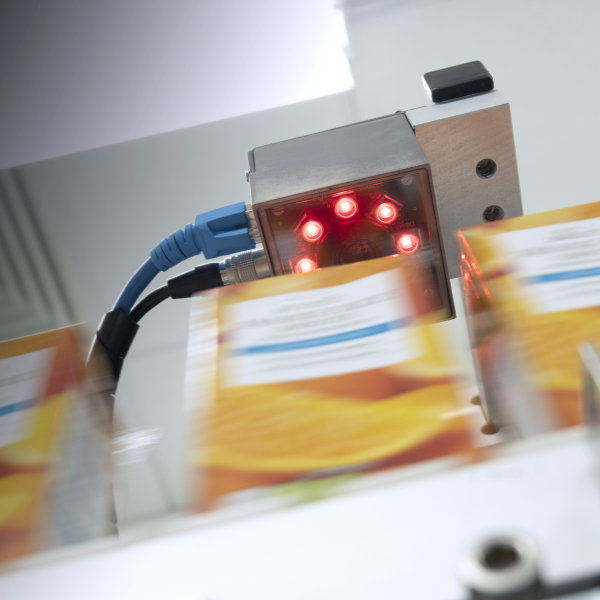

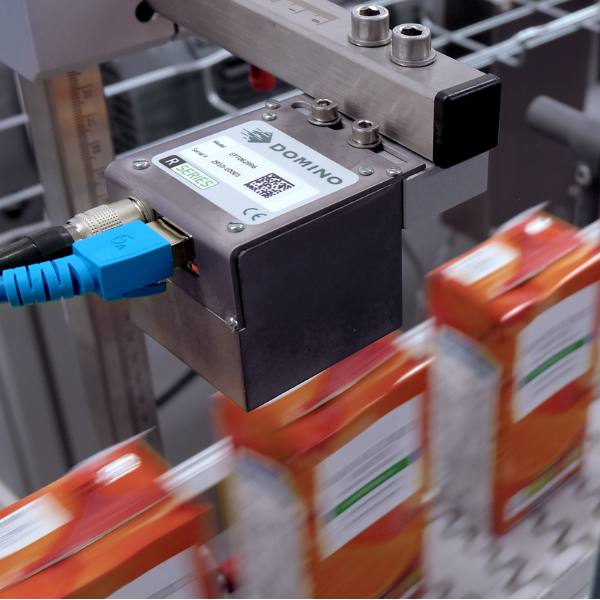

What are industrial vision systems for?
Vision systems automatically check the presence, position, legibility and correctness of the codes printed on products.
What errors do vision systems detect?
They detect missing, illegible or incorrectly positioned codes, and codes whose content does not comply, preventing production errors.
Can vision systems be integrated into existing lines?
Yes, vision systems integrate easily even into automated, high-speed production lines.
Why install a vision system for coding quality control?
Because it prevents downtime, waste and batch recalls caused by incorrect or illegible codes, and ensures compliance with regulations and large-retail guidelines. Vision systems are used above all in the food, beverage, cosmetics and pharmaceutical sectors, where coding control is essential.
