Brother TJ-4522TN Label Printer


High-speed industrial printer with integrated rewinder

The Brother TJ-4522TN is a powerful industrial label printer built for extensive workloads. With printing speeds reaching 305 mm/sec and support for 600 m thermal ribbons, it ensures efficient and continuous operation. The built-in rewinder together with the color touchscreen enhances usability in intensive workflows. Offering USB, Ethernet, RS-232, plus optional Wi-Fi/Bluetooth, it is compatible with multiple printer languages such as ZPL II, EPL2, and DPL. Designed for pallets, cartons, glass, metals, plastics, cardboard and suitable for both 1D and 2D barcodes.

Why choose Brother TJ-4522TN

Touchscreen icon

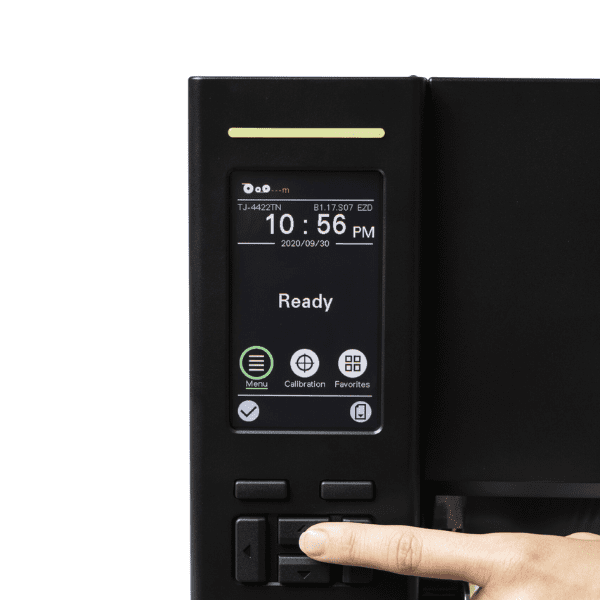

Color touchscreen
Simple-to-use color display designed for quick management in fast-paced environments.

High-speed printing icon
High-speed printing
Reaches 305 mm/sec – perfect for heavy-duty production and thousands of labels daily.

Connectivity icon
Versatile connectivity
USB, serial, Ethernet, with optional Wi-Fi/Bluetooth; supports ZPL II, EPL2, DPL.

Technical specifications

Max label width 114 mm
Ribbon length 600 m
Max print width 104 mm
Max print length 11,430 mm
Print speed 305 mm/sec (12 ips)
Resolution 300 dpi
Technology Thermal transfer / Direct thermal
Barcode support 1D: Code128, EAN, ITF14, Code39, etc.
2D: QR Code, PDF417, GS1 DataMatrix, AZTEC, etc.

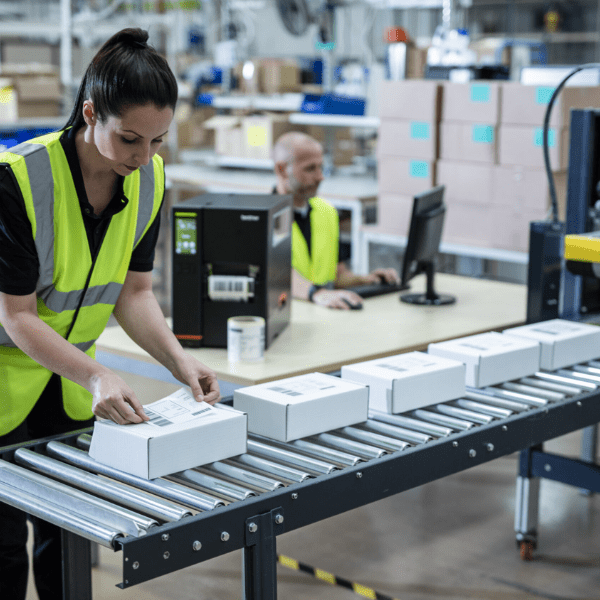

Media compatibility Pallets, boxes, cardboard, glass, plastic, metal
Software Bartender Ultra Lite Edition
Dimensions (W x H x D) 276 × 412 × 502 mm
Weight 18.9 kg
