Domino Ax550i Continuous Inkjet Industrial Printer
Domino Ax550i: Tough Production Conditions Are No Challenge Anymore
The Domino Ax550i continuous inkjet industrial printer is ideal for operating in the harshest production settings. Its sturdy 316 stainless steel enclosure with a sealed electronics compartment (IP66) provides full protection against dust, sugar particles, and chemicals, ensuring waterproof performance even during line washdown procedures.
The Domino Ax550i uses inks that are certified and safe: as a EuPIA member, Domino manufactures and supplies inks following the strict standards set by GMP (Good Manufacturing Practices) to comply with legal requirements under various national and international regulations; additionally, all its solvent bases are free from drug precursors, as stipulated by Regulation (EC) No. 1277/2005.
Equipped with advanced technologies, this continuous inkjet industrial printer can produce detailed multi-line prints in high resolution, functioning seamlessly even on the fastest and most productive lines. Its superior coding performance enables MRC code printing and minimises waste when paired with OCR vision systems.
Why Opt for the Domino Ax550i Continuous Inkjet Industrial Printer
Fast and straightforward integration across any production line: the Domino Ax550i is fully compatible with leading communication protocols. It connects seamlessly to company networks and integrates with centralised systems (ERP) to guarantee accurate information on every product.
Designed to handle the everyday requirements of future manufacturing, the Domino Ax550i ensures outstanding levels of quality and safety. This is due not only to its IP66-grade stainless steel casing, but also to its no-maintenance construction and very low operator intervention needs, creating an efficient system that also lowers environmental footprint.
Just like other Domino products, the Ax550i is easy and intuitive to use, allowing for flexible configuration during high-speed serialisation operations. Thanks to its i-Pulse technology, the printhead and inks integrate flawlessly even on the most challenging surfaces, offering a variety of print size options. Each drop is delivered with precision, enabling clear printing of the 9-drop font at the same speed as the 7-drop font. Additionally, all Domino inks comply with stringent industrial packaging standards.
Technical Information
The Domino Ax550i adheres to rigorous compliance standards and is available in more than 100 countries around the globe. Domino printers meet regulatory requirements and are distributed in over 100 countries worldwide. Certifications include CE, NRTL, CB, and FCC 47CFR Part. 15B.

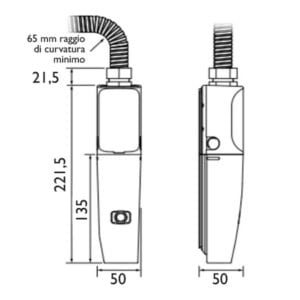

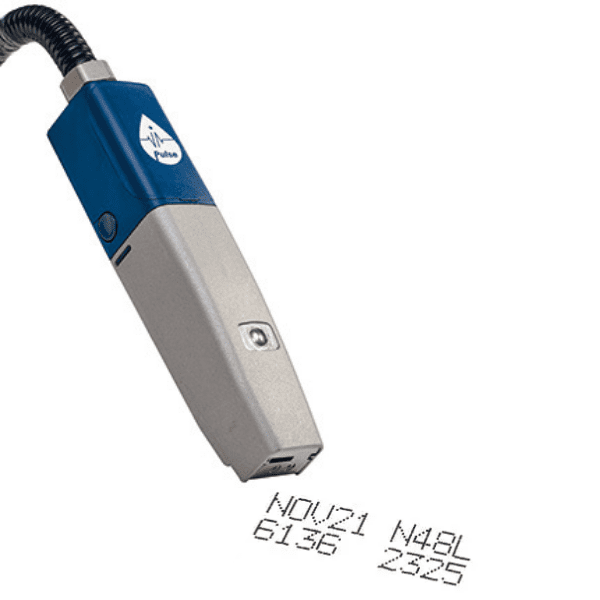

Printhead
| Type | i-Pulse |
| Nozzle Sealing Technology | ✓ |
| Nozzle Sizes | 60 µm – 75 µm – 40 µm – 50 µm |
| Maximum Resolution (DPI) | 82 – 64 – 110 – 98 |
| Formats | Straight, H90 e V90 – Straight, H90 e V90, Straight, Straight |
| Conduit Length | 3 m Standard – 6 m Optional |
| Minimum Conduit Bend Radius | 65 mm |

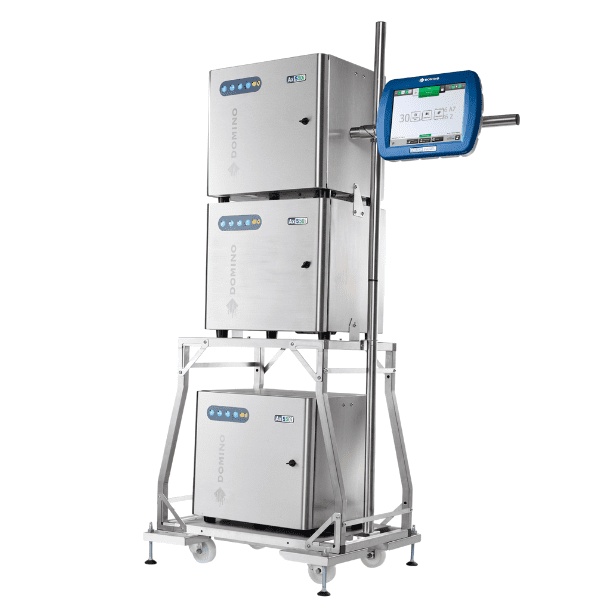

Cabinet
| Type | 316 Stainless Steel Cabinet |

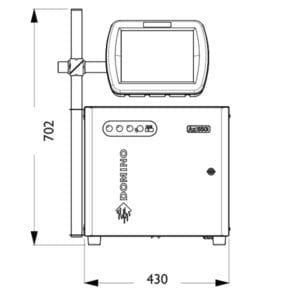

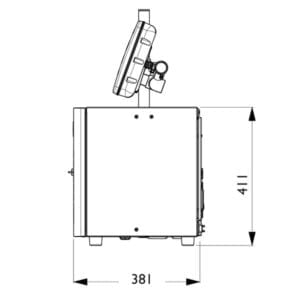

| Dimensions (WxHxD) | 430 x 411 x 381 (mm) |
| Dry Weight | 22 kg |
| Power Supply | 100-240 v : 4 A 50-60 Hz |
| Power Consumption | 40 Watt (Idle); 80 Watt (Printing) |

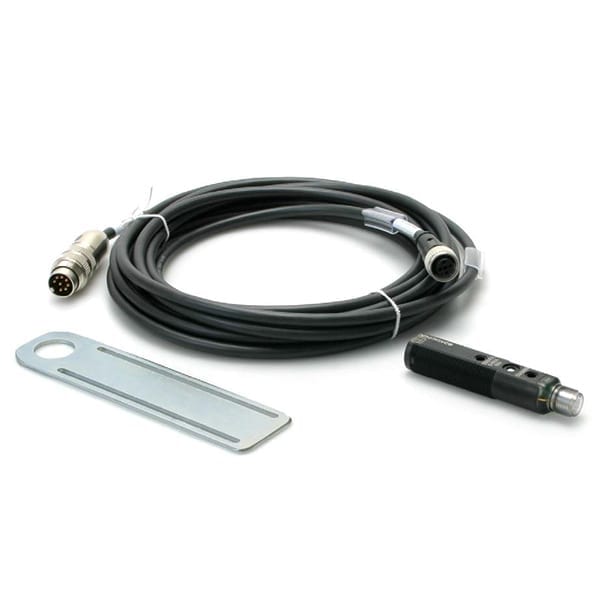

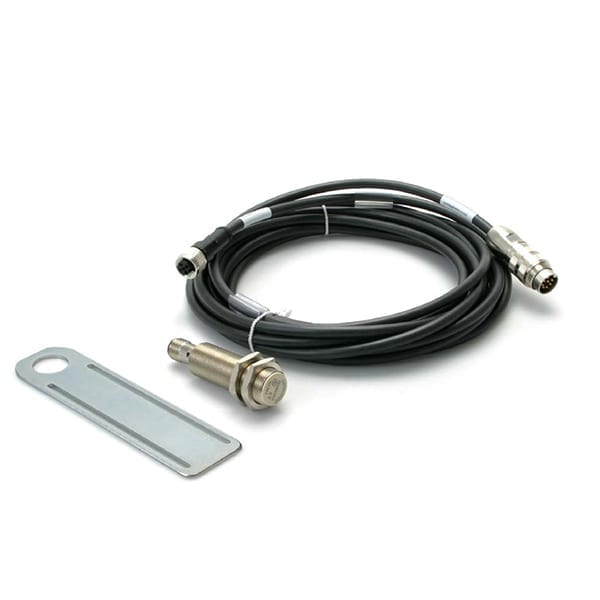

| Product Detection Input (x1) | ✓ |
| Encoder Input (x1) | ✓ |
| USB Ports on UI (x2) | ✓ |
| RFID | 13,56 MHz 1,3 uW ERP |

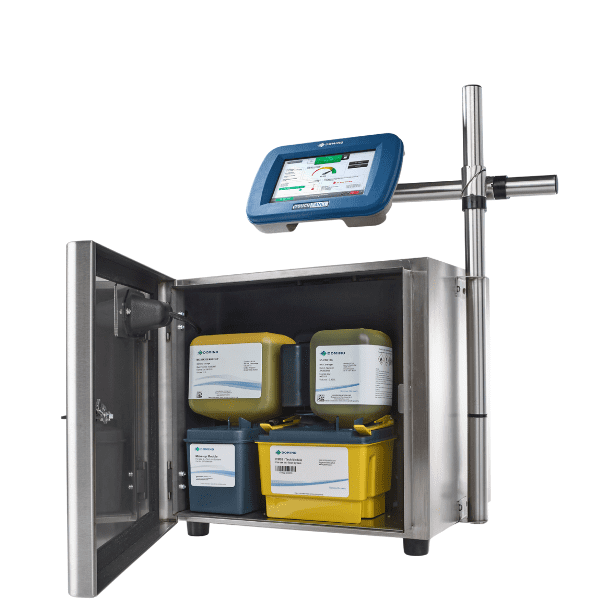

Inks
| Ink Cartridge Capacity | 825 ml – 55 mm (Heavy Duty Ink System) |
| Make-Up Cartridge Capacity | 1,200 ml |
Connectivity
| Domino Protocols | Intercomm 5, Codenet, Intercomm 0 |
| PC Software Package | QuickDesign V5 & V6 Compatible |
| Webserver | ✓ |
| Domino Cloud Compatible* | ✓ |
* Requires Optional Communication Package
Operation
| User Interface | 7″ Color Touchscreen (Optional) – 10.4″ Color Touchscreen (Optional) |
| Software | QuickStep 3 |
| Operator-Friendly | ✓ |
| One-Touch Start/Stop | ✓ |
Consumables
| Automatic Cartridge Recognition | ✓ |
| Intelligent Level Monitoring | ✓ |
| Make-Up Cartridge Lifespan** | 267 Hours |
| Cartridge Replacement | Operator Task – Requires 20 Seconds – No Line Stoppage |
Maintenance
| Maintenance Type | Maintenance-Free – ITM System |
| ITM Replacement Frequency° | 12 Months |
| ITM Replacement | Operator Task – Requires Less Than 10 Minutes of Line Stoppage |
Environment
| Operating Temperature° | 5-45°C |
| Humidity | 0-90% RH |
| Protection Rating (Cabinet) | IP66 Electrical Compartment (IP55 Cabinet) |
| Options for Harsh Environments | IP65 Printhead Cover (for Washing) – Positive Air on Printhead (for Dusty Environments) – Dryer (for Humid Environments) |
* Speed, height, and number of lines declared using the Raster Extension Package.
** Make-Up Cartridge Replacement Frequency with MEK-Based Ink at 21°C.
^ The drop size may vary depending on the surface.
° Depending on the type of ink.
Speed (m/s)*
| 1 Line – 5-Drop Characters (Fastest) | Std DPI 7,2 – Max DPI 5,2 |
| 2 Lines – 7-Drop Characters | Std DPI 2,0 – Max DPI 1,5 |
| 2 Lines – 9-Drop Characters (High Quality) | Std DPI 1,3 – Max DPI 1,0 |
| 1 Line – 24-Drop Characters (Ideal for 2D) | Std DPI 0,7 – Max DPI 0,5 |
Dimensions
| Maximum Number of Lines | 5 |
| Print Height* | (in Drops):* Up to 32 Drops |
| Print Height* | (in Drops):* Up to 20 mm |
| Deposited Drop Size^ | 0,31 mm (60 μm) 0,40 mm (75 μm) |
Code Format
| Text | Full Unicode Support |
| Graphics | .bmp Import, Integrated Logo Editor |
| 1D Barcode | EAN 8, EAN 13, UPC A, UPC E, Code 39, Code 93, Code 128, Code 2 di 5, ITF-14, GS1-128 |
| 2D Barcode | Datamatrix, QR Code, Dot Code, Han Xin, Postnet |
*(Speed and height declared using the Raster Extension Package)
Hardware Packages
Option Printer Status Package

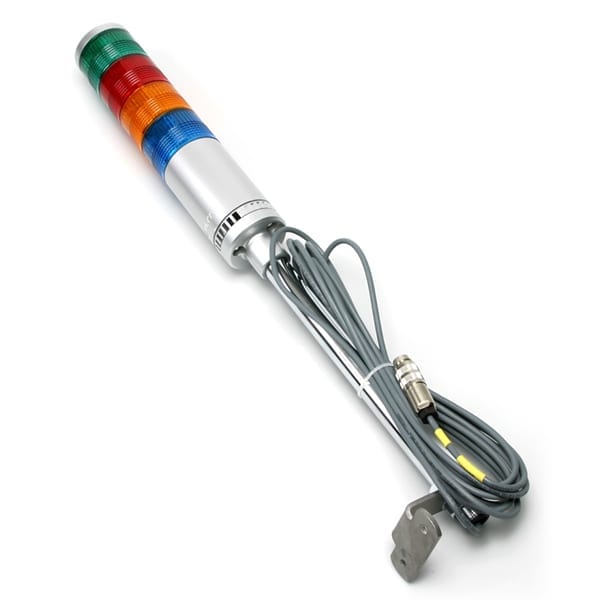

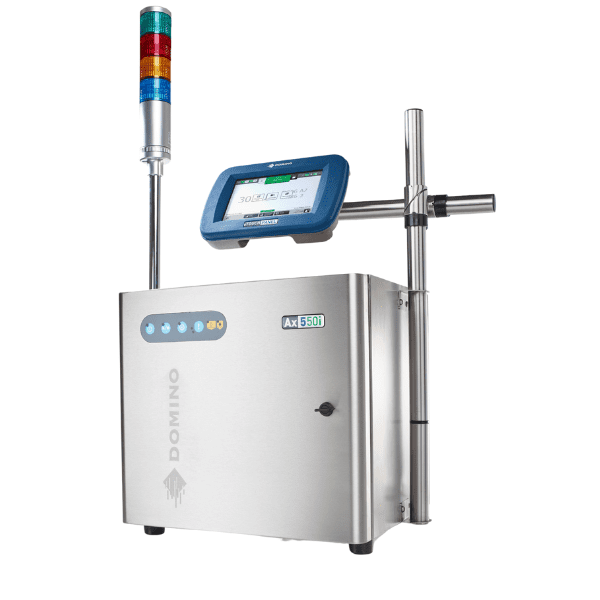

4-Color Tower Light Output (x1)
4 Printer Status Clean Contact Outputs (x1)
Option Communication Package
USB Port on Cabinet (x1)
Ethernet RJ45 Port (x1)
Option Extended Communication Package
USB Port on Cabinet (x1)
Remote Control Port (x1)
Ethernet RJ45 / Touchpanel 2 Port (x1)
Option RS232 Package
RS232 Port (x1)
Option GPIO Package
4 Inputs / 4 Outputs (x1)
Option Extended I/O Package
2 Inputs / 4 Outputs (x1)
Option Professional Printing Package
High-Speed Raster (ST&HS Type) – Segmented High-Speed DDI Message Format – Script Creation
Option Operator Assistance Package
Label Templates – Barcode Scanning for Text Input in Message – Access Management
Option: Peltier Package
20% Reduction in Make-Up Consumption – Programmable Auto-Shutdown of Printhead and Ink System to Reduce Consumption
