Domino Dx1060i Industrial CO₂ Laser Coder – 100 Watt


Domino Dx1060i: 100 Watt Laser System for Ultra-Fast Coding

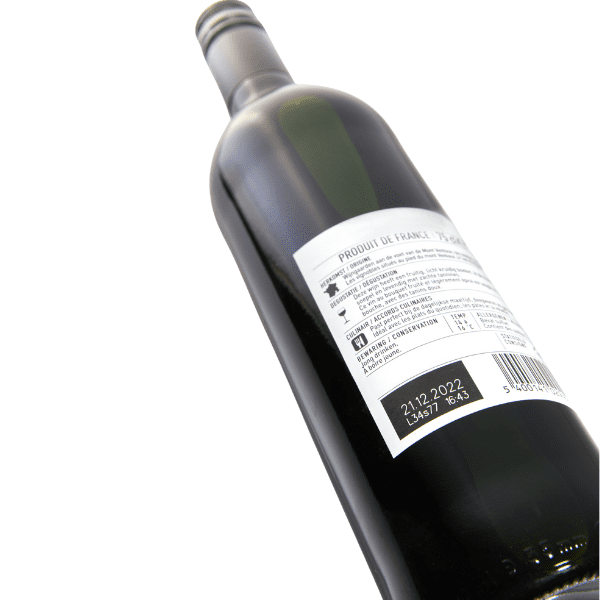

Domino Dx1060i is a high-performance 100 Watt CO₂ laser coder developed to deliver consistent, reliable marking even in heavy-duty production conditions. Its powerful laser source ensures clean, permanent codes on materials including PET, HDPE, glass, paper, and complex multi-layer packaging, guaranteeing stability on fast-moving lines. This makes it a strong choice for operations with demanding throughput, where traceability and product identification must remain uncompromised.

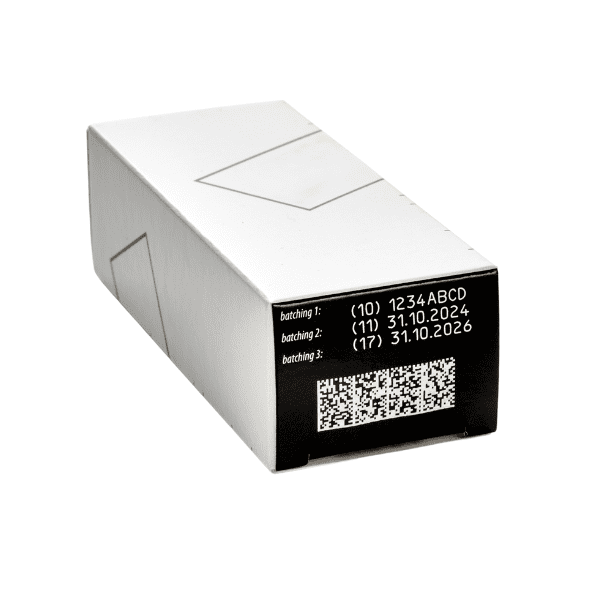

The system uses advanced beam control technology designed to boost marking throughput by as much as 30% over earlier generations, while maintaining consistent results on any supported substrate. Full compatibility with variable data, 1D and 2D codes, plus GS1 global standards, enables complete serialisation and synchronised coding with NTP time alignment for applications requiring strict precision.

The coder is built to operate reliably in aggressive industrial environments: the marking head can be supplied with IP54 or IP65 protection, while the controller features an IP55 rating—ideal for dusty, humid, or wash-down areas. It remains fully operational at temperatures up to 45°C, ensuring stable productivity on high-intensity production lines.

Its extended laser tube lifetime and intelligent diagnostics mean the Dx1060i keeps maintenance requirements extremely low.

Why Choose the Domino Dx1060i Industrial CO₂ Laser Coder

high-speed laser performance icon
100 Watt CO₂ Laser for Fast Lines
High-energy marking delivers crisp, permanent codes even on substrates that are traditionally difficult to laser mark.

integration flexibility icon
Enhanced Integration Capabilities
Choose from over 50 optical setups, a 360° rotatable scan head, and seamless connection with ERP, MES, and key industrial networks.

service and monitoring icon
Preventive Monitoring and Minimal Servicing
Cloud monitoring, automated coding logic, and stable performance even in high-temperature environments up to 45°C.

Technical Information

Laser 100 Watt CO₂
Laser technology CO₂, wavelengths 9.3 μm, 10.2 μm, 10.6 μm
Expected lifetime 50,000 hours MTBF

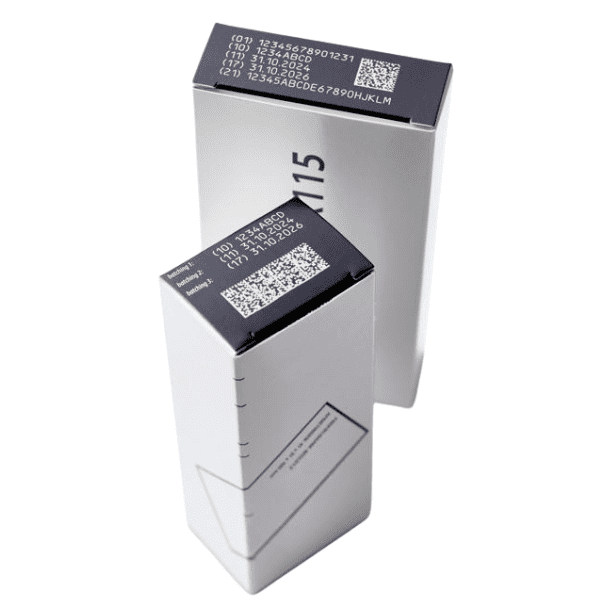

Supported content High-speed optimised fonts, 1D/2D codes (GS1, DataMatrix, QR), graphics, logos, variable data, serialisation
GS1 support GS1 Digital Link and GS1 traceability standards
Focal lengths From 80 mm to 600 mm
Marking field From 57×57 mm to 379×582 mm

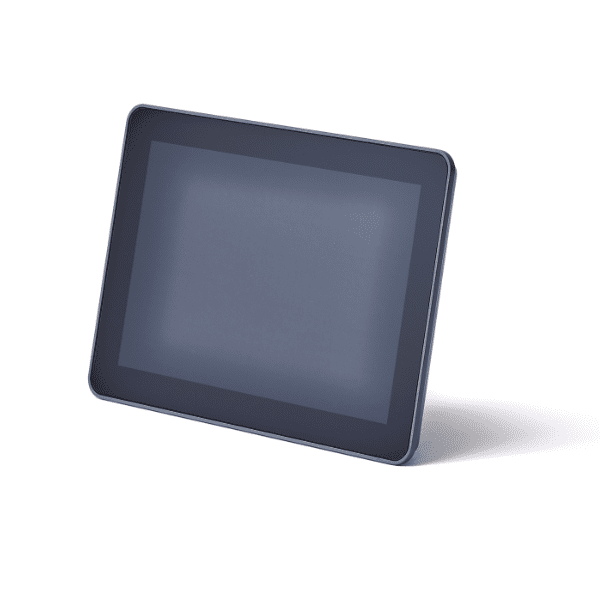

User interface Web-based interface; optional 10.1’’ touch panel
Head orientation 360° rotatable head with more than 50 optical configurations

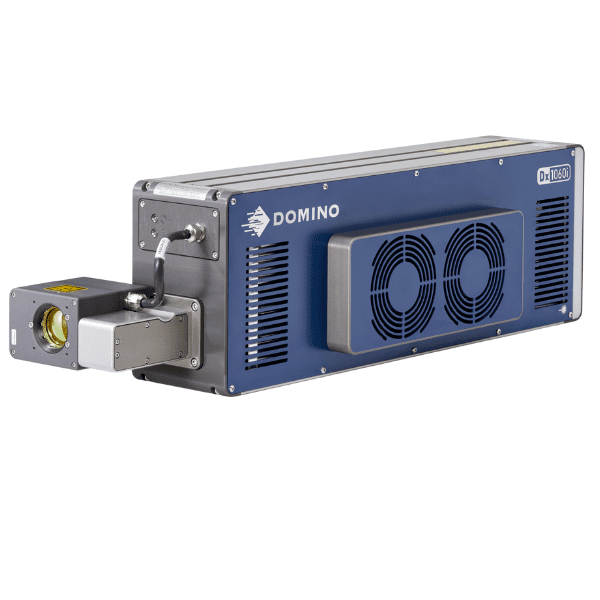

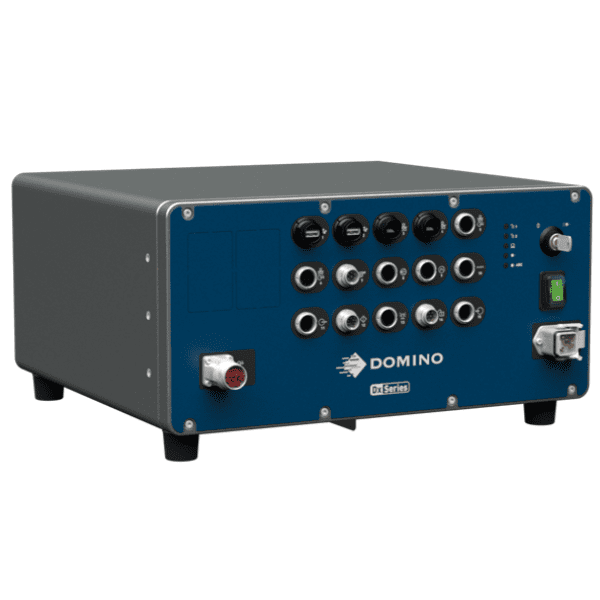

IP rating Laser IP54 (optional IP65), controller IP55
Operating temperature 5°C – 45°C
Operating humidity Max 90% RH non-condensing
Power supply 90–264 V, 50/60 Hz

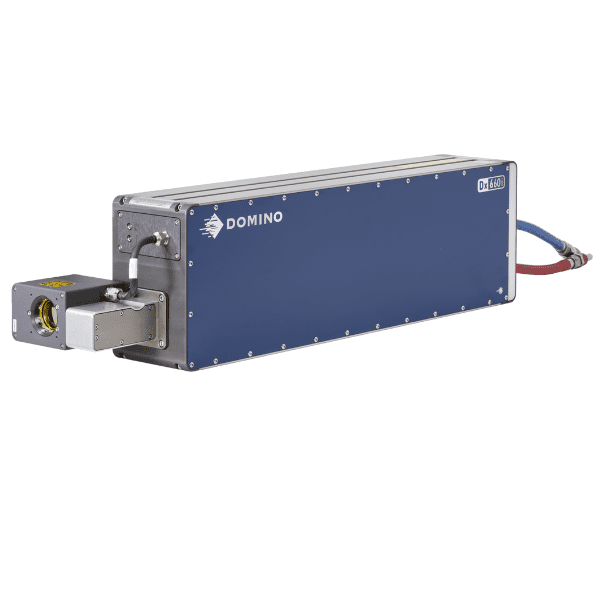

Inputs/outputs Inputs/outputs for extraction, compressed air, chiller, encoder, product detection, beacon, interlock, GPIO
Interfaces and protocols Ethernet, USB, RS-232, EtherNet/IP™, EDC, Dynamark Protocol
Software features Automation, Domino Cloud, advanced security, external data capture
Accessories Extraction systems, airknife, mounts, brackets, cabling, dedicated optics

dx1060i-technical-drawings
