Domino Gx350i Thermal Inkjet Printer
Domino Gx350i: High-Definition Industrial Coding
The Domino Gx350i thermal inkjet printer is expertly designed for complex multi-head operations and rapid data management, making it the perfect solution for highly demanding production environments across numerous sectors.

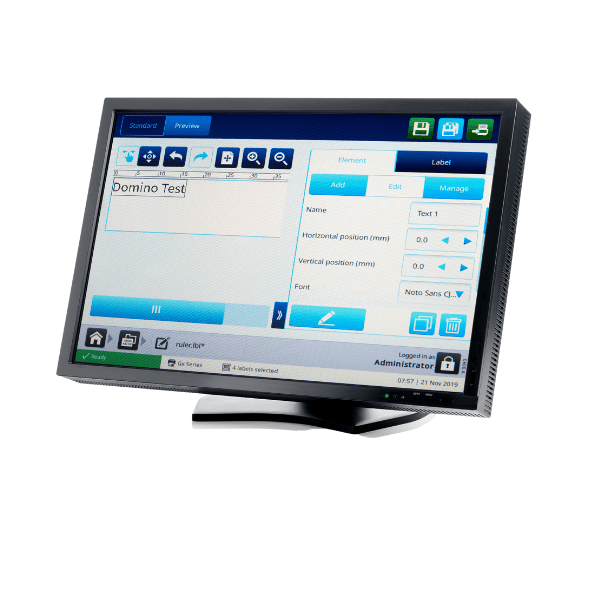

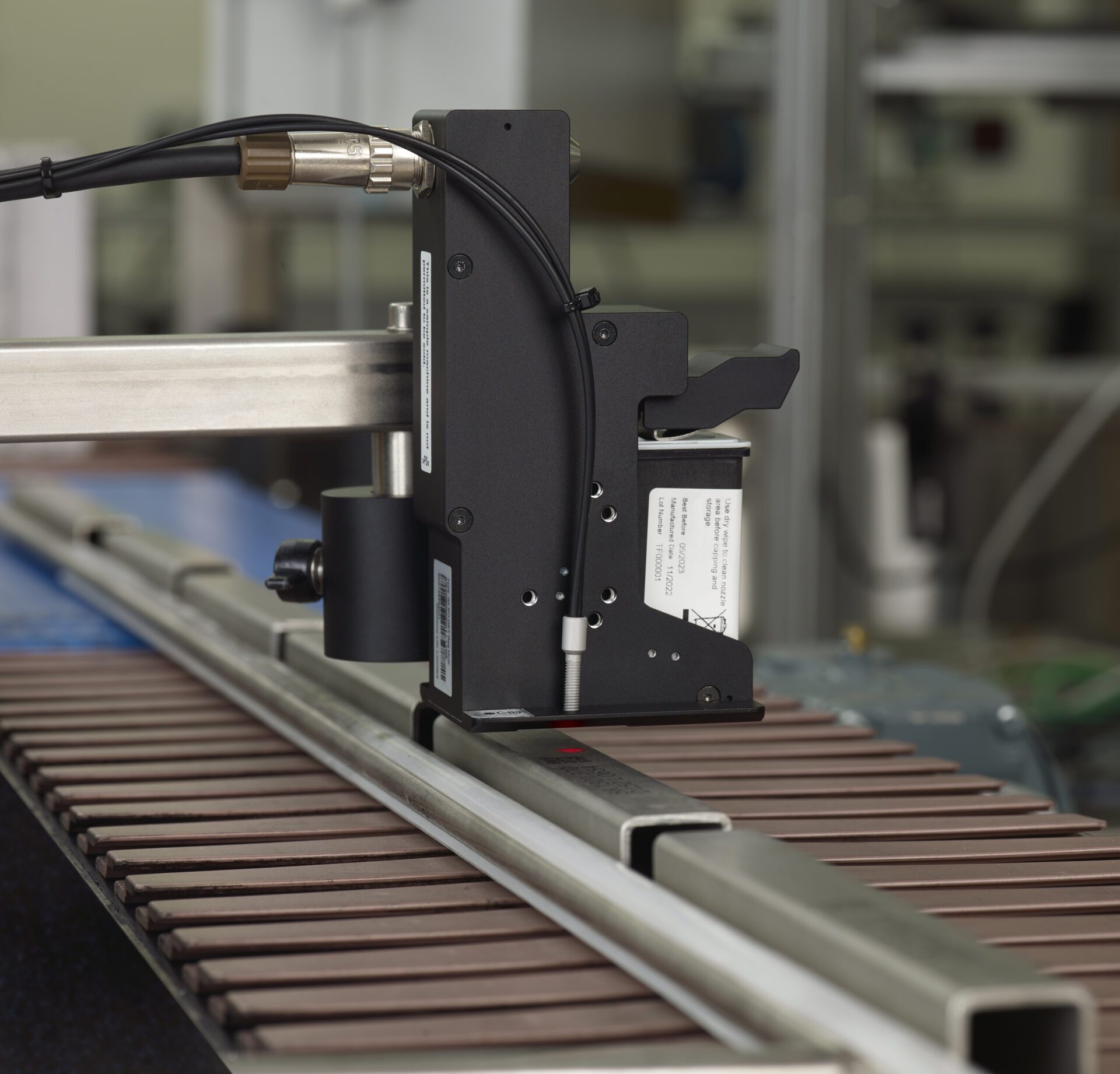

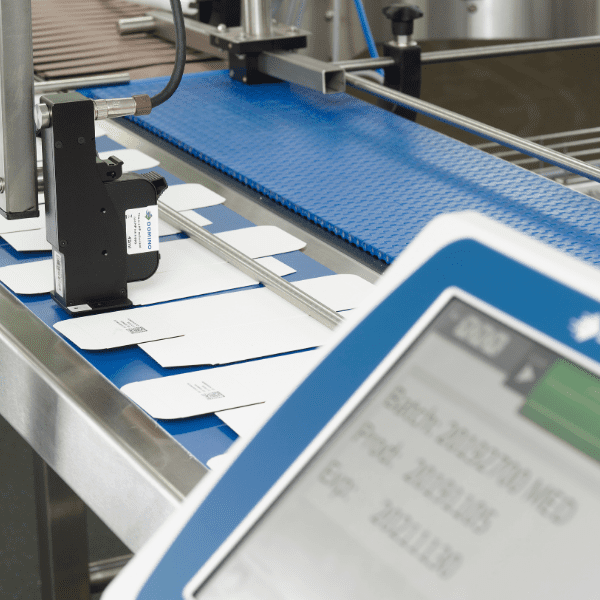

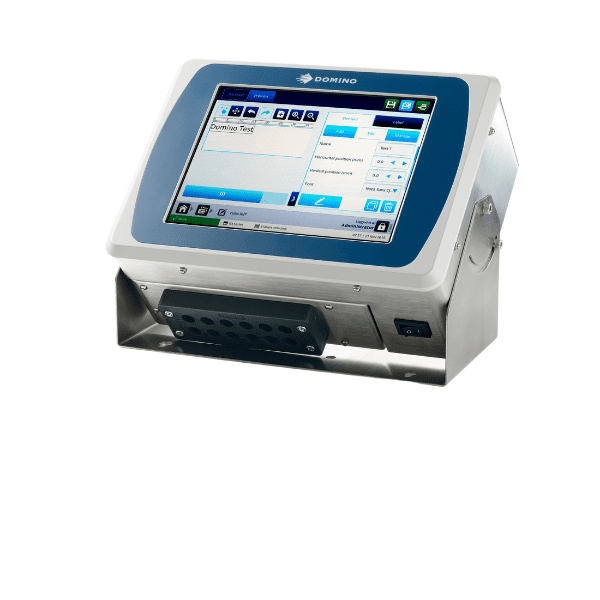

The streamlined printheads are built for straightforward integration on any manufacturing line and can be set up as far as 25 meters away from the IP64 controller. With a 10-inch touchscreen and a user-centric interface, the system guarantees mistake-free functionality and supports direct data input on the machine.
The Domino Gx350i Thermal Inkjet Series is engineered for space-saving installation—the unit measures just 5.2 × 5.09 × 2.85 cm. You can select from three connector positions (front, rear, and top), while LED indicators always show the printer’s current operational state, such as cartridge replacement requirements. There’s zero maintenance needed—replacing the ink cartridge also refreshes all other wearable parts. This printer offers consistently reliable coding, thanks to fully automated ink settings.

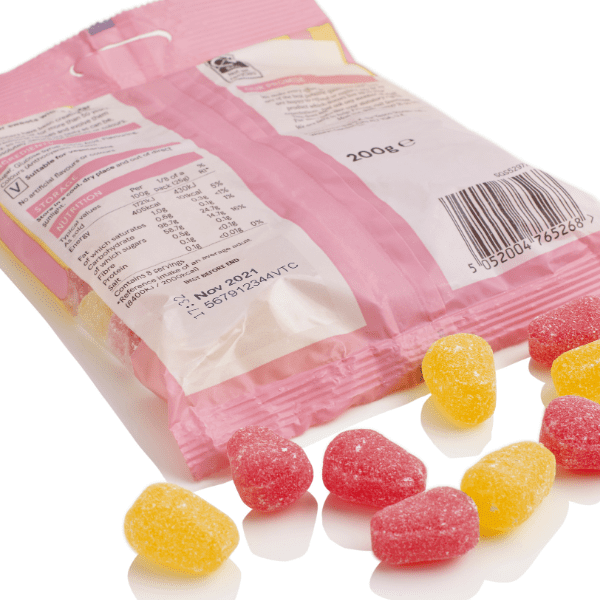

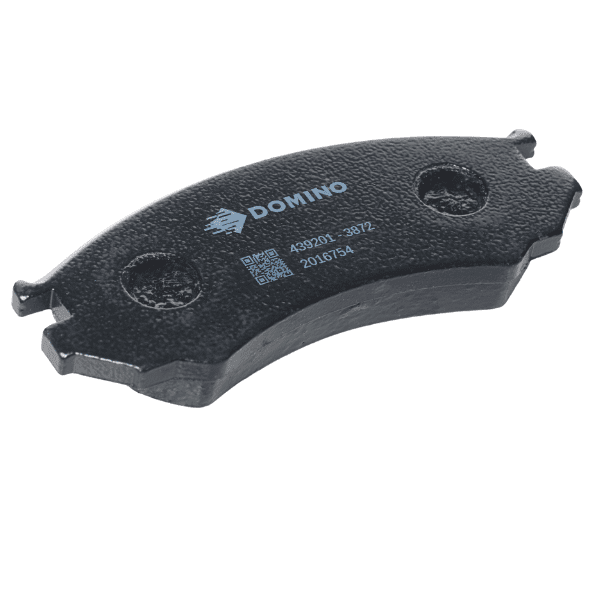

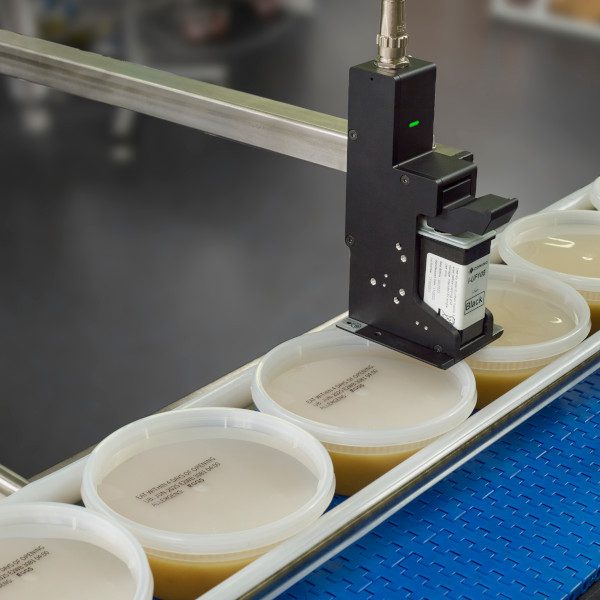

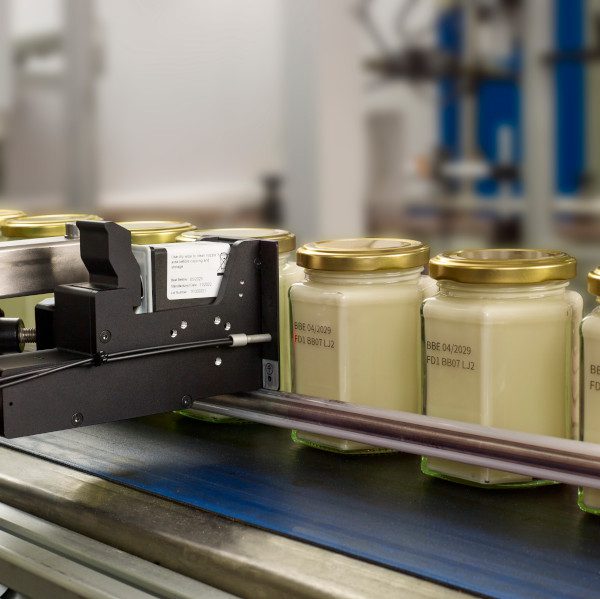

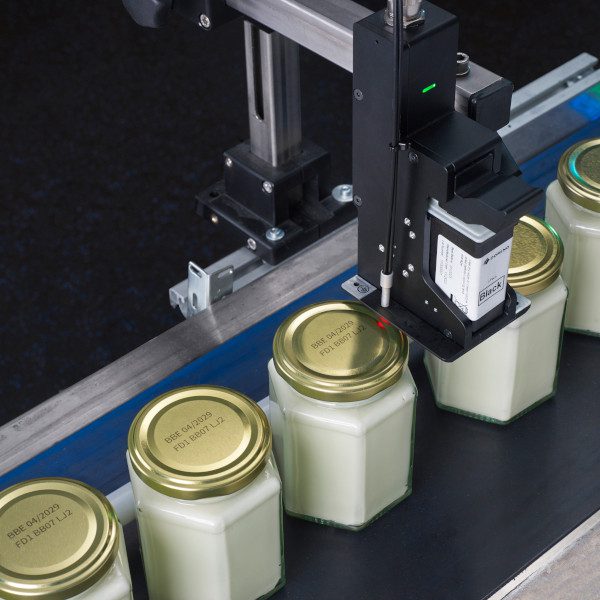

Most importantly, the Domino thermal inkjet printer delivers exceptional clarity and precision, producing sharp graphics and codes on paper, cardboard, plastic, metal, and many other substrates. It’s flexible in label creation, allowing you to easily add text, counters, date/time, graphics, logos, and barcodes on every print.
Why Choose the Domino Gx350i Thermal Inkjet Printer?
Thanks to its state-of-the-art features and integrated solutions, the Domino Gx350i printer ensures top-level results in different manufacturing sectors, including those with difficult production settings. Additionally, it’s extremely intuitive, works smartly, and gives you touchscreen monitoring with the QuickStep interface or web browser access from the user panel.

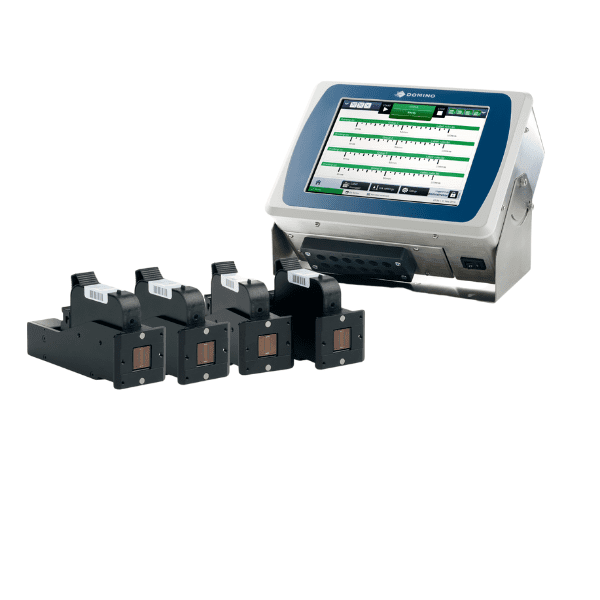

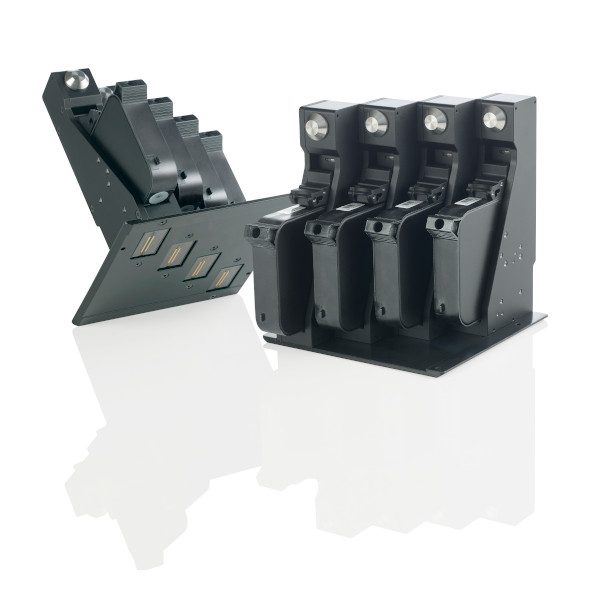

The Gx350i range lets a single controller handle up to four printheads, supporting print heights up to 104.3 mm. You can also manage customized prints or operate across multiple production lines.
Optimized efficiency comes from automatic cartridge detection and auto ink parameter adjustment. The AutoSwap system allows for seamless cartridge swaps without halting your processes.
The Gx350i Series printheads provide a large variety of interfaces, such as direct printer access, PC connectivity, or the Domino Cloud Dashboard.
Status monitoring panels supply real-time printer updates, while Domino Cloud integration enables remote status checks and troubleshooting for greater control over your operations.
Variants

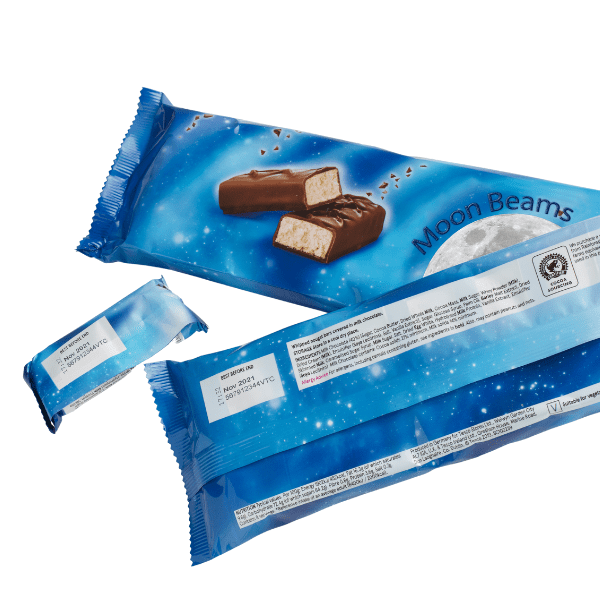

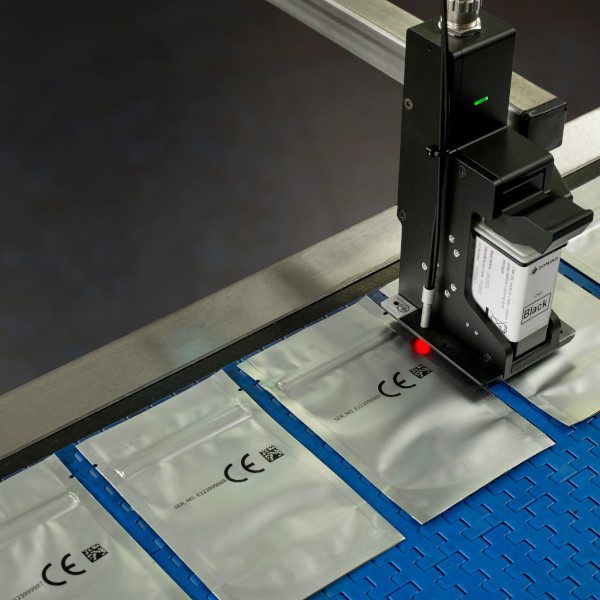

The Domino Gx Series thermal inkjet models are available with EXT and OPT printhead alternatives. These versions boost sealing efficiency on many different surfaces, particularly non-porous, recyclable thin-film PP/PE materials, making it simple to mark products with uneven shapes.
The EXT and OPT printheads represent the perfect choice for those who want to print marks over 12.7 mm in height with no stitching issues, even using several printheads together.
Technical Information
The Domino printers meet regulatory standards and are distributed in more than 100 nations. Certified with CE, NRTL, CB, and FCC 47CFR Part. 15B.
| Controller Dimensions | Height: 123.9 mm / Depth: 322.4 mm / Width: 250.7 mm / Weight: 6.4 kg |
| Printhead Dimensions | Height: 152 mm / Depth: 50.9 mm / Width: 28.5 mm / Weight: 0.22 kg |
| Printhead Cable Length | 3, 6, 12, or 25 m – 1.5 m variant available |
| Printheads Controller | Up to 4 printheads for greater message height or single prints on 4 different line positions |
| Print Height | 1 printhead: up to 26.1 mm / 2 printheads: up to 52.2 mm / 3 printheads: up to 78.2 mm / 4 printheads: up to 104.3 mm |
| Print Speed and Resolution | 300 m/min at 60 dpi / 30 m/min at 600 dpi |
| Connection Options | 2 encoders, I/O for alarms, photocells or other, 2 USB (type A), RS232C, 2x LAN |
| Electrical Connector | 3-pin connector |
| Power Connector | 100-240 V AC, 50-60 Hz, 3,5 A |
| Operating Temperature | 0° – 45°C |
| Relative Humidity | 20 – 80% RH (non-condensing, 10°C increase per hour) |
| Controller Casing | Stainless Steel |
| Inks | A range of fast-drying water-based and solvent-based inks for porous and non-porous substrates, available in black, colored, and special inks |
| i-Tech Features | Automatic ink cartridge detection, automatic parameter setting, and automatic ink level logging |
| Communication Protocols | Ethernet / Dynamark, EDC (serial, TCP, USB) |
| User Interfaces | QuickStep via 10” touchscreen or operator panel |
