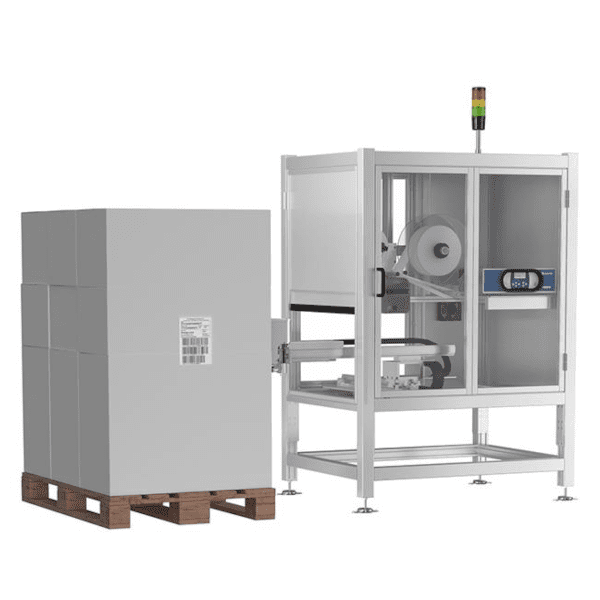

Domino M230i-P150 Pallet Labeller


The Ultimate Solution for Reliable, Safe and High-Efficiency Pallet Labelling

The Domino M230i-P150 pallet labeller is a versatile and fully automated system created for the final step of your production flow: multi-side pallet labelling with multiple labels ensuring maximum readability of all product data.

With its cutting-edge engineering, the M230i-P150 provides labelling on one, two or three pallet sides, offering optimal operator safety and outstanding user-friendliness along the production line.

The protective cabinet is designed for superior resistance even in demanding production areas, extending the lifespan of the Domino M230i-P150 and delivering a durable and efficient pallet labelling solution.

By connecting the pallet labeller to your ERP platforms, you enable complete traceability of your goods throughout the full supply chain.

Furthermore, every Domino M-Series print & apply model includes global technical assistance.

 TECHNICAL INFO   |   ACCESSORIES   |   VIDEO

Why Opt for the Domino M230i-P150 Pallet Labeller?

icona integrazione 2

The Domino M230i-P150 represents a sturdy and high-performing choice, engineered to resist the toughest industrial settings. Its climate-regulated enclosure maintains optimal performance, regardless of dust, moisture, or temperature extremes encountered in production.

icona interconnessioni

By integrating this pallet labeller with your ERP software, you enable seamless product tracking at every point in your supply chain. The enclosure’s built-in safety sensors also shield personnel from moving components.

icona raggiungimento obbiettivi

Every pallet can be customized for number and position of labels, ensuring the highest precision for safe and efficient pallet identification over the long term.

Technical Information

Number of Labels per Product 1-3
Product Movement Static
Contact with Product Yes

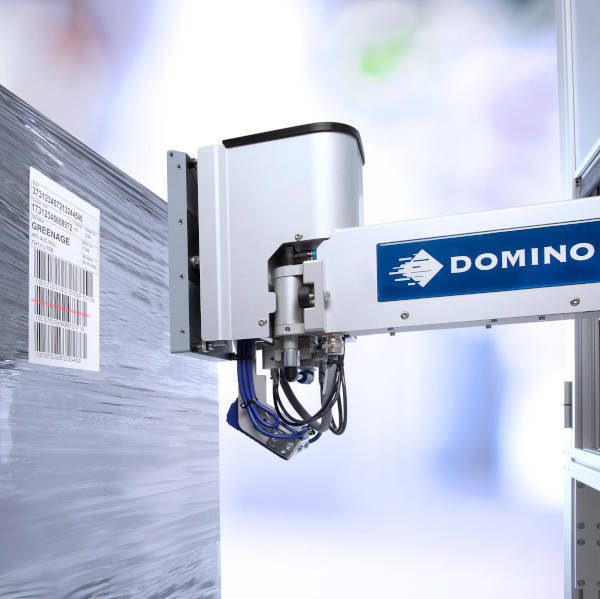

Printing Module Tamp Pad
Pad Dimensions (Width x Length) 150×210 mm
Recommended Label Width 60-150 mm
Recommended Label Length 40-210 mm
Label Inspection Optional
Available Stroke Lengths Distance from product: 495 mm / 10-495 mm
Autostop No
Printed and Applied Labels per Minute (Typical) Labels: 150×210 mm / Distance from product: 450 mm / 3×2 labels min
Typical Compressed Air Consumption (per cycle) 9-25 liters
Power Consumption (per cycle at 230V) 225W
Idle Power (230V) 60W

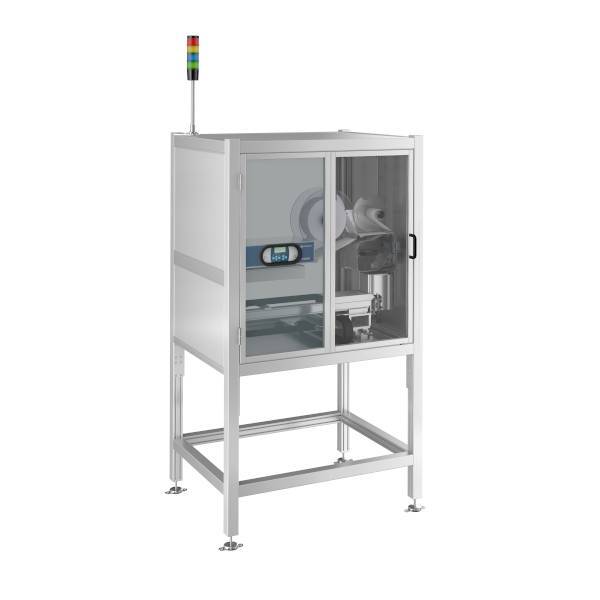

Dimensions (L x H x W) Aluminum 1174x2366x955 mm / Steel: 1195x2087x993 mm

Accessories

The Domino M230i-P150 Pallet Labeller is available with a selection of optional accessories, which can be requested separately:

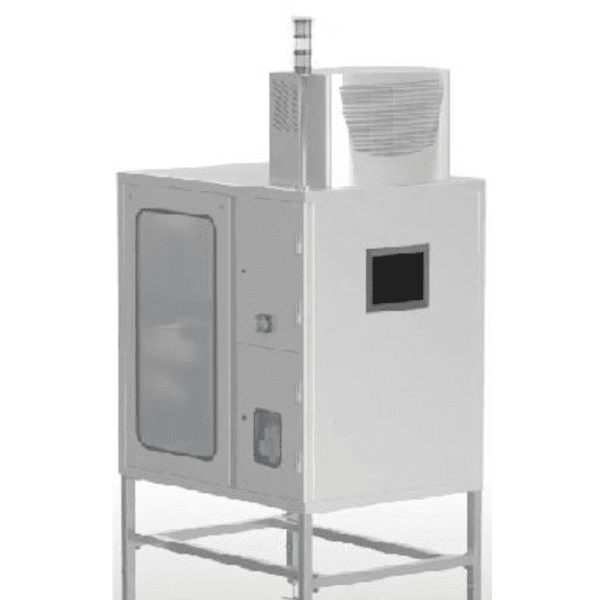

  • TouchPanel

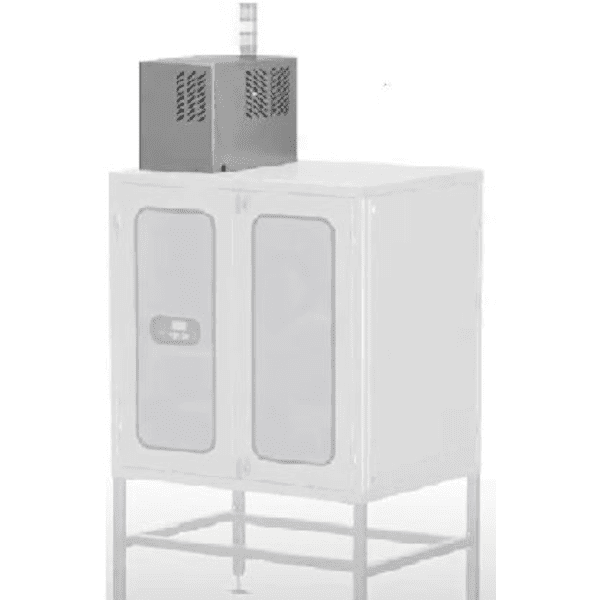

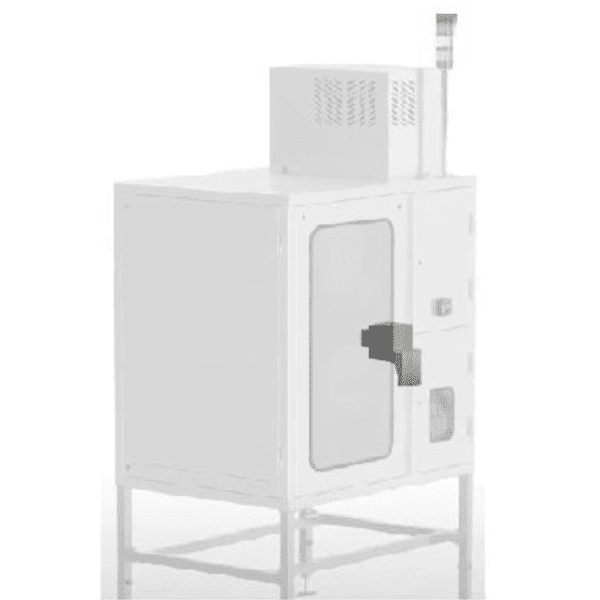

  • Climate Control Kit

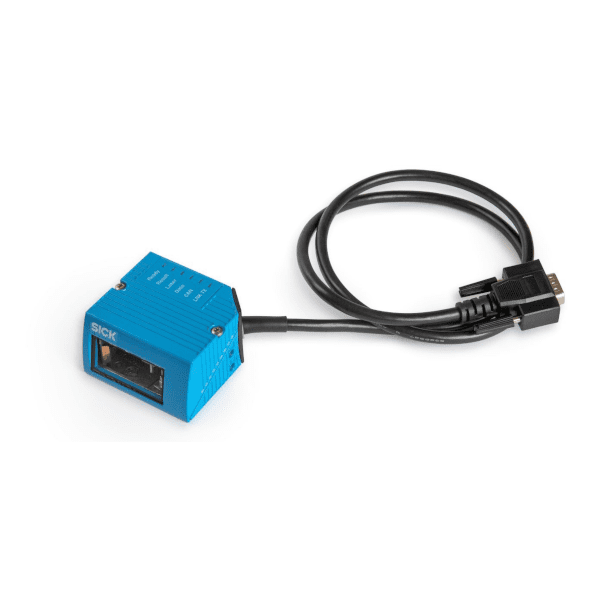

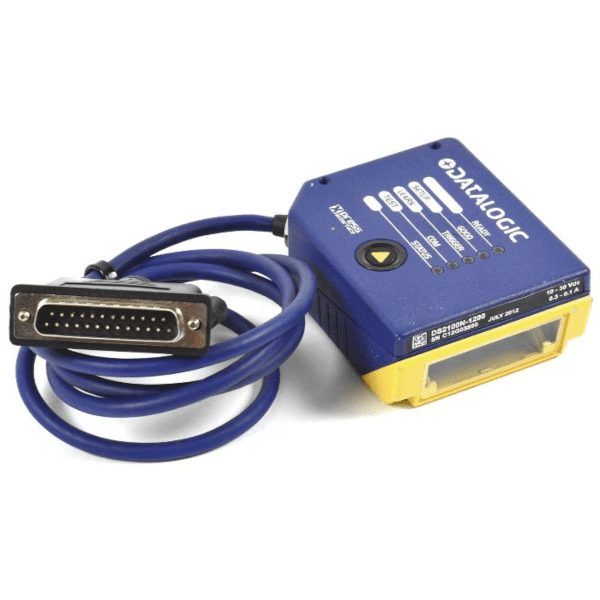

  • Scanner

Video
