Domino Mx350i-DTP Print & Apply Systems


The Ultimate Solution for Manual Label Application

The Domino Mx350i-DTP print & apply system is the perfect choice for workflows where manual label placement offers the greatest efficiency.

Developed to generate labels for cases, cartons, trays, or pallets, the Mx350i-DTP stands out as a durable and dependable solution. It features the same connectivity capabilities and interface as other models in the Mx range, so it can serve as an ideal supplement or backup.

 TECHNICAL INFO   |   VIDEO

Why Select the Domino Mx350i-DTP Print & Apply Solution?

icona tecnico

Smooth Integration with Any System: The advanced connectivity on the Domino Mx350i-DTP system for manual label application enables seamless compatibility with ERP, WMS, and MES environments and all Mx Series units designed for automated labelling.

icona come funziona

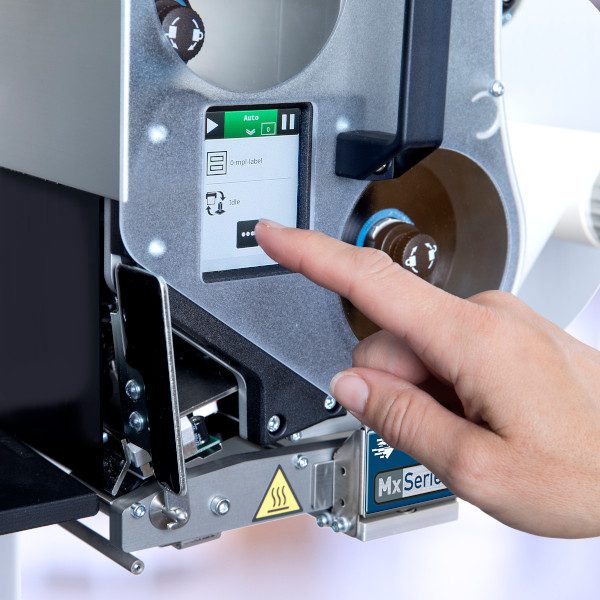

Intuitive User Experience: Featuring a built-in easy-to-navigate interface and an optional 10-inch remote touchscreen, the Domino Mx350i-DTP print & apply system is designed for maximum operational simplicity.

icona integrazione 2

Engineered for Peak Reliability: Its solid build quality and smart design reduce time spent on servicing and changing consumables, supporting continuous production with minimal downtime.

Technical Information

Mx350i-DTP4 Mx350i-DTP6
Print Width 4 inches (108 mm) 6 inches (162 mm)
Printing Technology Thermal Transfer / Direct Thermal Thermal Transfer / Direct Thermal
Print Resolution 12 dots/mm (300 dpi) 12 dots/mm (300 dpi)
Printer Versions Left or Right Left or Right
Max. Print Speed 400 mm/s 400 mm/s
Recommended Label Width 25-110 mm 25-150 mm
Recommended Label Length 15-600 mm 15-600 mm
Label and Ribbon Roll Length Up to 600 m Up to 600 m
Power Supply 90-250VAC 50/60Hz 90-250VAC 50/60Hz
Communication 4x Ethernet TCP/IP, 2x USB-A, 1x USB-B 4x Ethernet TCP/IP, 2x USB-A, 1x USB-B
I/O (Configurable) 12 inputs and 12 outputs 12 inputs and 12 outputs

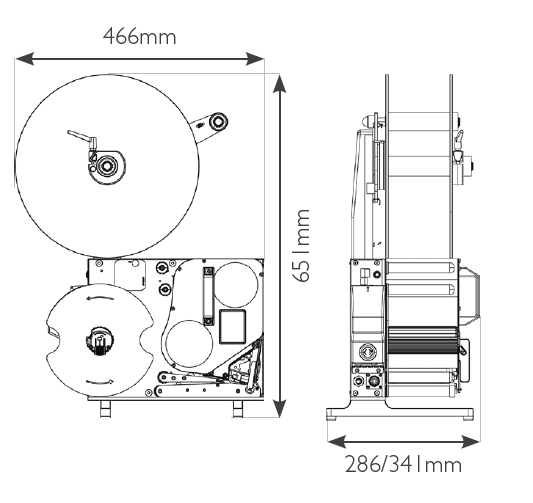

Technical specifications for Domino Mx350i-DTP print & apply system for manual label application

All dimensions are listed in millimeters. Illustration is not to scale and is for reference only.
