Domino Mx351i-eC Print & Apply Systems


Reliable and Energy-Efficient Corner Labelling

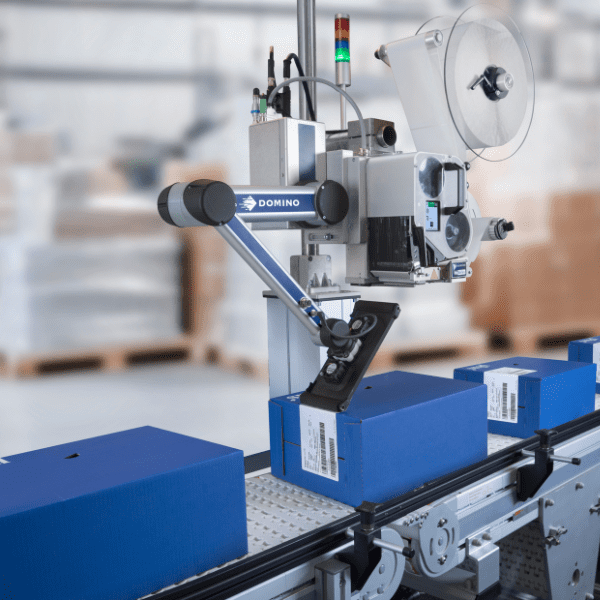

The Domino Mx351i-eC print & apply system establishes a new industry standard for print & apply technology, engineered for straightforward integration into any production environment—spanning sectors from pharmaceuticals to food processing.

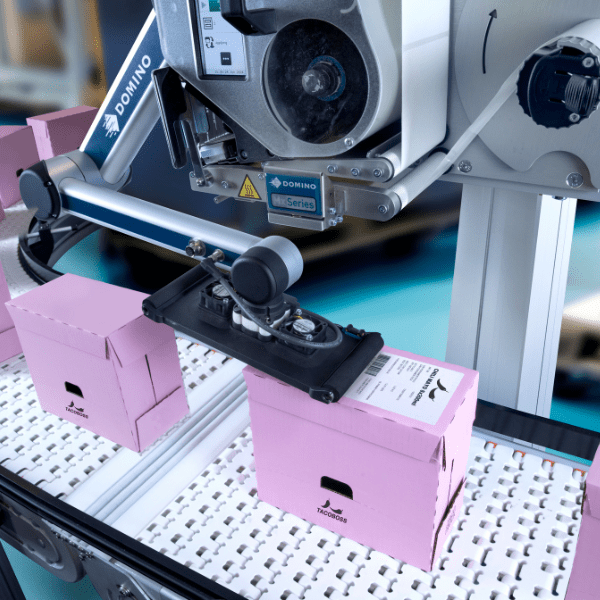

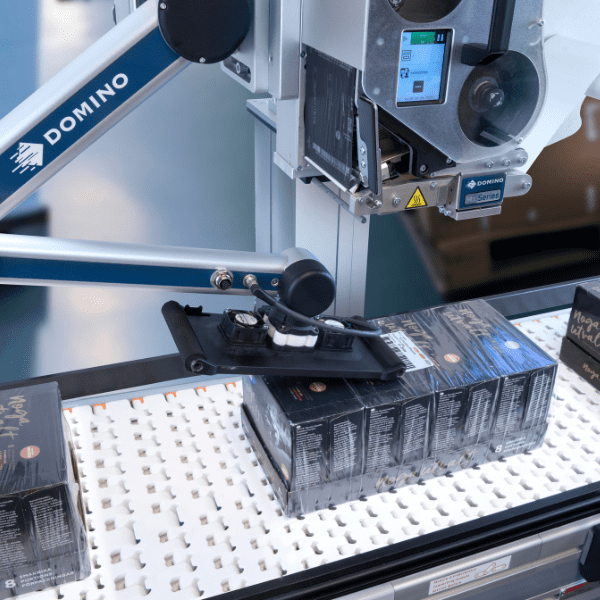

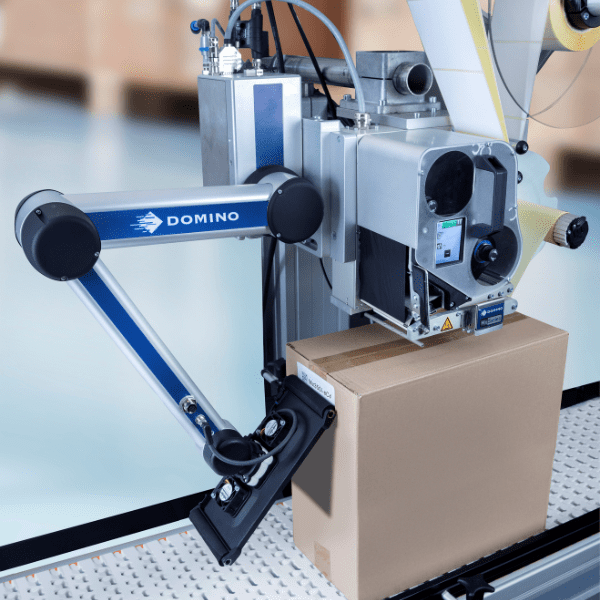

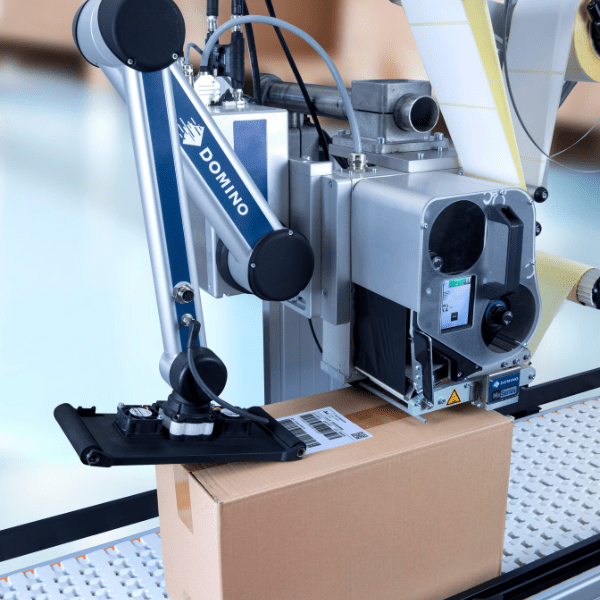

This compact, adaptable system uses an electric arm to accurately apply labels to several surfaces, including corners. It excels at reducing both energy use and compressed air requirements while offering state-of-the-art connectivity features.

With an 80% cut in energy usage and 90% less compressed air needed versus comparable print & apply models, the Domino Mx351i-eC print & apply system fits seamlessly within diverse production lines. Its advanced connectivity makes it easy to link with ERP, WMS, and MES software, streamlining data management and improving productivity.

Why Choose the Domino Mx351i-eC Print & Apply Systems?

icona tecnico

The Domino Mx351i-eC is easy to operate, with an integrated control interface and an optional 10-inch touchscreen for remote use.

icona come funziona

Modern connectivity options ensure seamless integration with ERP, WMS, and MES applications throughout your line.

icona imballaggi secondari

The Domino Mx351i-eC offers unmatched flexibility for multiple uses, easily accommodating evolving labelling needs as your production requirements change.

Technical Info

Model Mx351i-eC.D4
Print width 4-inch (108mm)
Print technology Thermal transfer / Direct thermal
Print resolution 12 dots/mm (300dpi)

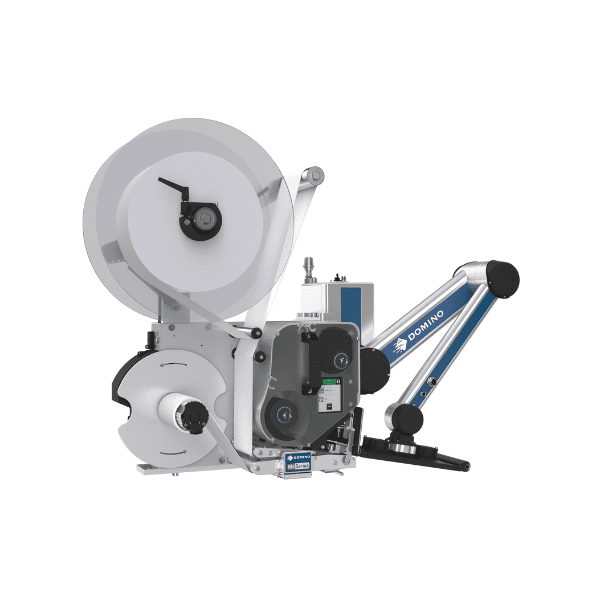

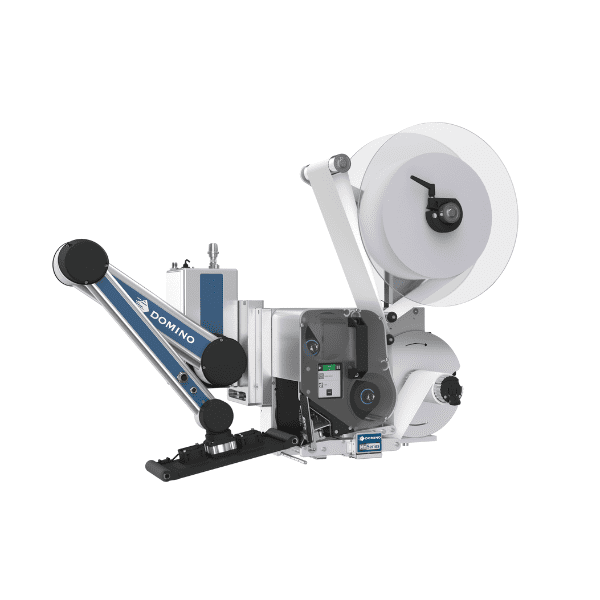

Printer variants Left hand or Right hand
Max print speed 400mm/s
Product motion Stationary

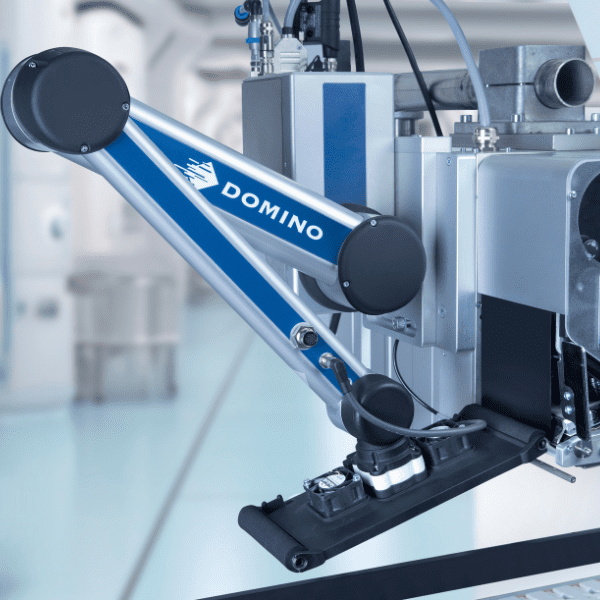

Apply method Wipe by electric arm
Label position(s) lati applicazione etichette
Recommended label width 25-110mm
Recommended label length 50-254mm
Label & ribbon roll length Up to 600m
Input voltage 90-250VAC 50/60Hz
Communication 4x Ethernet, TCP/IP, 2x USB-A, 1x USB-B
I/Os (configurable) 12 inputs and 12 outputs
TouchPanel 6 (optional UI) 10.1-inch touchscreen
Multi-language support

specifiche tecniche mx351i-ec
