Domino R150 Vision System
The Ultimate Solution for Code Verification and Quality Assurance
The Domino R150 vision system delivers precise code inspection by checking presence, positioning, readability, and the content of codes applied to your products.
Considerably more consistent than manual or spot checks, the Domino R150 significantly reduces both waste and recalls caused by coding issues.
By deploying the Domino R150 vision system alongside Domino coding and marking technology, you benefit from a unified provider for all your industrial marking needs, optimizing both time and operational expenses on your line.
Why Select the Domino R150 Vision System?
The Domino R150 vision system is engineered for seamless use with Domino printers, yet also achieves exceptional results when paired with third-party coding systems.

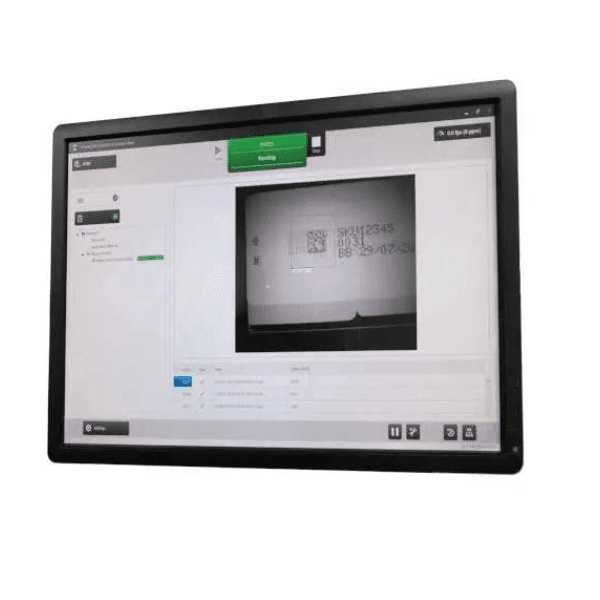

Simple installation requires just a compact footprint. The advanced software ensures quick and straightforward integration into your existing production processes.
With a standard throughput up to 60,000 items per hour (depending on the application), Domino R150 delivers rapid and dependable quality checks.
Technical Information & Variants
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|
| Camera GE-1920IP | |
|---|---|
| Resolution | 1920 x 1080 |
| Max Frame Rate | 52 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

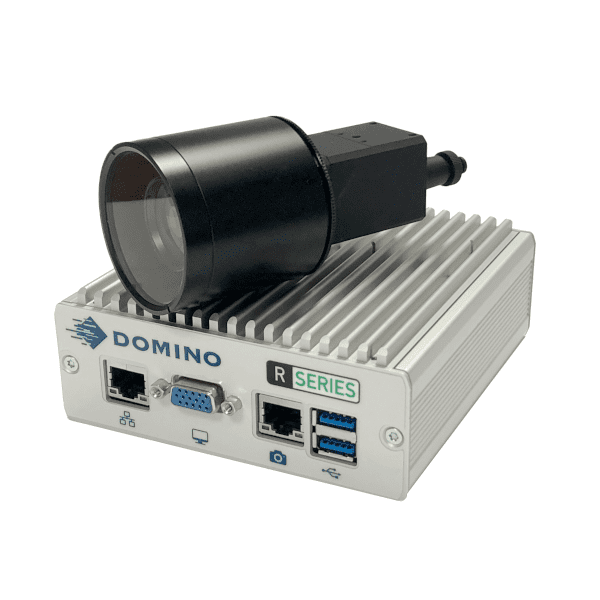

| Camera GE-2448IP | |
|---|---|
| Resolution | 2448 x 2048 |
| Max Frame Rate24 | 24 FPS |
| Field of View | 106 mm x 66 mm @ 150 mm |
| Working Distance | 150 mm |
| Illumination | Not integrated / Requires external light source |
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 29 mm x 29 mm x 45 mm (excluding lenses) |
| Protection Rating | IP67 |
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

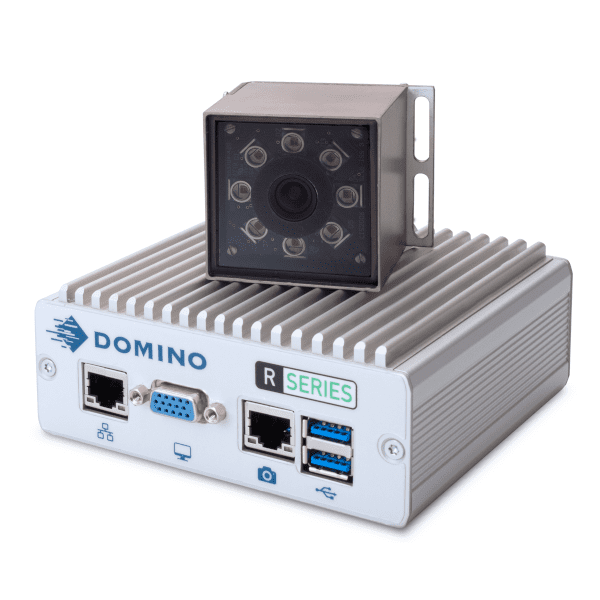

| Camera GR2X-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate24 | 50 FPS |
| Field of View | 70 mm x 55 mm |
| Working Distance | 50 mm |
| Illumination |
|
| Minimum 1D Barcode Size | 0.16 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.30 mm/cell (minimum module size) |
| Minimum OCR Character Height | 1.38 mm |
| Camera Dimensions | 50 mm x 50 mm x 47 mm |
| Protection Rating | IP65 (Certification Under Validation) |
| R150 | |
|---|---|
| Code Inspection Tools |
|
| Speed | Application-dependent |
| Input | 1 x Camera trigger, 2 x Programmable |
| Output | 4 x Programmable Outputs |
| Ports | Ethernet, Ethernet GigE, VGA, USB x 2 |
| Electrical Requirements | 110-240 AC. 50-60 Hz. – Output: 24V DC |
| Dimensions | 120 mm x 124 mm x 47 mm |
| User Interface | VGA + USB |
| Optional Features |
|

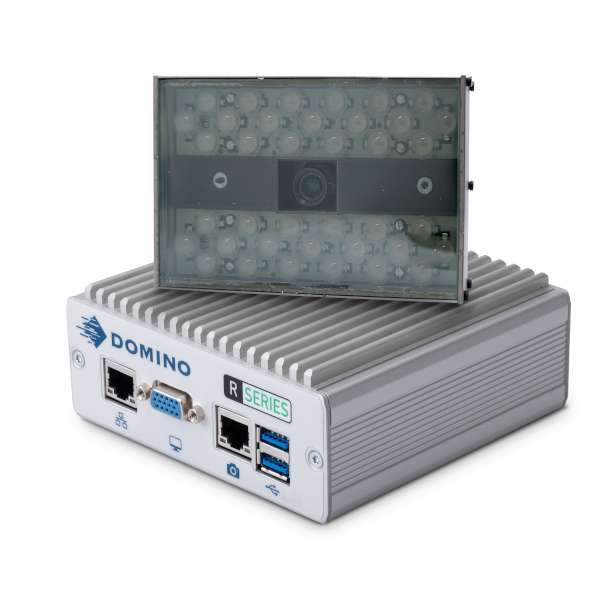

| Camera GR6-PS-630P | |
|---|---|
| Resolution | 1280 x 1024 |
| Max Frame Rate24 | 50 FPS |
| Field of View | 112 mm x 88 mm |
| Working Distance76 | 76 mm |
| Illumination | Integrated: Polarized LED 630 nm |
| Minimum 1D Barcode Size | 0.3 mm (nominal bar width) |
| Minimum 2D Barcode Size | 0.46 mm/cell (nominal bar width) |
| Minimum OCR Character Height | 2.27 mm |
| Camera Dimensions | 121 mm x 76 mm x 52 mm |
| Protection Rating | IP65 (Certification Under Validation) |
