Domino R350 Vision System


All-in-One Vision Inspection from a Trusted Partner

The Domino R350 vision system delivers advanced quality assurance by verifying the legibility of each code produced.

Thanks to Domino R350, it’s possible to lower material waste and cut expenses by identifying possible marking mistakes or faults instantly. This safeguards your business from fines due to failure to comply with standards and distributor requirements.

By stopping expensive recalls and reputation issues, the Domino R350 vision system also removes the necessity of human checks, which are time-consuming and often ineffective.

Why Select the Domino R350 Vision System?

icona integrazione

Developed to align with industry protocols and best practice standards, ensuring reliable regulatory adherence.

icona tecnico

Equipped for a wide range of options, which can be conveniently enabled through software upgrades for scalability as your needs grow.

icona integrazione

Domino R350 is easy to set up, operate, and integrate with existing production equipment, supporting a streamlined process.

Technical Info & Variants

Serie R350
Code Inspection Tools
  • Code Presence Verification
  • Code Position Verification
  • Character Count
  • MRC Control (Code Readability Verification)
Speed Application-dependent
Input 1 x Camera trigger, 2 x Programmable
Output 4 x Programmable Outputs
Ports Ethernet, Ethernet GigE, VGA, USB x 2
Electrical Requirements 110-240 AC. 50-60 Hz. – Output: 24V DC
Dimensions 120 mm x 124 mm x 47 mm
User Interface VGA + USB
Optional Features
  • Integrated Printer & Vision System Interface via a single Control Panel
  • High-Speed Reject Tracking System: LInK
Camera GE-1920IP
Resolution 1920 x 1080
Max Frame Rate 52 FPS
Field of View 106 mm x 66 mm @ 150 mm
Working Distance 150 mm
Illumination Not integrated / Requires external light source
Minimum 1D Barcode Size 0.16 mm (nominal bar width)
Minimum 2D Barcode Size 0.30 mm/cell (minimum module size)
Minimum OCR Character Height 1.38 mm
Camera Dimensions 29 mm x 29 mm x 45 mm (excluding lenses)
Protection Rating IP67
Serie R350
Code Inspection Tools
  • Code Presence Verification
  • Code Position Verification
  • Character Count
  • MRC Control (Code Readability Verification)
Speed Application-dependent
Input 1 x Camera trigger, 2 x Programmable
Output 4 x Programmable Outputs
Ports Ethernet, Ethernet GigE, VGA, USB x 2
Electrical Requirements 110-240 AC. 50-60 Hz. – Output: 24V DC
Dimensions 120 mm x 124 mm x 47 mm
User Interface VGA + USB
Optional Features
  • Integrated Printer & Vision System Interface via a single Control Panel
  • High-Speed Reject Tracking System: LInK

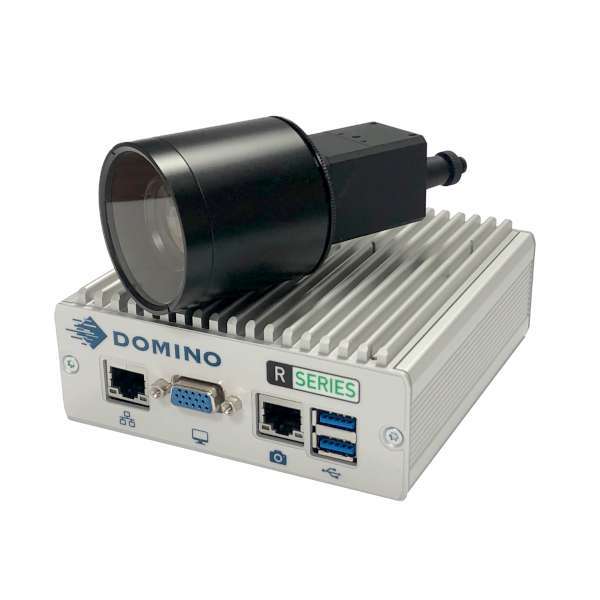

Camera GE-2448IP
Resolution 2448 x 2048
Max Frame Rate 24 FPS
Field of View 106 mm x 66 mm @ 150 mm
Working Distance 150 mm
Illumination Not integrated / Requires external light source
Minimum 1D Barcode Size 0.16 mm (nominal bar width)
Minimum 2D Barcode Size 0.30 mm/cell (minimum module size)
Minimum OCR Character Height 1.38 mm
Camera Dimensions 29 mm x 29 mm x 45 mm (excluding lenses)
Protection Rating IP67
Serie R350
Code Inspection Tools
  • Code Presence Verification
  • Code Position Verification
  • Character Count
  • MRC Control (Code Readability Verification)
Speed Application-dependent
Input 1 x Camera trigger, 2 x Programmable
Output 4 x Programmable Outputs
Ports Ethernet, Ethernet GigE, VGA, USB x 2
Electrical Requirements 110-240 AC. 50-60 Hz. – Output: 24V DC
Dimensions 120 mm x 124 mm x 47 mm
User Interface VGA + USB
Optional Features
  • Integrated Printer & Vision System Interface via a single Control Panel
  • High-Speed Reject Tracking System: LInK
GR2X-PS-630P
Resolution 1280 x 1024
Max Frame Rate 50 FPS
Field of View 70 mm x 55 mm
Working Distance 50 mm
Illumination Integrated, selectable options:

  • Red LED 630 nm (polarized)
  • White LED (polarized)
Minimum 1D Barcode Size 0.16 mm (nominal bar width)
Minimum 2D Barcode Size 0.30 mm/cell (minimum module size)
Minimum OCR Character Height 1.38 mm
Dimensions 50 mm x 50 mm x 47 mm
Protection Rating IP65 (Certification Under Validation)
Serie R350
Code Inspection Tools
  • Code Presence Verification
  • Code Position Verification
  • Character Count
  • MRC Control (Code Readability Verification)
Speed Application-dependent
Input 1 x Camera trigger, 2 x Programmable
Output 4 x Programmable Outputs
Ports Ethernet, Ethernet GigE, VGA, USB x 2
Electrical Requirements 110-240 AC. 50-60 Hz. – Output: 24V DC
Dimensions 120 mm x 124 mm x 47 mm
User Interface VGA + USB
Optional Features
  • Integrated Printer & Vision System Interface via a single Control Panel
  • High-Speed Reject Tracking System: LInK

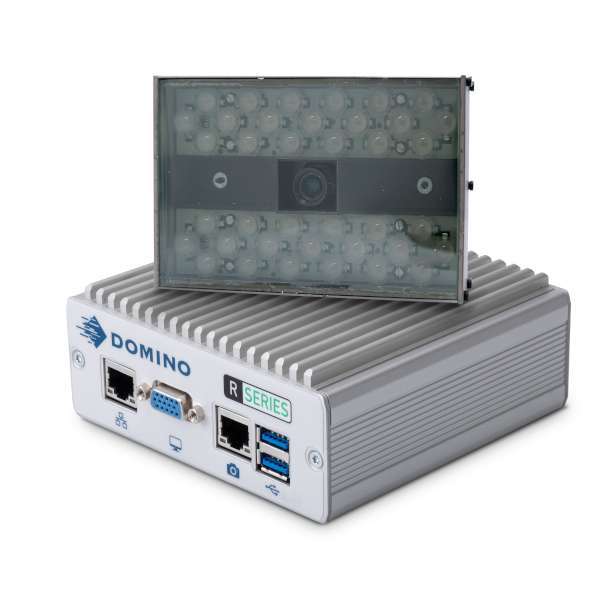

GR6-PS-630P
Resolution 1280 x 1024
Max Frame Rate 50 FPS
Field of View 112 mm x 88 mm
Working Distance 76 mm
Illumination Integrated: 630 nm Polarized LED
Minimum 1D Barcode Size 0.3 mm (minimum bar width)
Minimum 2D Barcode Size 0.46 mm/cell (minimum module size)
Minimum OCR Character Height 2.27 mm
Dimensions 121 mm x 76 mm x 52 mm
Protection Rating IP65 (Certification Under Validation)
