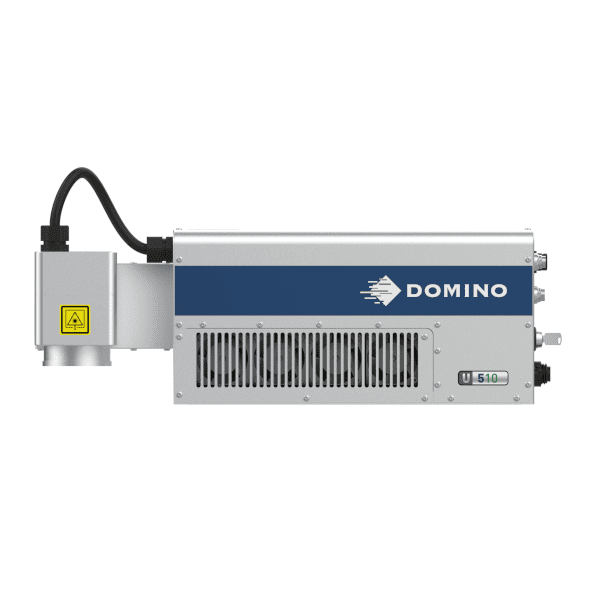

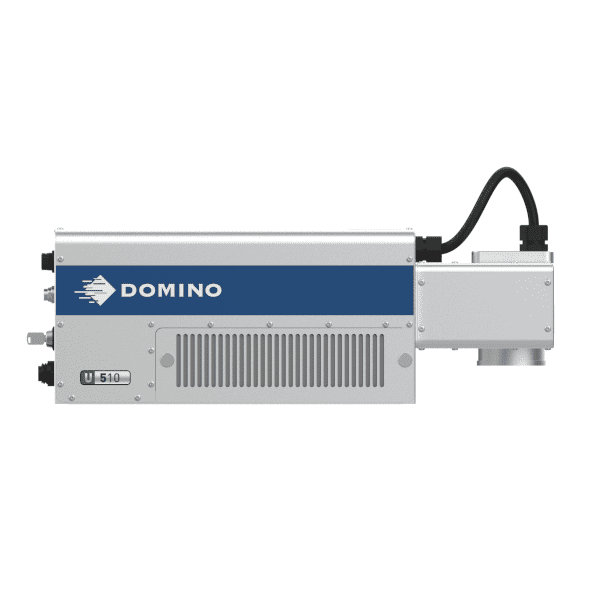

Domino U510 UV Laser Printer


The UV Laser Solution for Lasting Codes on Plastics and Films

The Domino U510 UV laser system brings exceptional, durable identification to modern plastic packaging types.

This UV system applies direct codes to both colored and white substrates, no dedicated laser areas required. The ultra-compact, fully integrated Domino U510 is ready for Industry 4.0 and fits seamlessly into today’s production lines.

With the Domino U510, the packaging’s barrier layer remains undisturbed as the marking forms via photochemical effect within the outer surface. This process avoids harming the packaging, as the short-wavelength laser energy and efficient absorption limit thermal exposure and almost entirely prevent soot residue.

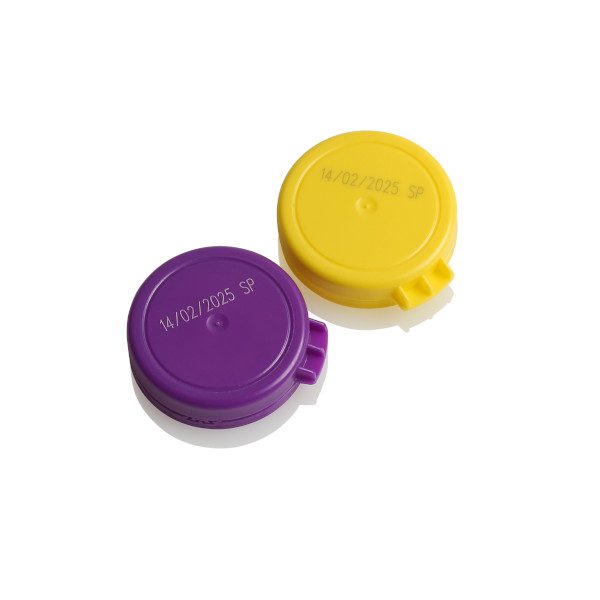

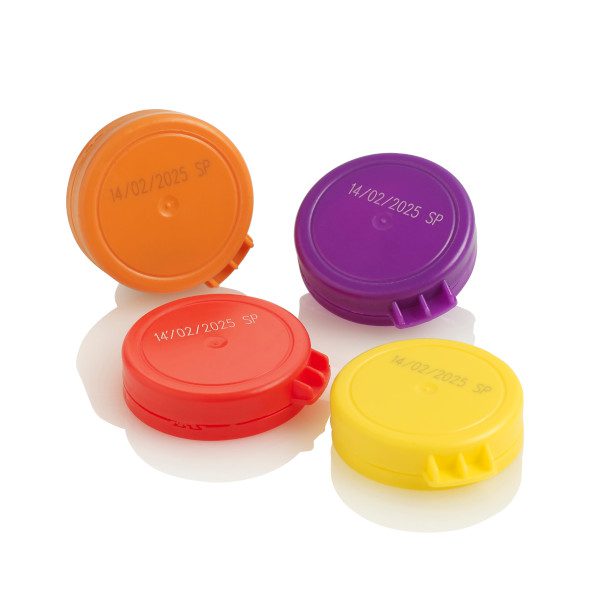

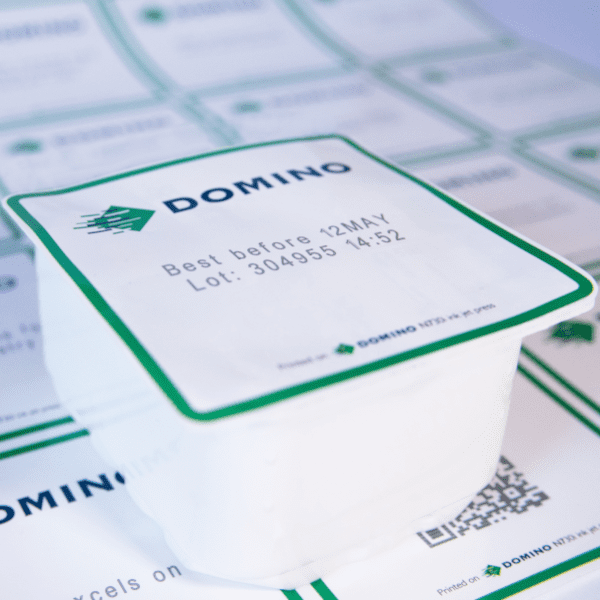

You can code even extremely thin and fragile film materials with confidence. When working with colored or white plastics, the laser reacts with titanium dioxide (TiO₂) in the material, delivering marks with vivid contrast. Because TiO₂ is a common additive in plastic, there’s no need for extra coatings or specialized coding zones—mark anywhere you need.

Why Pick the Domino U510?

icona raggiungimento obbiettivi

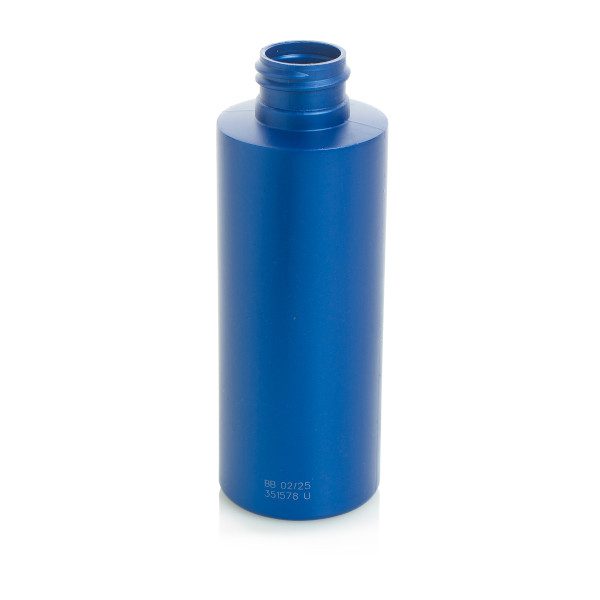

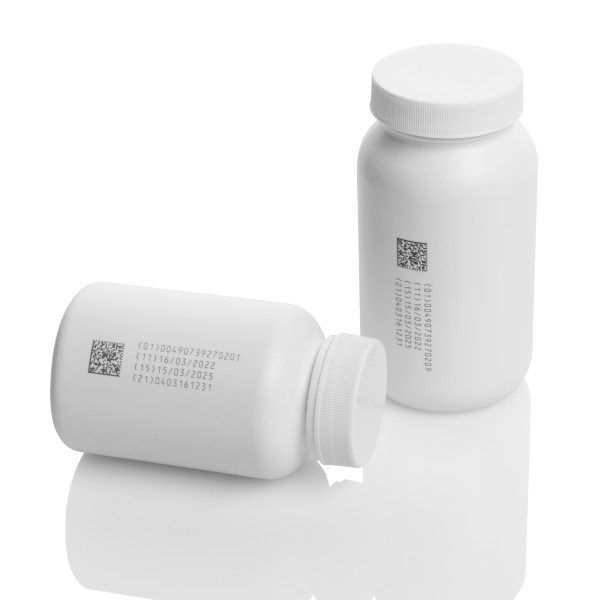

The Domino U510 ensures sharp, clear results visible to humans and automated readers. Achieve striking white marks on dark plastics, and deep black codes on light materials. Its 6-watt output and 100kHz frequency make it the ideal choice for fast, high-throughput operations.

icona lavoro di squadra

The integrated controller and laser, both in a single unit, streamline line setup. Fan cooling eliminates any requirement for water or air utilities. With a scan head that installs either horizontally or vertically, adapting to your space is simple.

icona specifiche tecniche

The U510 UV printer meets IP55 standards, providing robust resistance to dust and splashes, so you can count on consistent, stable performance in demanding industrial settings.

Technical Details

Coding Laser
Laser Type YVO4 – THG, Class 4
Wavelength 355 nm (invisible)
Nominal Output Power 6 W (laser) / 4.5 W (coder)
Laser Oscillation Pulse mode, 5–50ns, 0–500 kHz frequency
Focal Length / Marking Field 160 mm / 100×100 mm, 330 mm / 207×207 mm, 480 mm / 326×326 mm
Integrated Aiming Laser
Laser Type Diode Laser, Class 2
Wavelength 655 nm (visible)
Laser Oscillation Continuous mode
Coder Specifications
Electrical Requirements 100-240 VAC, max. 3A, 50/60 Hz
Max Power Consumption 300 VA
Max Peak Laser Power 12 W
Supported Code Types & Characters Logos, barcodes, 2D codes, graphics, text, etc. / 16 fonts, multilingual including full Unicode
Minimum Character Height 0.6 mm
Dimensions & Weight 601.5 x 233.6 x 201.7 mm (W x D x H) / 21 kg
Protection Rating IP55
Temperature Range 10–40°C
Operating Humidity Max. 90% RH, non-condensing
Cooling System Fan-based air cooling
Material Finish Anodized aluminum
Performance level (PL) ISO13849-1:2015 Category 4 PLe for safety inputs
Operating System Laser Controller: Embedded Linux / User Panel: Windows® 10
Optional Touchscreen 10.4″ TouchPanel with LMEditor QS
Communication Dynamark Protocol, Domino Cloud Interface (DCI)

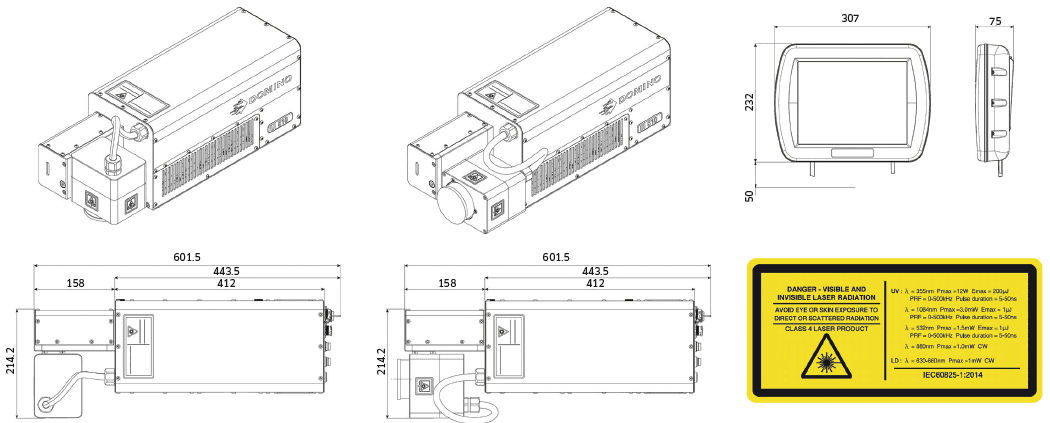

u510 domino specifiche tecniche

Product details or configurations may change. Please verify if these features match your application before ordering.
