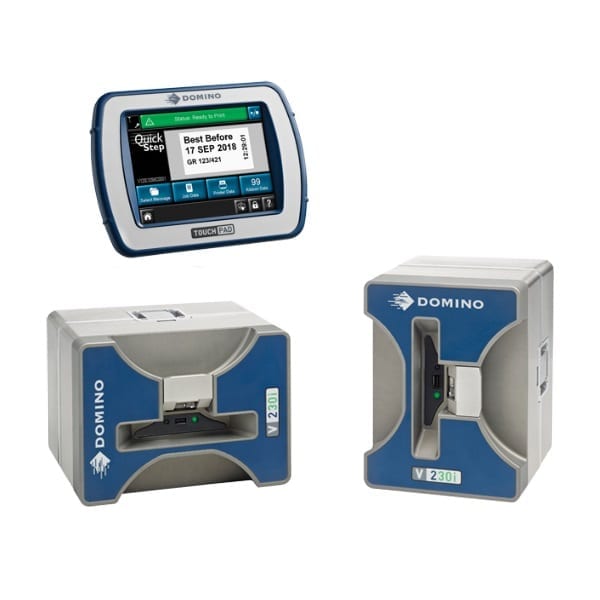

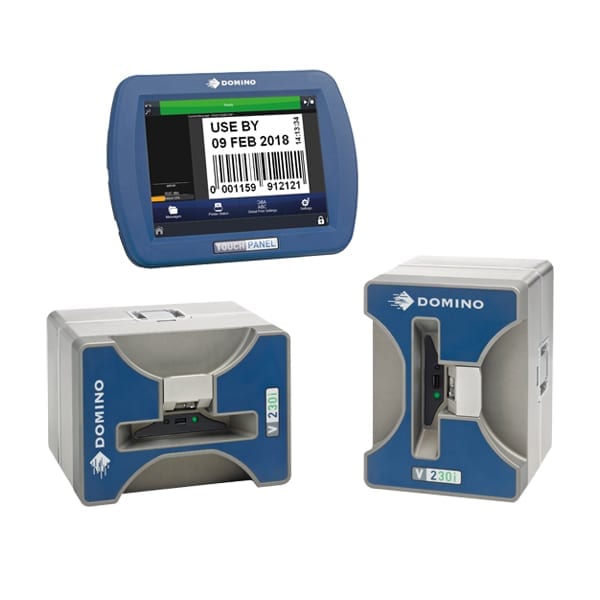

Domino V230i Thermal Transfer Printer
The Intelligent Choice for Thermal Transfer Applications
The Domino V230i thermal transfer printer is the perfect option for marking flexible packaging and label materials, providing outstanding print results at very low operational costs.
Its small footprint enables seamless installation in compact spaces and it fits existing machine supports via a straightforward adapter plate. Setup is completed in under one hour. Thanks to the V230i’s compatibility with popular label creation and print management platforms, you can start production instantly without changing your current processes or reprogramming your layouts.
The Domino V230i supports high and low-speed operations (10-750 mm/sec), surpassing standard industry throughput on most lines while ensuring premium image clarity.
Additionally, the integrated heated printhead maintains consistent code quality, even when operating in cold production environments.
Why Select the Domino V230i Thermal Transfer Printer?

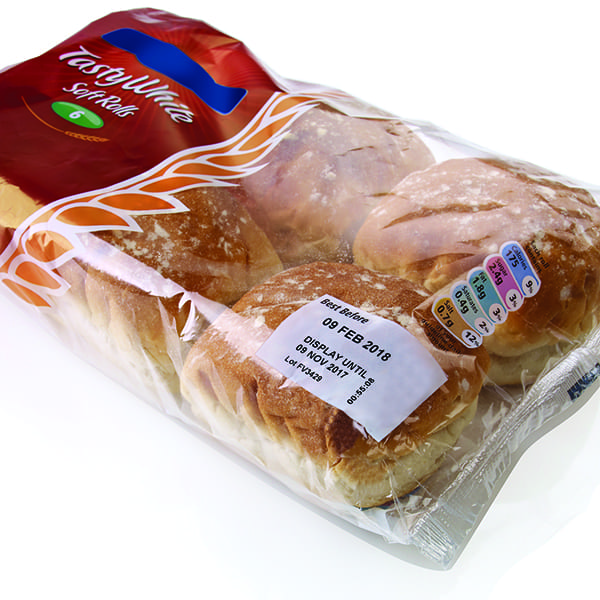

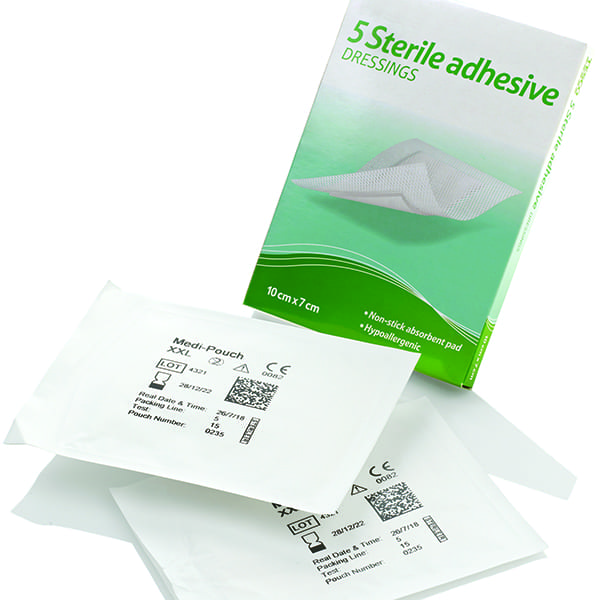

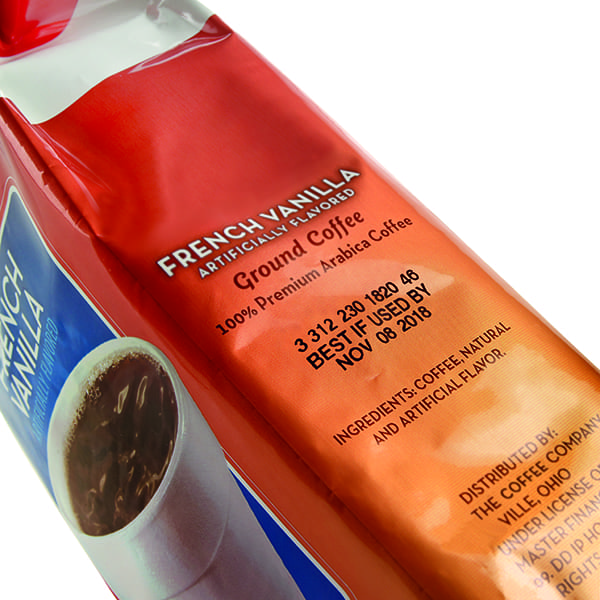

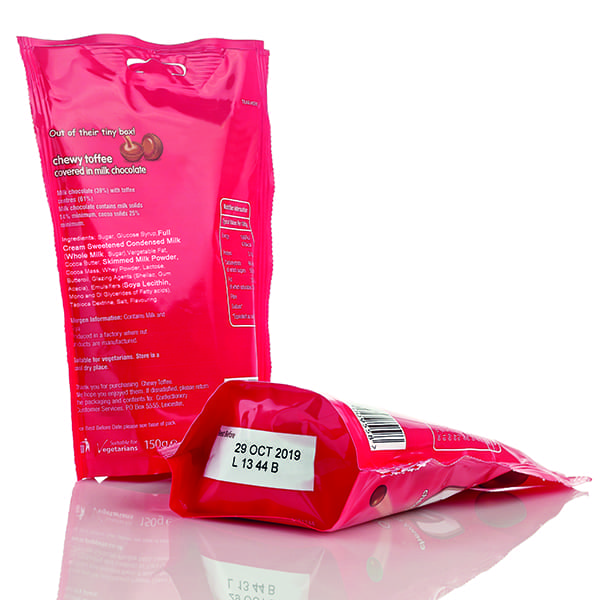

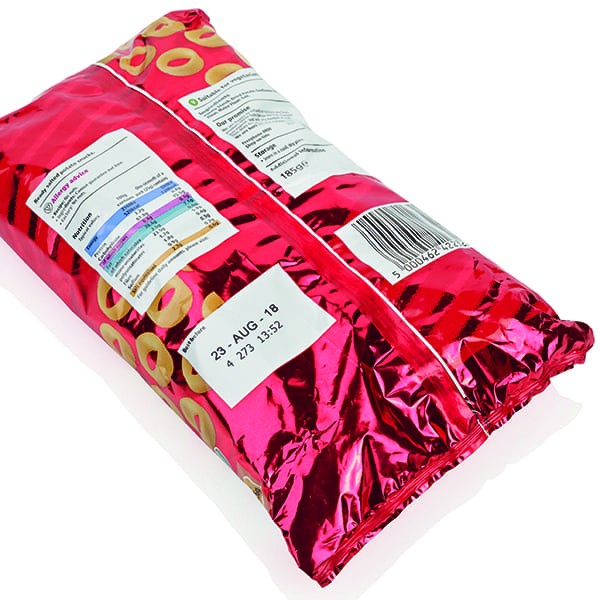

Effortless Integration for Food & Life Sciences: The Domino V230i is easily incorporated into thermoforming and labelling lines across a broad range of food and life science sectors. It enables variable data printing to personalize generic packs and helps clearly present ingredients and allergen information to meet evolving European compliance standards.
Superior Print Quality & Data Flexibility: The V230i prints crisp **300 dpi** text, graphics, dynamic barcodes, and 2D matrix codes with precision. It can link directly to a database for dynamic data output. Available printhead sizes—**32 mm and 53 mm**—give you greater application versatility.
Eco-Conscious & Cost-Saving Design: The V230i weighs 40% less than previous models, reducing its environmental footprint. The advanced ribbon handling system cuts ribbon use by up to 60% and works without air consumption, minimising VOC output.
Technical Information
Domino printers are approved and distributed in over 100 countries globally. Certifications: CE, NRTL, CB, and FCC 47CFR Part. 15B.
Printer Specifications
| V230i (32 mm) | V230i (53 mm) | |
|---|---|---|
| Printing Mode | Intermittent (IM) and Continuous (CM) both available on a single device | Intermittent (IM) and Continuous (CM) both available on a single device |
| Left/Right Orientation | Convertible for both sides (switchable within 15 min. with no extra parts) | Convertible for both sides (switchable within 15 min. with no extra parts) |
| Print Resolution | 300 dpi | 300 dpi |
| Max. Print Area (IM) | 32×55 mm | 53×55 mm |
| Max. Print Area (CM) | 32×500 mm | 53×500 mm |
| Max. Printing Speed (IM) | 400 mm/sec* | 400 mm/sec* |
| Speed Range (CM) | 10-750 mm/sec* | 10-750 mm/sec* |
| Max. Print Repetition Speed | 6 prints/sec (with 10 mm print)* | 6 prints/sec (with 10 mm print)* |
| Ribbon Technology | i-Tech system with tension managed by dancing arms | i-Tech system with tension managed by dancing arms |
| Max. Ribbon Length | 770 m (up to 1925 m effective in Economy mode) | 770 m (up to 1925 m effective in Economy mode) |
| Standard Ribbon Width | 34 mm, 22 mm | 55 mm, 34 mm |
Ribbon Saving Modes*
| Economy Mode | Extends ribbon life up to 60% | Extends ribbon life up to 60% |
| Retraction Mode | Gaps between prints under 1 mm | Gaps between prints under 1 mm |
| Column Mode | Yes | Yes |
| Stop Mid Print | Yes | Yes |
Printing Features
| Data Encoding Format | Yes | Yes |
| Offset | Yes | Yes |
| Shift Codes | Yes | Yes |
| Sequential Numbering | Yes | Yes |
| Fonts | Supports most TrueType fonts | Supports most TrueType fonts |
| Barcodes | Yes | Yes |
| Logos | Yes | Yes |
| Graphical Interface | QuickStep—full-color user interface, intuitive navigation with oversized buttons and clear icons, WYSIWYG print preview, multi-language options. | QuickStep—full-color user interface, intuitive navigation with oversized buttons and clear icons, WYSIWYG print preview, multi-language options. |
| Controller Options | No separate controller necessary. Hardware integration options include:
|
No separate controller necessary. Hardware integration options include:
|
| Connectivity | Ethernet / USB x2 / mini USB (service port) | Ethernet / USB x2 / mini USB (service port) |
* Performance may vary depending on substrate, message, and application specifics.
Variants

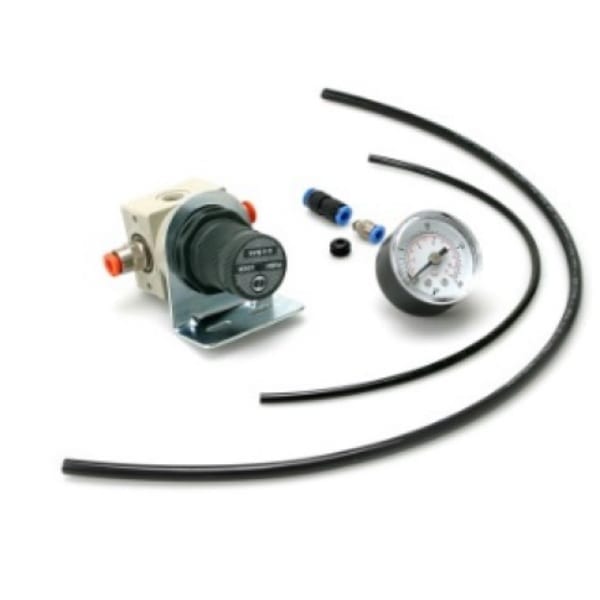

Accessories
Maximise the productivity of your Domino V-Series TTO printer by equipping it with the most suitable accessories for your production line.
