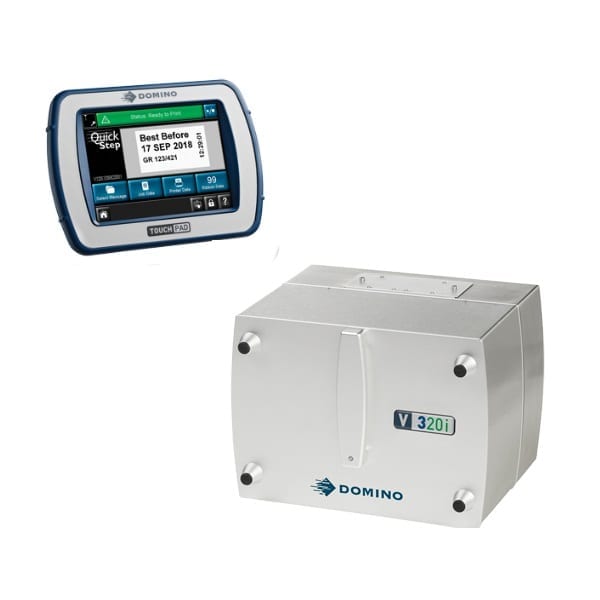

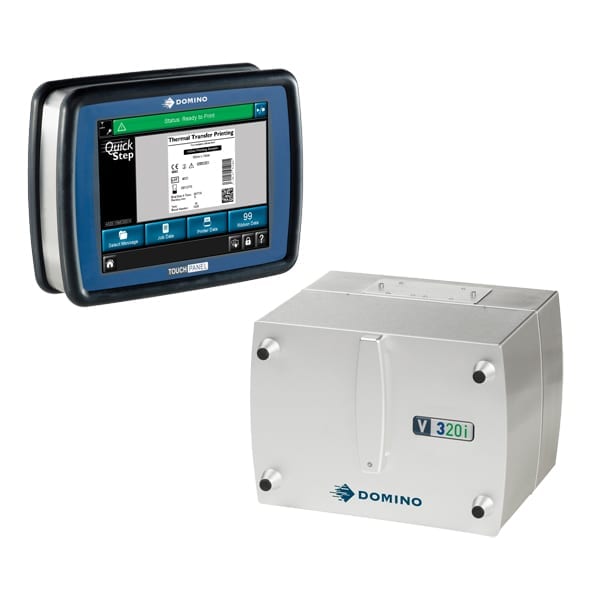

Domino V320i Thermal Transfer Printer
Top-Performing Thermal Transfer Printer for Flexible Films and Labels
The Domino V320i thermal transfer printer provides the ultimate efficiency and economy for marking flexible packaging and labels.
This V320i is easy to install and connect to your production setup, offering both intermittent and continuous operation in a single device. Printing at 300 dpi, it manages text, graphics, barcodes, and 2D codes with outstanding accuracy.
The advanced i-Tech system guarantees rapid printing speeds, making V320i the perfect fit for high-speed horizontal and vertical form fill sealers, labellers, and converters. Its smart control, together with the widest ribbon available, ensures V320i is the best value thermal transfer printer.
Switch between intermittent and continuous modes using the same unit, and convert quickly from right-hand to left-hand orientation. No special controller is required; operate via your production line’s PC interface.
Why Opt for the Domino V320i Thermal Transfer Printer?
Exceptional Print Clarity at High Speed: The Domino V320i uses a dancing arm mechanism to keep ribbon tension stable, producing precise, clean prints even at top speeds and during sudden accelerations.
Effortless and User-Friendly: No complicated settings or difficult menus—just upload your print job and start coding. The built-in software lets operators design and print codes right on the line.
Lowest Operating Costs in Its Segment: The Domino i-Tech ribbon system includes four ribbon saving settings, like “Economy Mode”, cutting ribbon use by up to 60% while preserving print quality.
Technical Information
Domino printers are certified and distributed in over 100 countries. Certifications: CE, NRTL, CB, and FCC 47CFR Part. 15B.
Printer Specifications
| V320i (53 mm) | V320i (128 mm) | |
|---|---|---|
| Printing Mode | Intermittent (IM) and Continuous (CM) on the same printer | Intermittent (IM) and Continuous (CM) on the same printer |
| Left/Right Orientation | Both options available (convertible in 30 min.) | Both options available (convertible in 30 min.) |
| Print Resolution | 300 dpi | 300 dpi |
| Max. Print Area (IM) | 53×115 mm | 128×115 mm |
| Max. Print Area (CM) | 53×2700 mm | 128×1000 mm |
| Max. Printing Speed (IM) | 720 mm/sec | 720 mm/sec |
| Speed Range (CM) | 10-1400 mm/sec | 10-1400 mm/sec |
| Max. Print Repetition Speed | 6 prints/sec (with a 10 mm print) | 6 prints/sec (with a 10 mm print) |
| Ribbon Technology | i-Tech with dancing arms for tension control | i-Tech with dancing arms for tension control |
| Max. Ribbon Length | 1400 m (up to 3500 m effective length in Economy mode) | 1400 m (up to 3500 m effective length in Economy mode) |
| Standard Ribbon Width | 30 mm, 55 mm | 130 mm |
Ribbon Saving Modes
| Economy Mode | Variable at 1%, increases ribbon lifespan up to 60% | Variable at 1%, increases ribbon lifespan up to 60% |
| Retraction Mode | Less than 1 mm gap between prints | Less than 1 mm gap between prints |
| Column Mode | Yes | Yes |
| Stop Mid Print | Yes | Yes |
Printing Features
| Data Encoding Format | Yes | Yes |
| Offset | Yes | Yes |
| Shift Codes | Yes | Yes |
| Sequential Numbering | Yes | Yes |
| Fonts | Yes | Yes |
| Barcodes | Yes | Yes |
| Logos | Yes | Yes |
| Graphical Interface | QuickStep, color interface with intuitive navigation and large, easy-to-read icons. WYSIWYG print preview. Multi-language support. | QuickStep, color interface with intuitive navigation and large, easy-to-read icons. WYSIWYG print preview. Multi-language support. |
| Connectivity | Ethernet / USB x2 / Mini USB (service) | Ethernet / USB x2 / Mini USB (service) |
Operating Characteristics
| Temperature | Operating temperature: 5°-40° C. Humidity: 20%-80%, non-condensing |
* Capacity depends on application type, substrate, and message length.
Unmatched Thermal Transfer Coding Capability
The Domino V320i thermal transfer printer is engineered to print large-format codes at high resolution on flexible materials and labels. Advanced i-Tech technology allows for swift printing, making the V320i ideal for the fastest horizontal and vertical packaging lines, labellers, and converters. The V320i’s smart management platform and industry-leading ribbon width guarantee a highly economical solution. Switch easily between intermittent and continuous modes in the same device; right-to-left conversion is quick. No external controller needed—just operate through your PC on the production floor.
Industry-Leading Print Speed
With innovative i-Tech dancing arm technology, ribbon tension remains stable even during acceleration, ensuring perfect print quality at maximum throughput. The V320i produces clear, detailed information—handling high speeds (10–1400 mm/sec) and achieving up to six prints per second.
Effortless Setup and Integration
Versatile: The device supports intermittent and continuous operations and is quickly reversible for right or left orientation, adaptable to all applications. Select from a broad range of ribbons, all compliant with regulatory and sustainability requirements. The V320i is operable without a controller—just link up to a PC or packaging system.
Powerful: Easily print at 300 dpi, including text, logos, barcodes, and 2D codes. It can also automatically access databases to print variable details. Printheads are available in 53 mm and 128 mm for flexible use.
Rugged: The V320i works reliably in challenging, dusty, or cold settings with a removable printhead cover that shields from dust and moisture. The built-in heater preserves code quality and printhead life in lower temperatures.
Minimal Running Costs
The Domino i-Tech ribbon system provides four options, including Economy Mode for up to 60% lower ribbon use without reducing quality.
Productive and Reliable: Compatible with ribbons up to 1400 m, meaning less downtime and fewer changes. Economy Mode more than doubles ribbon use time, slashing replacement frequency. Quick ribbon recalibration after changes means rapid restarts. Ribbon break delays are eliminated by the tension control dancing arms, which are maintenance-free and reduce operator intervention.
Simple User Experience
QuickStep is an intuitive interface for straightforward job setup. No confusing options—just select and print. Built-in tools let you design labels directly on the line, or you can create them on a PC with EasyDesign (or compatible labelling software) and transfer via USB or network.
Variants

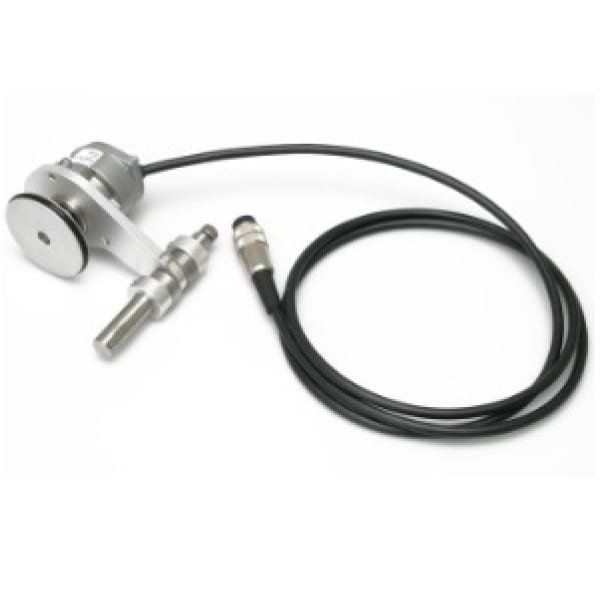

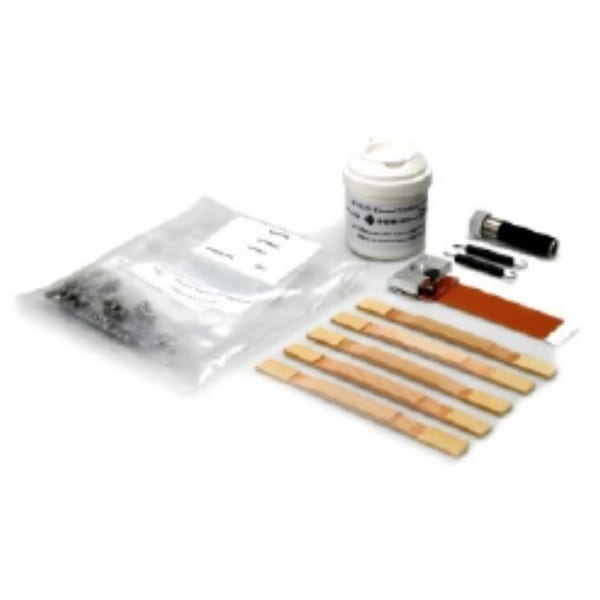

Accessories
Get the most out of your Domino V-Series TTO printers with the ideal accessories for your production setup.
