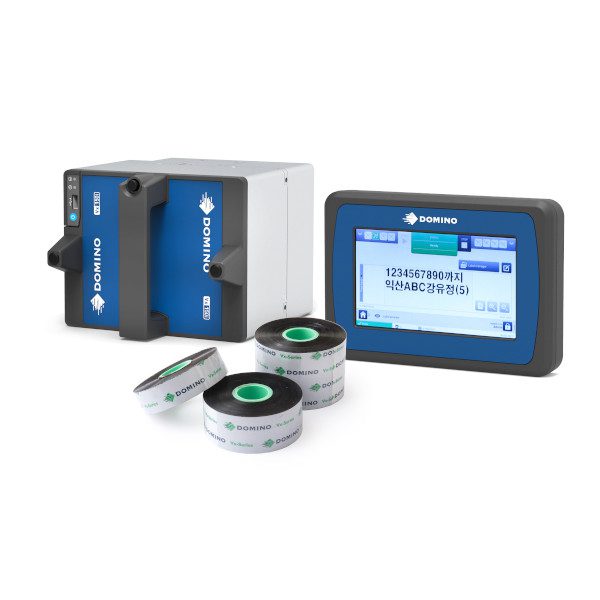

Domino Vx150i Thermal Transfer Printer
High-Speed Coding for Flexible Packaging
The Domino Vx150i thermal transfer printer delivers an outstanding option for manufacturers who need efficient, trustworthy, and rapid marking and coding on flexible film packaging.

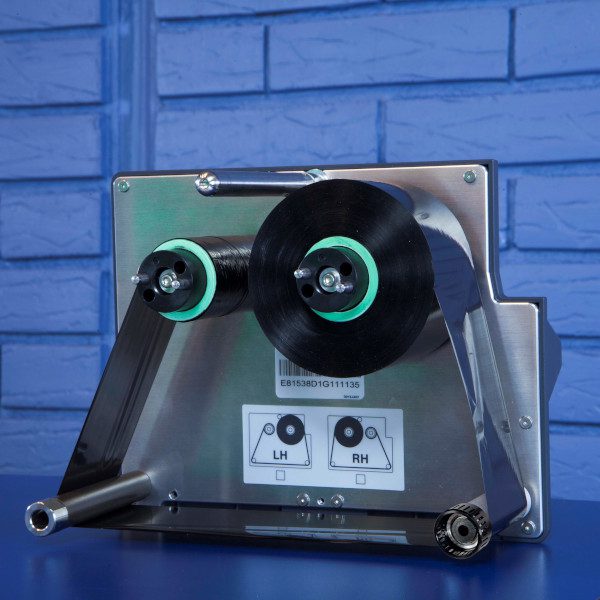

Featuring a 300 dpi resolution and the ability to print up to 6 times per second, the Vx150i offers intermittent operation with print areas up to 75 mm. Thanks to its long ribbon capacity and cassette-based ribbon handling, the printer allows extended, uninterrupted production cycles and helps minimize system downtime.
In addition to regular packaging coding, the integration of unique promo codes and serialization boosts product traceability and counterfeiting protection.
When you pair QuickDesign software with the Domino Vx150i, you can reduce mistakes and oversee every coding process centrally—even when managing multiple lines with specific requirements. QuickDesign is compatible with common communication standards and can be connected to current ERP solutions.
Why Select the Domino Vx150i Thermal Transfer Printer?
The Domino Vx150i works with a broad range of ribbon materials, guaranteeing sustainable, top-quality printing for flexible packaging to suit diverse production needs.
Boasting a compact footprint, the Vx150i fits easily into production lines of any size, optimizing space and boosting workflow efficiency.
The Vx150i is equipped with customizable access control, making it easy to assign tailored user rights, heighten safety, and avoid unauthorized adjustments.
Technical Information
Domino printers comply with regulations and are distributed in over 100 countries worldwide. Certifications: CE, NRTL, CB, FCC 47CFR Part. 15B.
Technical Specifications
| Intermittent Mode (IM) | Continuous Mode (CM) | |
|---|---|---|
| Printing Mode | ✓ | ✓ |
| Print Resolution | 300 dpi | 300 dpi |
| Printhead Width | 32 or 53 mm | 32 or 53 mm |
| Print Area (32/53 mm printhead) | 32×75 mm / 53×75 mm | 32×100 mm / 53×100 mm |
| Maximum Ribbon Length | 770 m (AR) | 770 m (AR) |
| Printing Speed | Up to 600 mm/sec | From 10 to 750 mm/sec |
| Maximum Print Frequency | 6 prints/sec | Prints/sec |
| Connectors | 3+1 USB, 1RJ45, 1 GPIO, 1 encoder | 3+1 USB, 1RJ45, 1 GPIO, 1 encoder |
| Supported Print Formats | EAN, GS1, UCC, QR Code, Data Matrix, Han Xin, ITF, Code 128, text, graphics, 1D, 2D codes etc. | EAN, GS1, UCC, QR Code, Data Matrix, Han Xin, ITF, Code 128, text, graphics, 1D, 2D codes etc. |

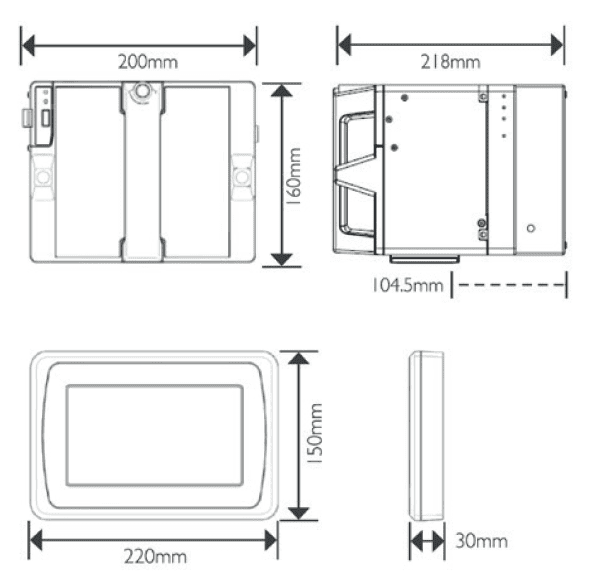

| Dimensions | 200 mm (W) x 160 mm (H) x 218 mm (D) | 200 mm (W) x 160 mm (H) x 218 mm (D) |
| Weight | 5.9 kg | 5.9 kg |
| Cartridge Weight | 0.9 kg (without ribbon) | 0.9 kg (without ribbon) |
| Fully Electric | No compressed air required | No compressed air required |
| Power Supply | 100 to 240 VAC, 50/60 Hz | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature / Humidity | 5 to 40°C / 20% to 80% RH | 5 to 40°C / 20% to 80% RH |
| Ribbon Saving Modes | Economy, Retraction, Column | Economy, Retraction, Column, Mid Print Halt |
| Protocol | Dynamark | Dynamark |
| Function Pack (Optional) | Serialization, Advanced Security, Promotional Coding | Serialization, Advanced Security, Promotional Coding |
| Tablet Connection | Via Wi-Fi dongle | Via Wi-Fi dongle |
| PC Connection | Network cable | Network cable |

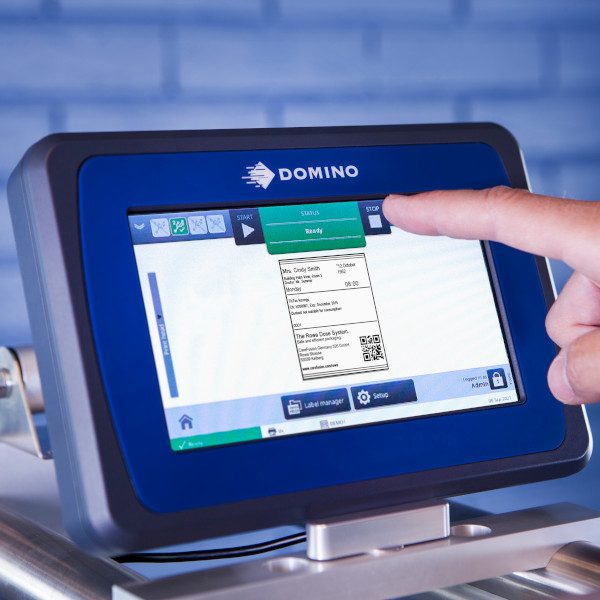

| TouchPad (Optional) | 7” TouchPad, Dimensions: Width 220 mm x Height 150 mm x Depth 30 mm, Multi-language support | 7” TouchPad, Dimensions: Width 220 mm x Height 150 mm x Depth 30 mm, Multi-language support |
| Support Frame (Optional) | Full range of support stands for all needs | Full range of support stands for all needs |
