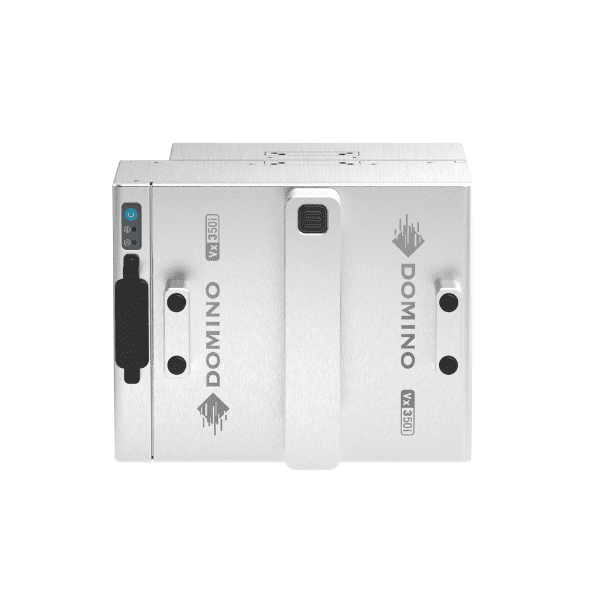

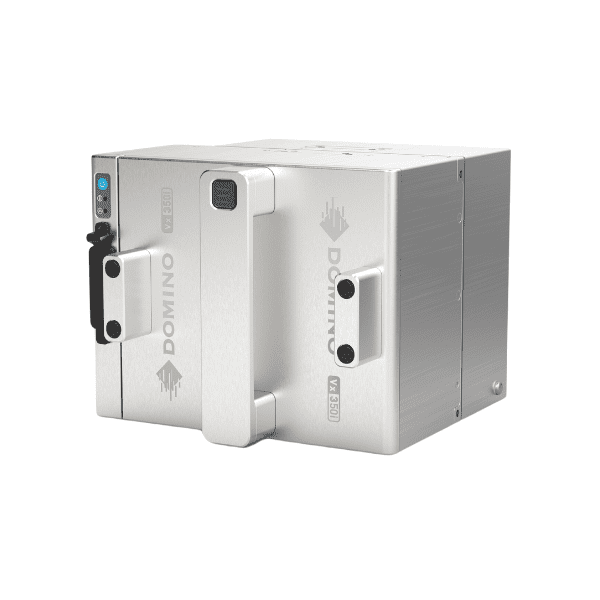

Domino Vx350i Thermal Transfer Printer
Unmatched Performance and Consistent Quality

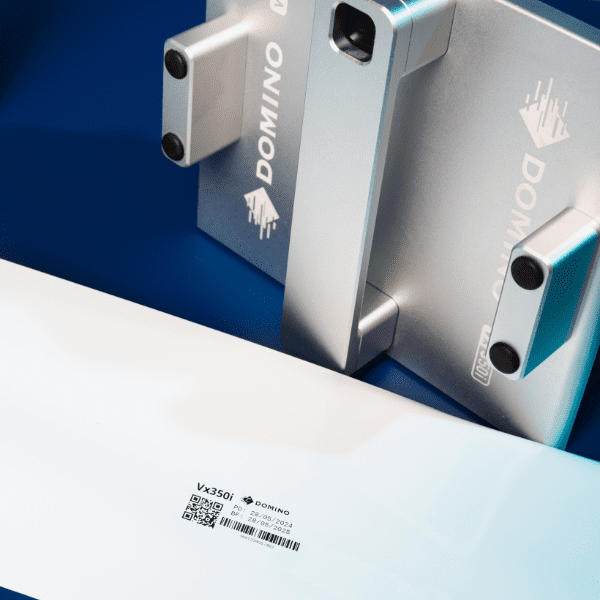

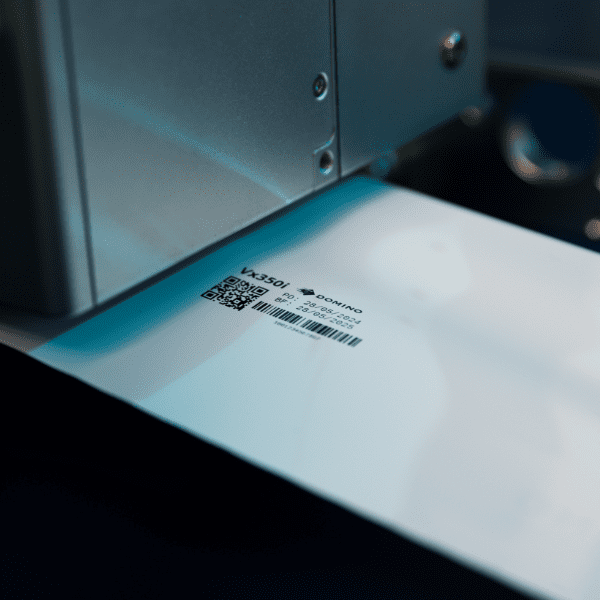

The Domino Vx350i is an industrial thermal transfer (TTO) printer engineered to print large, sharp codes, texts, and graphics on flexible films, foils, and labels. This versatility makes it the optimal solution for diverse flexible packaging needs.
With its durable construction, the Domino Vx350i stands out as the ideal printer for sectors such as pharmaceutical, life sciences, and food processing. It performs seamlessly on fast production lines and applications demanding complex, variable data coding.
The Domino Vx350i addresses present and future manufacturing requirements, delivering speeds up to 8.3 prints per second for dependable, high-speed marking.

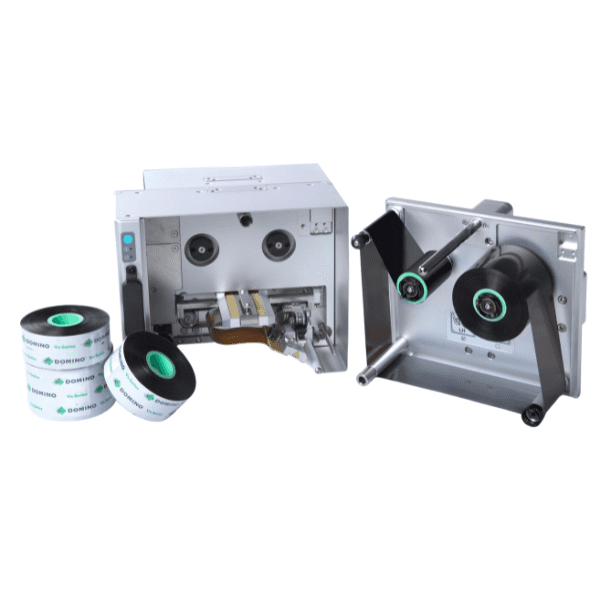

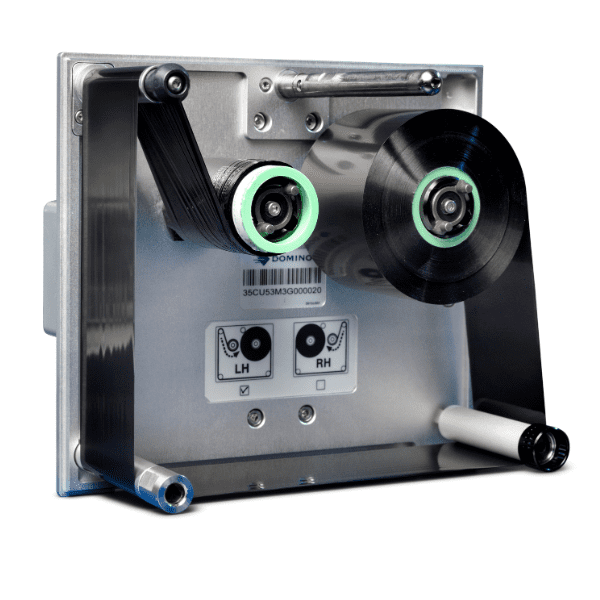

Designed for easy integration into any packaging line—from labelling systems, flow pack machines, to VFFS and HFFS (vertical and horizontal form, fill, and seal equipment). The removable cassette can be washable and includes a protected connector, ensuring optimal performance even in challenging production settings.
Why Select the Domino Vx350i Thermal Transfer Printer?
Intelligent Ribbon Optimization: This direct transmission printer uses smart ribbon-saving modes, cutting ribbon consumption by up to 60% per job.

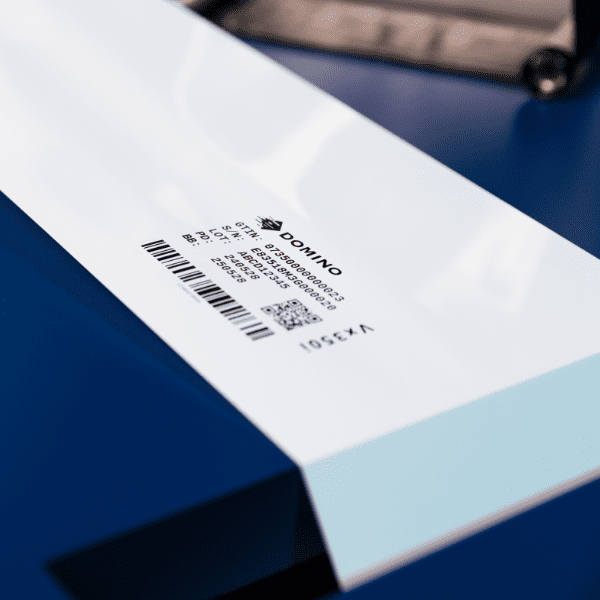

Exceptional Code Readability: Achieves crisp and accurate 2D codes, including QR and Data Matrix, to boost product traceability and transparency in the supply chain. Fully compatible with key industry guidelines, including GS1 Digital Link.
Greater Efficiency & Less Downtime: Ribbons with a maximum length of 1200m enable continuous production and reduce stoppages for ribbon replacement.
Technical Information
Domino printers are distributed in more than 100 countries. Certifications include CE, NRTL, CB, and FCC 47CFR Part. 15B.

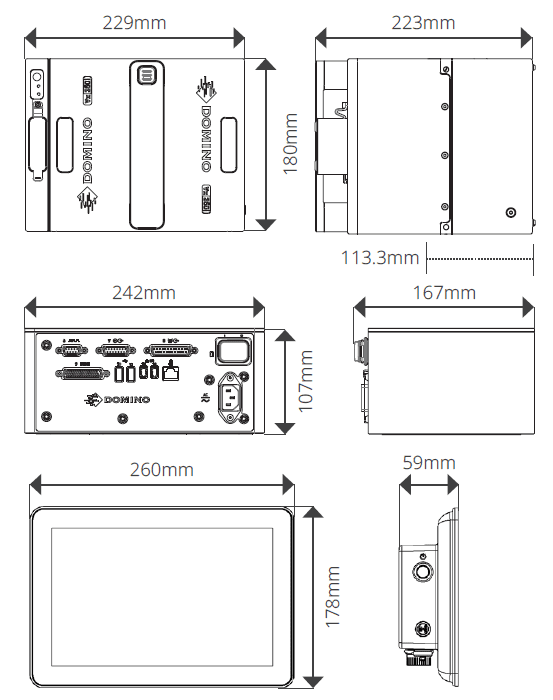

Technical Specifications
| Intermittent Mode (IM) | Continuous Mode (CM) | |
|---|---|---|
| Printing Mode | ✓ | ✓ |
| Print Resolution | 300 dpi | 300 dpi |
| Printing Speed | Up to 600 mm/sec | From 10 to 750 mm/sec (standard) From 10 to 1200 mm/sec (advanced package) |
| Maximum Print Frequency | 6 prints/sec (standard) 8.3 prints/sec (advanced package) |
6 prints/sec (standard) 8.3 prints/sec (advanced package) |
| Print Area | 53X75 mm | 53×500 mm (standard) 53X750 mm (advanced package) |

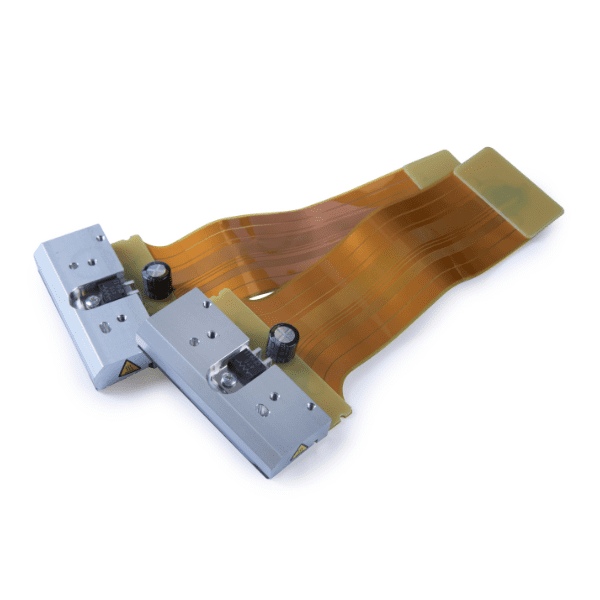

| Printhead Width | 53 mm | 53 mm |
| Start Print Area Distance – Rear Side | 113.3 mm (117 mm including wiring space) | 113.3 mm (117 mm including wiring space) |
| Maximum Ribbon Length | 1200m (AR) | 1200m (AR) |
| Ribbon Width | 34mm and 55mm | 34mm and 55mm |
| Printer Connectors | 2 USB, 1 GPIO, 1 encoder | 2 USB, 1 GPIO, 1 encoder |

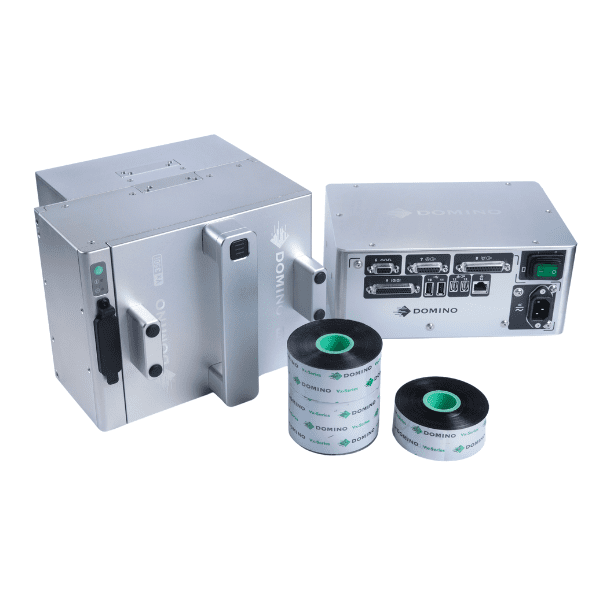

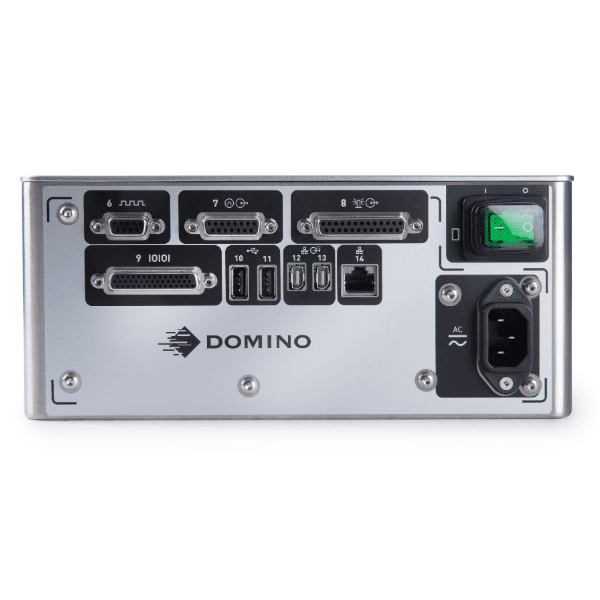

| Interface Box Connectors | USB, 1 RJ45, 2 GPIO, 1 encoder, 2 IX ports, 1 printer connection port | USB, 1 RJ45, 2 GPIO, 1 encoder, 2 IX ports, 1 printer connection port |
| Weight | 9.1 kg | 9.1 kg |
| Cartridge Weight | 1.7 Kg (without ribbon) | 1.7 Kg (without ribbon) |
| Fully Electric | No compressed air required | No compressed air required |
| Power Supply | Printer without interface box: 48V, 6.3A, 300W Printer with interface box: 100-240VAC, 50/60Hz |
Printer without interface box: 48V, 6.3A, 300W Printer with interface box: 100-240VAC, 50/60Hz |
| Operating Temperature / Humidity | 5 to 40°C / 10% to 90% RH | 5 to 40°C / 10% to 90% RH |
| Protection Rating | IP55 when the protection kit is installed (non-operational) | IP55 when the protection kit is installed (non-operational) |
| Ribbon Saving Modes | Economy, Retraction, Column | Economy, Retraction, Column, Mid Print Halt |
| Protocol | Dynamark | Dynamark |
| Tablet Connection | Via Wi-Fi dongle | Via Wi-Fi dongle |
| PC Connection | Via Ethernet cable | Via Ethernet cable |
| TouchPanel6 (Optional) | 10.1″ touchscreen – multi-language support | 10.1″ touchscreen – multi-language support |
| Support Frame (Optional) | Complete range of support stands for all needs | Complete range of support stands for all needs |
