Domino Vx50i Thermal Transfer Printer
Flexible Packaging Coding Has Never Been Easier
The Domino Vx50i thermal transfer printer is built for coding directly on flexible packaging, easily addressing today’s and tomorrow’s production challenges while reducing downtime and lowering overall ownership costs (TCO).
Equipped with four advanced ribbon-saving options, the Vx50i ensures optimized ribbon consumption, helping to lower running and service expenses thanks to its completely electric design with no need for compressed air. Its built-in software enables the Vx50i to function autonomously without external interfaces, streamlining production control.
Changing ribbons is fast and straightforward with the quick-release spool system and light, easy-to-handle cassette.

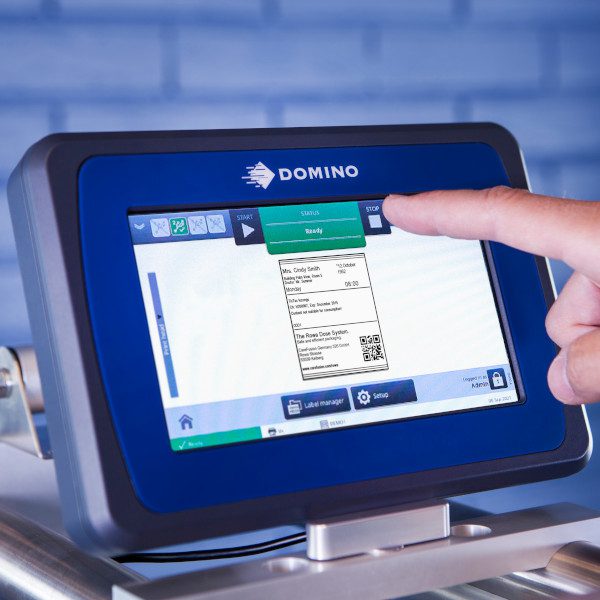

The small footprint guarantees effortless installation into any production setup. An optional 7” TouchPad offers an intuitive interface for designing and modifying print labels.
When combined with Domino’s R-Series vision systems, the Vx50i supports automated code inspection, verifying code presence, placement, and clarity for every item. This ensures that all products are properly coded so operators can focus on other priorities.
Why Choose the Domino Vx50i Thermal Transfer Printer?
Thanks to four ribbon-saving modes, the Domino Vx50i keeps ribbon use low, improving efficiency and cutting costs when coding flexible packaging.
The Vx50i is 100% electric, so it doesn’t need compressed air, reducing both operational and maintenance costs.
With built-in software, the Vx50i runs without any external control panel, making workflow and production oversight easier.
Technical Information
Domino printers are certified and available in over 100 countries worldwide. Certifications: CE, NRTL, CB, FCC 47CFR Part. 15B.
Technical Specifications
Intermittent Mode (IM) | Continuous Mode (CM) | |
---|---|---|
Printing Mode | ✓ | ✓ |
Print Resolution | 300 dpi | 300 dpi |
Printhead Width | 32 mm | 32 mm |
Print Area (32/53 mm printhead) | 32×55 mm | 32×55 mm |
Maximum Ribbon Length | 770 m (AR) | 770 m (AR) |
Printing Speed | Up to 400 mm/sec | Up to 400 mm/sec |
Maximum Print Frequency | 4 prints/sec | 4 prints/sec |
Connectors | 3+1 USB, 1RJ45, 1 GPIO, 1 encoder | 3+1 USB, 1RJ45, 1 GPIO, 1 encoder |
Supported Print Formats | EAN, GS1, UCC, QR Code, Data Matrix, Han Xin, ITF, Code 128, text, graphics, 1D, 2D codes etc. | EAN, GS1, UCC, QR Code, Data Matrix, Han Xin, ITF, Code 128, text, graphics, 1D, 2D codes etc. |
Dimensions | 200 mm (W) x 160 mm (H) x 218 mm (D) | 200 mm (W) x 160 mm (H) x 218 mm (D) |
Weight | 5.9 kg | 5.9 kg |
Cartridge Weight | 0.9 kg (without ribbon) | 0.9 kg (without ribbon) |
Fully Electric | No compressed air required | No compressed air required |
Power Supply | 100 to 240 VAC, 50/60 Hz | 100 to 240 VAC, 50/60 Hz |
Operating Temperature / Humidity | 5 to 40°C / 20% to 80% RH | 5 to 40°C / 20% to 80% RH |
Ribbon Saving Modes | Economy, Retraction, Column | Economy, Retraction, Column |
Protocol | Dynamark | Dynamark |
Function Pack (Optional) | Serialization, Advanced Security, Promotional Coding | Serialization, Advanced Security, Promotional Coding |
Tablet Connection | Via Wi-Fi dongle | Via Wi-Fi dongle |
PC Connection | Network cable | Network cable |
TouchPad (Optional) | 7” TouchPad, Dimensions: Width 220 mm x Height 150 mm x Depth 30 mm, Multi-language support | 7” TouchPad, Dimensions: Width 220 mm x Height 150 mm x Depth 30 mm, Multi-language support |
Support Frame (Optional) | Full range of support stands for all needs | Full range of support stands for all needs |
