Domino X630i – Digital Single-Pass Printer


Single-pass digital printing solution for corrugated packaging

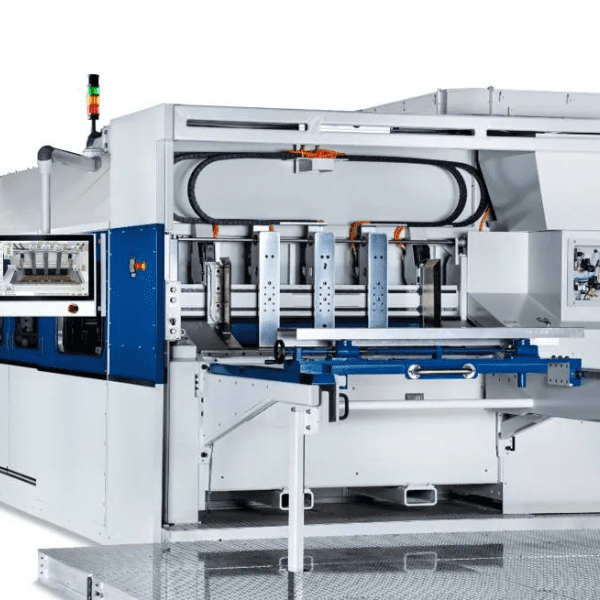

Domino X630i is a state-of-the-art digital single-pass system, purpose-built for printing on corrugated board. It delivers speeds of up to 75 meters per minute with 600 x 600 dpi resolution and supports formats up to 1,600 x 3,000 mm, reaching 4,500 sheets per hour. Equipped with a servo-driven feeder, vacuum-controlled transport and versatile delivery units for both stacking and bundling, it ensures maximum efficiency.

The platform is powered by Domino’s trusted Generation 6 inkjet technology, drawing on four decades of expertise. The integrated i-Tech CleanCap automatically cleans and seals the print heads, limiting manual maintenance. Continuous ink recirculation through i-Tech ActiFlow enhances print consistency, while i-Tech StitchLink aligns print heads with pinpoint accuracy for flawless results.

Using Domino AQ95 inks with i-Tech PolyM technology, the X630i delivers outstanding image quality on coated and uncoated corrugated materials – without primer or separate bonding agents. Domino X630i is the perfect choice for companies seeking a flexible, reliable, and future-ready solution for digital corrugated printing.

Why choose Domino X630i?

icona raggiungimento obbiettiviAutomatic head cleaning and capping keeps nozzles reliable, minimizes start-up delays, and reduces manual intervention.

icona intuitivitàPrecision motor control ensures every print head is perfectly aligned and calibrated, enabling seamless printing across the full sheet width.

icona qualità di stampaAQ95 CMYK inks meet the EuPIA exclusion policy and are suitable for multiple indirect food packaging uses.

Technical Information

Press modules Feeder, Transfer In, Plate cleaning, Plate inspection, Print section, Transfer Out, Dryer, Overprint varnish section
Technology Piezzo Drop-on-Demand inkjet, Infrared drying
Print speed 50 m/min (164 ft/min) – 75 m/min (246 ft/min)
Image resolution 600 dpi native with 3 grayscale levels
Sheet size range 508 x 762 to 1,600 x 3,000 mm (20 x 30 to 63 x 118 inches)
Maximum image size Print area max. 3000 mm (118″) x 1345 mm (53″)
Media types Coated, Uncoated & Kraft. Board thickness: E to BC flute
Ink Cyan, Magenta, Yellow, Black. Water-based inks. EU/FDA, Nestlé, Swiss compliant
Workflow Esko DFE, Colour Pilot, Domino ScreenPro HS. Functions: step & repeat, colour management, cropping, edge-to-edge print, saturation and hot folders
File formats PDF versions: 1.3; 1.4; 1.5; 1.6; 2.0; PDF/X-1a and PDF/X-3 as well as PDF/VT
Environment X630i is fully enclosed with temperature and dust control

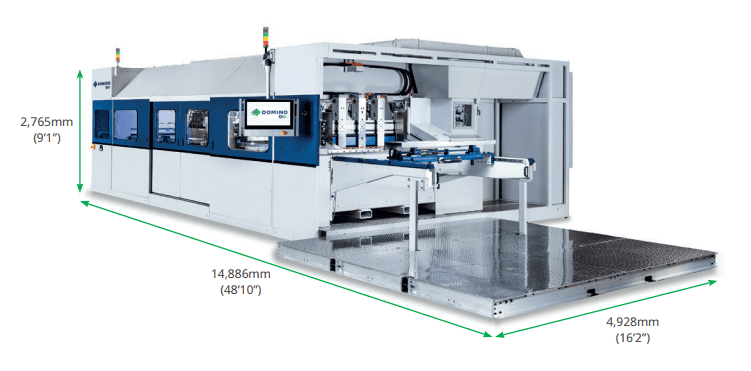

Dimensions Length: 14,886 mm (48’10”)
Width: 4,928 mm (16’2”)
Height: 2,765 mm (9’1”)
Weight Feeder: 5000 kg (11,023 lbs)
Transfer In: 5455 kg (12,026 lbs)
Print section: 7275 kg (16,034 lbs)
Transfer Out: 5000 kg (11,023 lbs)
Dryer: 3653 kg (8,061 lbs)
Overprint varnish: 1814 kg (4000 lbs)
Total: 28,178 kg (62,122 lbs)
Services Electrical: 440-480 VAC / 60Hz / 3-phase
Air: 100 psi (8.0 Bar) minimum for actuators (minimum SCFM airflow required)
No continuous air or cooling water supply required
Water: Not required
Drain: Required for HVAC condensate

technical info domino x630i
