Domino Cx350i Large Character Inkjet Printer
The Optimal Choice for Industry 4.0 Packaging Coding
The Domino Cx350i is a smart large character inkjet printer that maximises the advantages of direct printing on secondary cartons.
With the Domino Cx350i inkjet printer, it is possible to improve print quality and lower operational expenses. You can eliminate pre-printed boxes and labels by applying graphics, barcodes, and text directly on packaging.
Opting for the Domino Cx350i means choosing a sustainable solution, with eco-friendly inks derived from plant-based oils and advanced technology offering adjustable resolution to deliver premium codes with reduced ink usage.
The automation software for coding ensures top productivity and seamlessly connects with barcode readers and vision inspection systems to secure code legibility.
Why Select the Domino Cx350i Large Character Inkjet Printer?
The broad connectivity options ensure seamless compatibility with existing plant technologies using PLC standard interfaces, such as Ethernet/IP™. No compressed air or filter changes are needed.
Simple systems to transfer texts and data for integration with multiple packaging and production lines. The large ink tank capacity allows extended runtime with minimal operator intervention.
The Domino Cx350i large character inkjet printer operates without compressed air, avoids label waste, and uses only inks from vegetable oils to provide consistent, high-contrast markings. Ink can be refilled during ongoing production.
Variants
The Domino Cx350i large character inkjet printer comes with Horizontal and Vertical printhead versions, expanding the print area for secondary packaging codes. Easy to fit on production lines due to compactness, these heads are optimal for industrial applications and suitable for printing on plasterboard too.

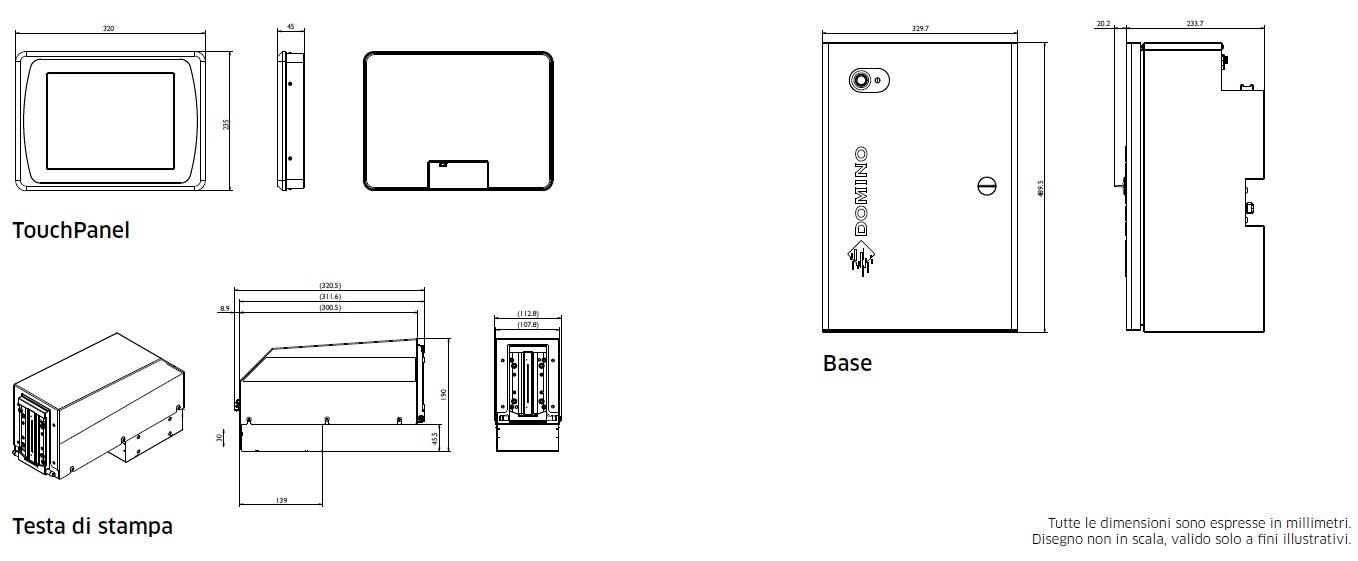

Technical Information
Cabinet
| Cx-Base 2 Heads | Cx-Base 4 Heads | |
|---|---|---|
| Printheads (max.) 2 Internal Reservoir: 440 ml |
Printheads (max.) 4 Internal Reservoir: 760 ml |
|
| Dimensions | Length: 329.7 mm / Depth: 233.7 mm / Height: 489.5 mm
Cx-2 Heads Base: 13.55 kg, Cx-4 Heads Base: 15.03 kg (excluding power button, stop, connector cover, bracket) |
Length: 329.7 mm / Depth: 233.7 mm / Height: 489.5 mm
Cx-2 Heads Base: 13.55 kg, Cx-4 Heads Base: 15.03 kg (excluding power button, stop, connector cover, bracket) |
| Electrical Requirements | Input: 100-240VAC, 50-60 Hz, Heads: 2A | Input: 100-240VAC, 50-60 Hz, Heads: 3A |
| Connection Options | 1 x encoder input, 1 x I/O connector (4 x product presence sensor input, 5 x general-purpose input, 8 x general-purpose output, 3 x 24VDC output), 2 x USB (type A), 1 x RS232C, 2 x RJ-45 | 2 x encoder input, 2 x I/O connector (4 x product presence sensor input, 9 x general-purpose input, 12 x general-purpose output, 4 x 24VDC output, 3 x alarm contacts), 2 x USB (type A), 1 x RS232C, 2 x RJ-45 |
Printhead
| Dimensions | Length: 112.8 mm / Depth: 311.6 mm / Height: 190 mm / Weight: 4.22 kg |
| Electrical Requirements | 24VDC (supplied by the base cabinet) |
| Resolution | Horizontal max. 300 dpi, Vertical 150 dpi |
| Print Height | 65 mm max |
TouchPanel
| User Interface | 10.4” TouchPanel with QuickStep 3 software |
| Dimensions | Length: 320 mm / Depth: 45 mm / Height: 235 mm / Weight: 2.65 kg |
System Specifications
| Operating Temperature | 5°-40°C |
| Operating Humidity | 10%-90% RH (non-condensing, 10°C hourly increase) |
| Enclosure | Brushed stainless steel |
| Printhead and Cabinet Protection Rating | IP4X |
| Inks | High-contrast, eco-friendly vegetable oil-based inks available in 1.4 and 0.85-liter bottles |
| Communication | Ethernet / Dynamark protocols, EDC (serial, TCP, USB), optional: Ethernet/IP™ Protocol, Domino coding automation |
| Print Speed max. | 210 m/min. @100dpi; 100 m/min. @200dpi; 70m/min. @300dpi |
