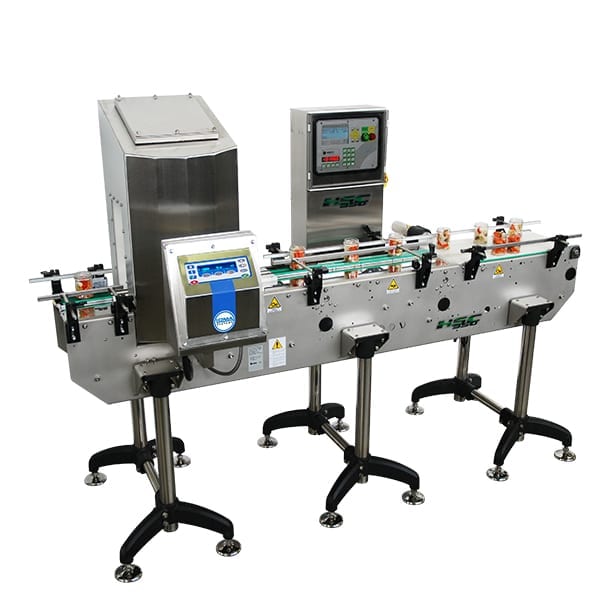

MC Series Combined System


Combining a checkweigher and a metal detector, the MC Series Combined System provides a state-of-the-art solution for end-of-line inspection

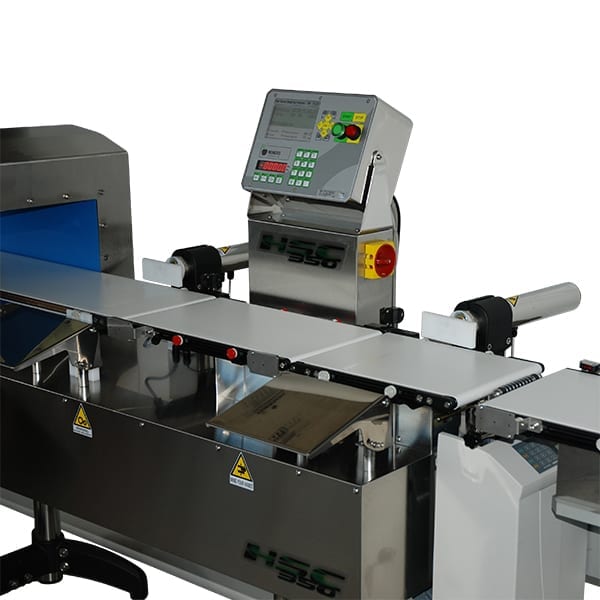

The HSC350 statistical recording platform and the on-site printer log all non-compliances found by the metal detector.

Moreover, the metal detector is completely integrated into the overall command and control system.

TECHNICAL INFO  |  VARIANTS  |   VIDEO

Why Choose the MC Series Combined System?

icona raggiungimento obbiettivi

Dynamic Real-Time Weighing: The HSC350 platform operates without needing product learning or calibration steps, which guarantees straightforward integration and high accuracy.

icona rispetto normativ

Meets All Regulatory Standards: The MC Series Combined System conforms with the MID directive (2004/22/EC of 31/03/2004) and holds a CE Type Certificate since it was officially adopted on 27/10/2006.

icona tipi di prodotto

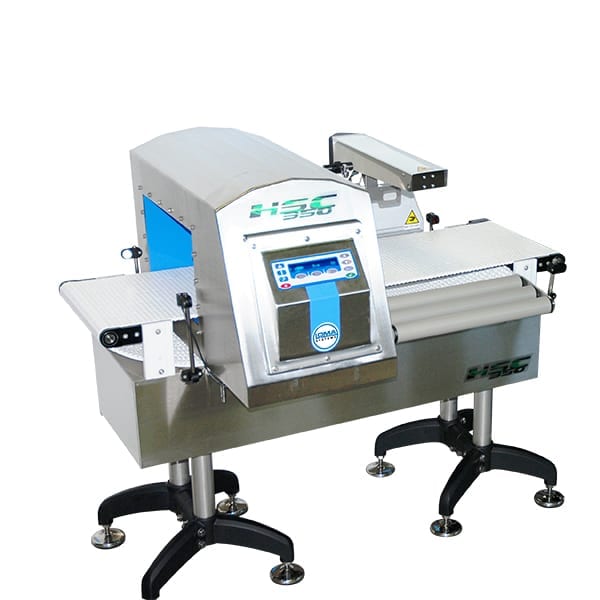

Adaptable Product Management: The metal detector can be supplied with one to four conveyor belts, with options for classic or modular structures. It may operate independently or together with the HSC350 checkweigher.

Technical Info

Maximum Capacity

 1.500 g (HSC350/01)
3.000 g (HSC350/03)
6.000 g (HSC350/06)
15.000 g (HSC350/15)
30.000 g (HSC350/30)

Minimum Capacity

15 g (HSC350/01)
30 g (HSC350/03)
60 g (HSC350/06)
150 g (HSC350/15)
300 g (HSC350/30)

Resolution (d)

≥ 50 mg (HSC350/01)
≥ 0.1 g (HSC350/03)
≥ 0.2 g (HSC350/06)
≥ 0.5 g (HSC350/15)
≥ 1 g (HSC350/30)

Division (e)

≥ 0.5 g (HSC350/01)
≥ 1 g (HSC350/03)
≥ 2 g (HSC350/06)
≥ 5 g (HSC350/15)
≥ 10 g (HSC350/30)•

Number of Divisions

up to 4,000 (HSC350/01)
up to 4,000 (HSC350/03)
up to 4,000 (HSC350/06)
up to 4,000 (HSC350/15)
up to 4,000 (HSC350/30)
