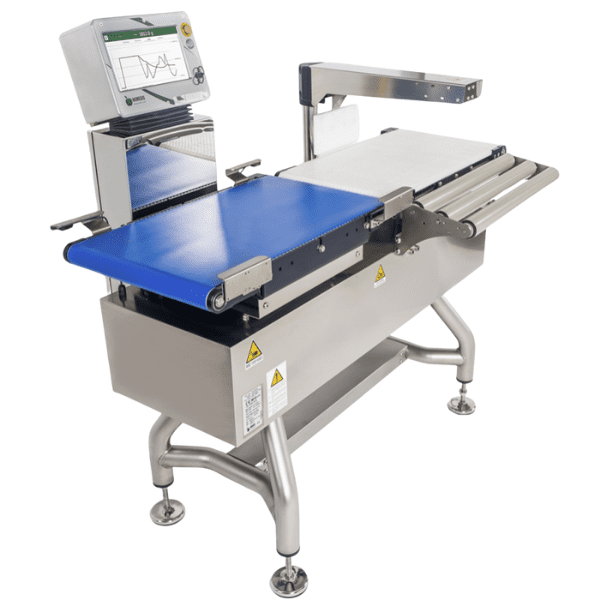

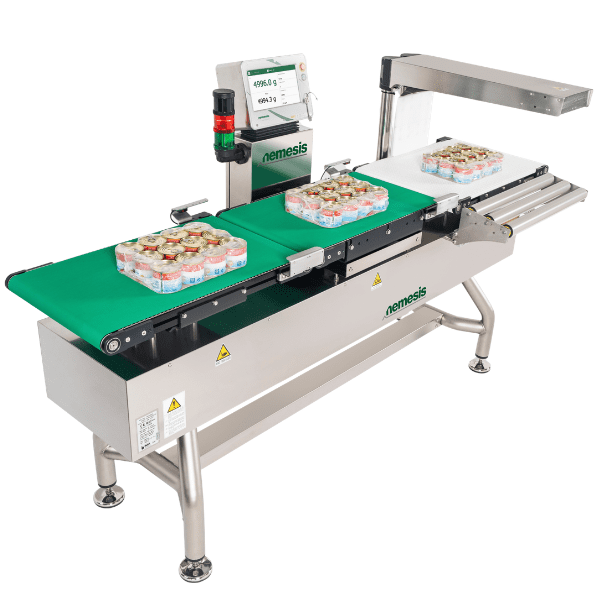

Nemesis H Series Checkweigher


Top Performance Checkweighing for Harsh Industrial Conditions

For fast, reliable weighing in the toughest environments, the Nemesis H Series checkweigher is the go-to choice for measuring tins, glass containers, and brick-shaped packages with cutting-edge chain conveyor systems.

The Nemesis H Series chain checkweigher combines outstanding longevity and precision weight control, featuring a sturdy, resilient build that meets the demands of harsh industrial applications and boasts IP69K-rated protection.

Available in several versions from single up to four-chain conveyors, and with working widths from 50 mm to 230 mm, the Nemesis H Series delivers consistently precise weighing for cans, bottles, and brick packs.

Why Choose the Nemesis H Series Checkweigher?

speed icon

Ultra-Fast Weighing: The Nemesis H Series delivers precise weighing and sorting at rates up to 600 units per minute.

goal icon

Ultimate Protection & Robustness: The IP69K-certified design handles the harshest processing conditions. Fully washable and easy to sanitize with high-pressure cleaning.

product types icon

Perfect for Special Products: With its innovative engineering and dedicated chain conveyor options, the Nemesis H Series is ideal for spray cans, tins, and a wide range of other items.

Technical Information

Maximum Capacity

15.000 g (HSC350/01)
 30.000 g (HSC350/03)
60.000 g (HSC350/06)

Minimum Capacity

 150 g (HSC350/01)
300 g (HSC350/03)
840 g (HSC350/06)

Resolution (d)

≥ 0.5 g (HSC350/01)
≥ 1 g (HSC350/03)
≥ 2 g (HSC350/06)

Division (e)

 ≥ 5 g (HSC350/01)
≥ 10 g (HSC350/03)
≥ 20 g (HSC350/06)

Number of Divisions

fino a 4.000 (HSC350/01)
fino a 4.000 (HSC350/03)
 fino a 4.000 (HSC350/06)
