Nemesis R Series Checkweigher


Checkweighing for High-Speed Production in Demanding Environments

For weighing at high speed in difficult production conditions, the Nemesis R Series checkweigher provides a practical solution for tin cans, glass jars, and brick-shaped packages, equipped with chain conveyors designed for reliability.

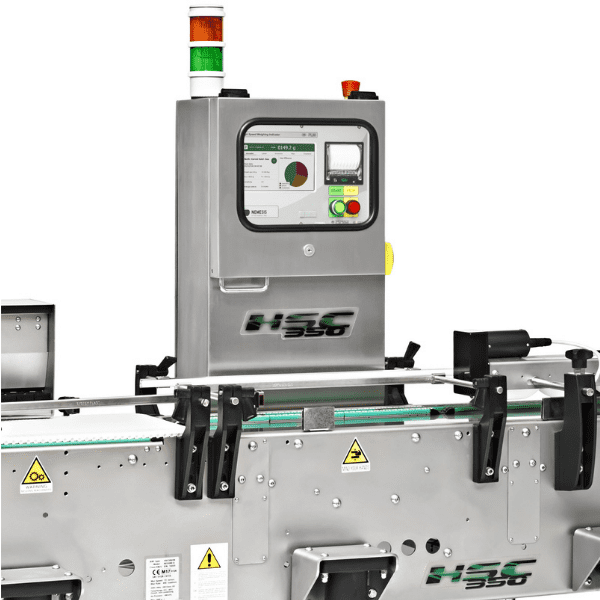

The Nemesis R Series chain checkweigher combines reliable operation and precise weight control, with a structure suitable for demanding industrial environments and an IP69K protection rating.

The Nemesis R Series can be configured in several variants, from 1 to 4 chain conveyors, and usable widths from 50 to 230 mm, to ensure accurate weighing of cans, bottles, and brick packages.

Why Choose the Nemesis R Series Checkweigher?

icona velocità

Fast Weighing: The Nemesis R Series is capable of weighing and selecting products at rates of up to 600 items per minute.

icona raggiungimento obbiettivi

High Protection and Strength: With an IP69K rating, this checkweigher is made to perform in challenging production areas. All parts can be washdown cleaned using high-pressure water.

icona tipi di prodotto

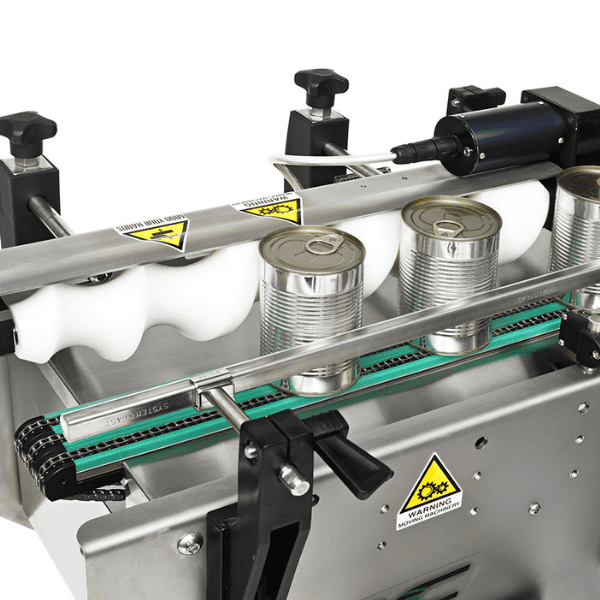

Suitable for Multiple Products: Its design and chain conveyors make the Nemesis R Series well suited for verifying the weight of products such as spray cans, metal tins, and similar packaging.

Technical Information

Maximum Capacity

15,000 g (HSC350/01)
30,000 g (HSC350/03)
60,000 g (HSC350/06)

Minimum Capacity

150 g (HSC350/01)
300 g (HSC350/03)
840 g (HSC350/06)

Resolution (d)

≥ 0.5 g (HSC350/01)
≥ 1 g (HSC350/03)
≥ 2 g (HSC350/06)

Division (e)

≥ 5 g (HSC350/01)
≥ 10 g (HSC350/03)
≥ 20 g (HSC350/06)

Number of Divisions

up to 4,000 (HSC350/01)
up to 4,000 (HSC350/03)
up to 4,000 (HSC350/06)
