Trojan™ T3‑OPX


A versatile, high‑efficiency CMYK overprinter for direct package printing

The Trojan™ T3‑OPX is a high‑definition colour printer engineered for direct printing on absorbent packaging materials including cardboard and paper bags, as well as wood and padded mailers. Leveraging single‑pass technology with pigmented CMYK inks, it produces crisp, long‑lasting prints—removing the need for pre‑printed cartons or separate labels.
Delivering up to 1200 × 1200 dpi resolution and speeds reaching 27 metres per minute, the platform suits late‑stage customization, product coding, and brand graphics on packaging. Automatic height calibration allows the printhead to accommodate substrates up to 100 mm thick.

The T3‑OPX integrates smoothly with existing lines and helps cut both cost and waste by eliminating labels and pre‑printed materials.

Reasons to Choose Trojan™ T3‑OPX

Seamless line integration

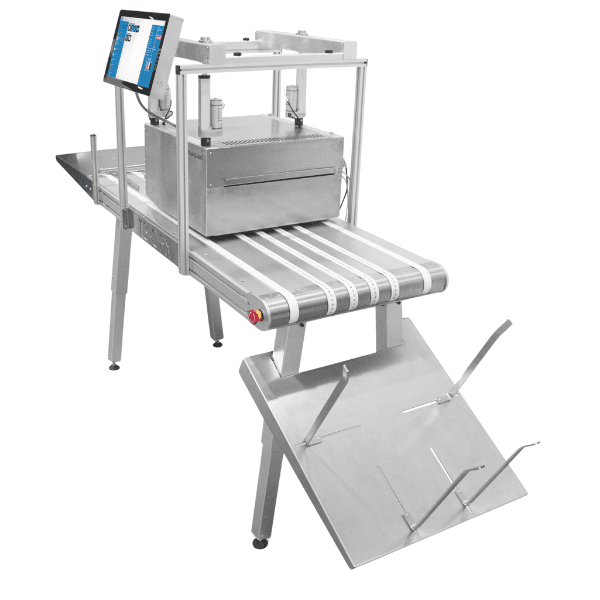

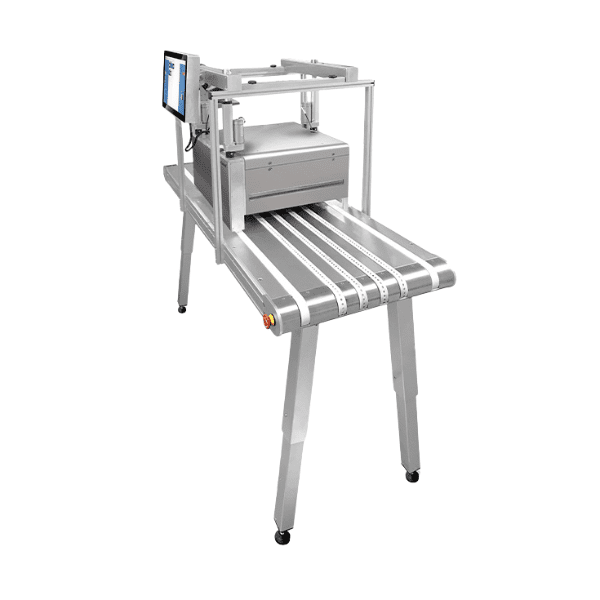

The T3‑OPX is purpose‑built for direct installation in packaging and converting lines. Automatic height control maintains accurate printing regardless of board or product thickness.

Outstanding quality and durability
Pigmented CMYK delivers vivid, repeatable output with resistance to water and UV exposure—ideal for tough industrial environments.

Productive, adaptable operation
Well suited to small batches and variable data work, it reduces reliance on labels and pre‑printed stock—saving time and money.

Technical Specifications

Specification Value
Printing technology Inkjet – pigmented color (CMYK)
Resolution Up to 1200 × 1200 dpi
Print width 297 mm
Print speed Up to 27 m/min
Material thickness Up to 100 mm (automatic adjustment)
Ink type Pigmented, separate CMYK cartridges
Software TrojanControl RIP – Windows 7/8/10, Vista, XP
Interfaces LAN, USB, Ethernet
Operating temperature 15–30 °C
Storage temperature –40 to 60 °C
Power supply 100–240 V AC, 50/60 Hz
Dimensions (W × L × H) 518 × 516 × 290 mm
Weight 20 kg
