Domino Cx150i Large Character Inkjet Printer
Outstanding High-Resolution Print Quality on Non-Porous Materials
Domino Cx150i is a high-resolution inkjet printing system engineered to provide sharp, uniform print results on non-porous substrates, improving product presentation and reinforcing brand visibility directly on the packaging surface.
With a broad selection of connectivity solutions, the printer fits seamlessly into existing production environments and is fully Industry 4.0 compatible, enabling straightforward integration with ERP and MES platforms as well as leading coding automation software.
The QuickStep touchscreen interface is designed for ease of use: parameters can be modified rapidly and new print layouts created with minimal effort, cutting changeover times and simplifying daily operations for line operators.

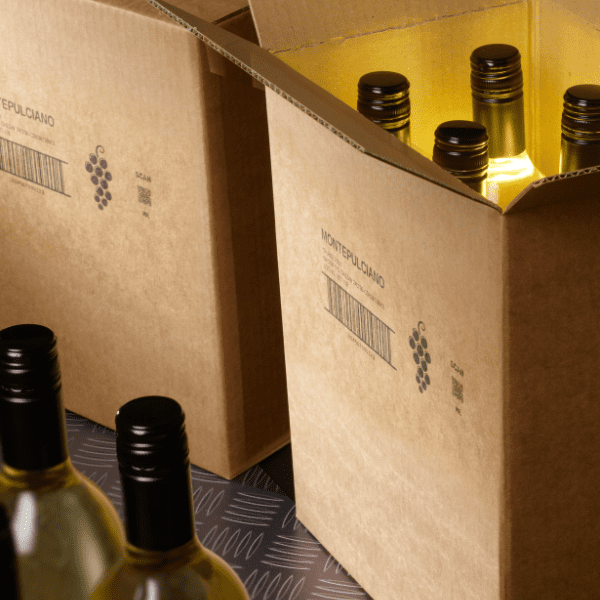

Thanks to the availability of UV or oil-based inks, the system adapts to a wide range of applications: from printing on non-porous surfaces to direct marking on cardboard and secondary packaging, eliminating the need for labels.
Why Choose the Domino Cx150i Large Character Inkjet Printer

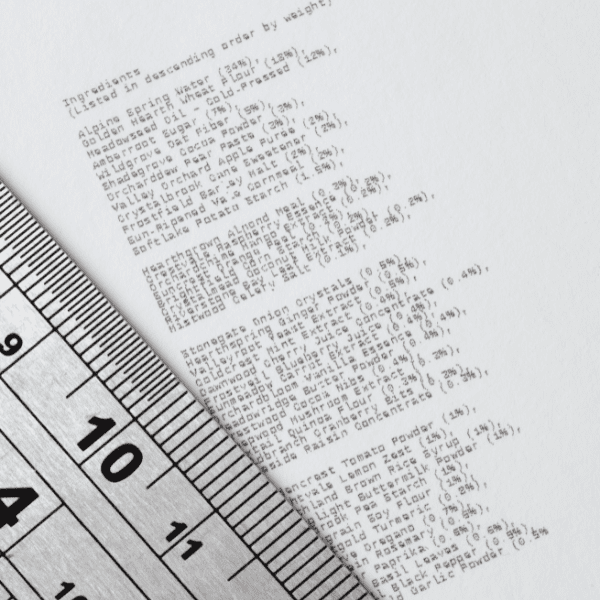

High-resolution output up to 600 dpi horizontally, delivering precise and consistent codes even across large print areas.
Line speeds reaching 200 m/min at 100 dpi, with performance that scales according to the selected resolution.

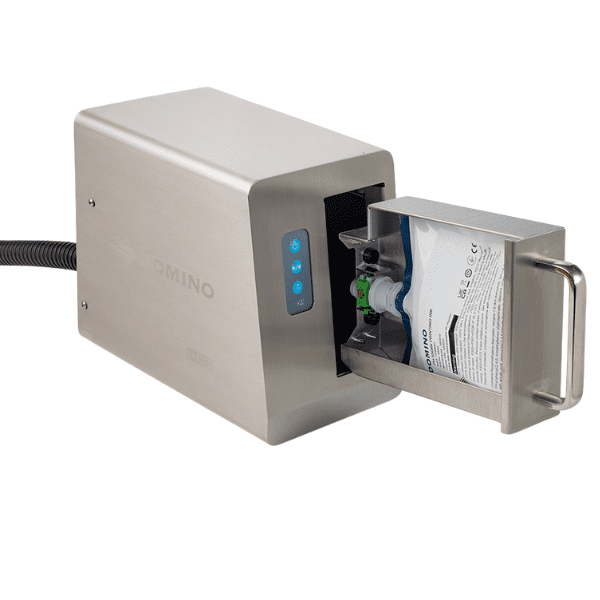

The Domino Cx150i inkjet printer operates with high-contrast UV inks supplied in 500 ml low-waste flexible pouches, combined with efficient UV LED curing to minimise environmental impact.

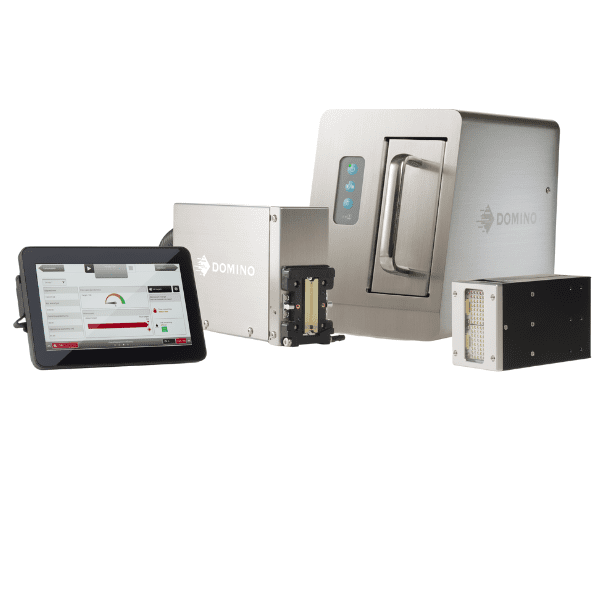

Technical Information
Ink Base
| Ink base | Cx1-Inkbase |
| Description | Cx150i ink base |
| Dimensions | Width 167.0 mm / Depth 276.1 mm / Height 230.5 mm / Weight 7.3 kg (excluding screw, power button, latch, connector cover, bracket) |
| Internal ink tank | 50 ml |
| Power supply | Input 100–240 Vac, 50–60 Hz, 2 A |
| Power connector | 6 mm DC power jack from external power supply unit (included) |
| External connection options | 1 × 24 Vdc power input, 1 × encoder input, 3 × I/O connectors, 2 × USB (Type A), 2 × RJ-45, 2 × IX |

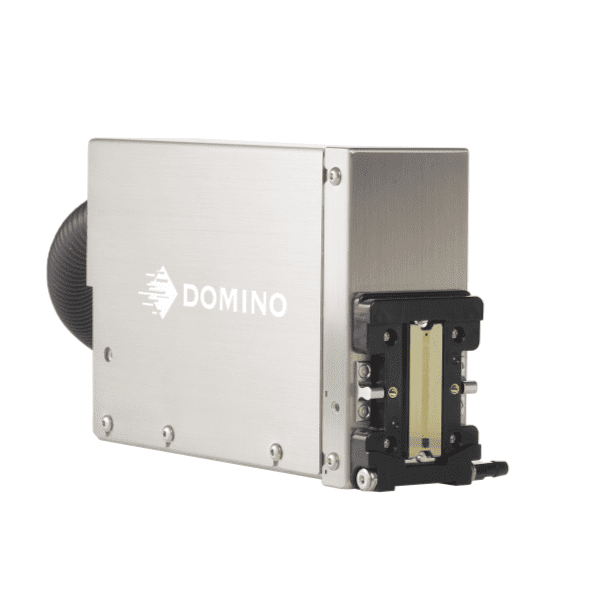

Printhead
| Cx1-PH 32 | Cx1-PH 65 | |
|---|---|---|
| Description | Cx150i 32.5 mm printhead | Cx150i 65.0 mm printhead |
| Conduit length options | 1.5 m and 3.0 m | 1.5 m and 3.0 m |
| Dimensions | Width 61.0 mm / Depth 222.6 mm / Height 136.4 mm / Weight 1.92 kg | Width 61.0 mm / Depth 233.8 mm / Height 136.4 mm / Weight 2.05 kg |
| Maximum print height | 32.5 mm | 65.0 mm |
| Vertical resolution | 300 dpi | 150 dpi |
| Horizontal resolution | up to 600 dpi | up to 600 dpi |
| Nozzle-to-substrate distance | 23.3 mm | 32.7 mm |
TouchPanel
| User interface | 7″ or 10″ touchscreen with QuickStep software |
| Dimensions | 7″ Width 182 mm / Depth 37 mm / Height 121 mm / Weight 0.8 kg 10″ Width 256 mm / Depth 37 mm / Height 166 mm / Weight 1.2 kg |
System Specifications
| Operating temperature | 5–40 °C |
| Operating relative humidity | 10–90% RH (non-condensing, maximum increase of 10 °C per hour) |
| Finish | Brushed stainless steel |
| Protection | IP4X |
| Communication | Ethernet / Dynamark protocol, EDC (serial, TCP, USB), Domino Cloud Interface (DCI), Domino Coding Automation |
| Print speed | Max. 200m/min. at 100dpi, 100m/min. at 200dpi, 70m/min. at 300dpi, 47m/min. at 450dpi, 35m/min. at 600dpi |
| Inks* | High-contrast UV inks supplied in 500 ml low-waste flexible pouches.
High-contrast vegetable OIL-BASED ink, supplied in a 500 ml flexible pouch with a low environmental impact. |

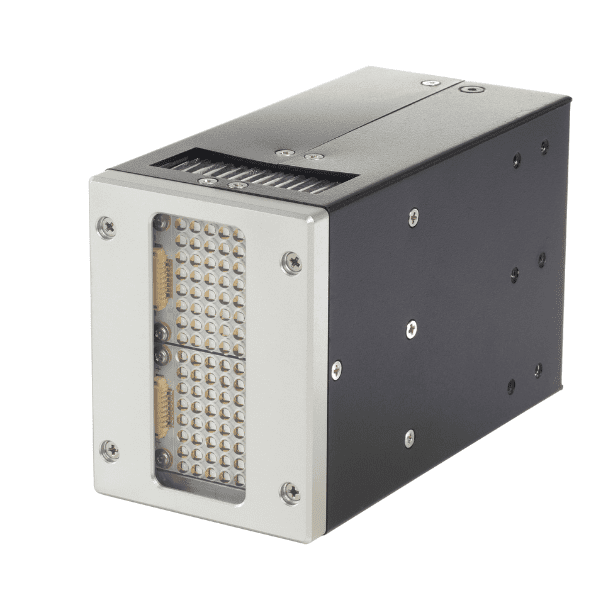

| Recommended UV lamp specifications | 395 nm UV lamp with an intensity of 8–12 W/cm² over 20 mm of travel and at a distance of 5 mm, ensuring effective curing up to a linear speed of 70 m/min.** |
* This product incorporates a quality management system that permits operation exclusively with Domino electronic components and applies dynamic security features to prevent the use of non-Domino parts. Domino periodically releases electronic component updates to maintain system integrity.
** UV curing performance depends on multiple variables; application-specific testing is always required.
