Lumina Checkweigher


An advanced checkweighing solution engineered to deliver precision, efficiency and seamless integration into modern production environments

Why Choose the Lumina Checkweigher

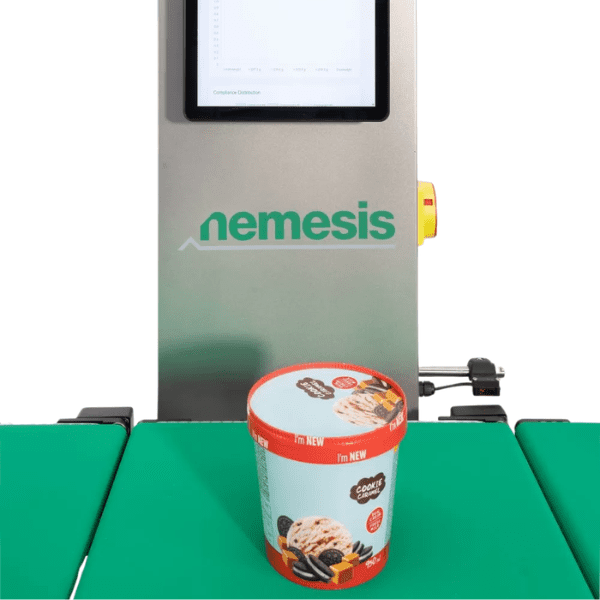

goal achievement iconThe advanced dynamic weighing technology allows you to launch production without auto-calibration or product setup procedures. Lumina quickly identifies the true product weight with consistency, regardless of shape, dimensions or positioning on the conveyor.

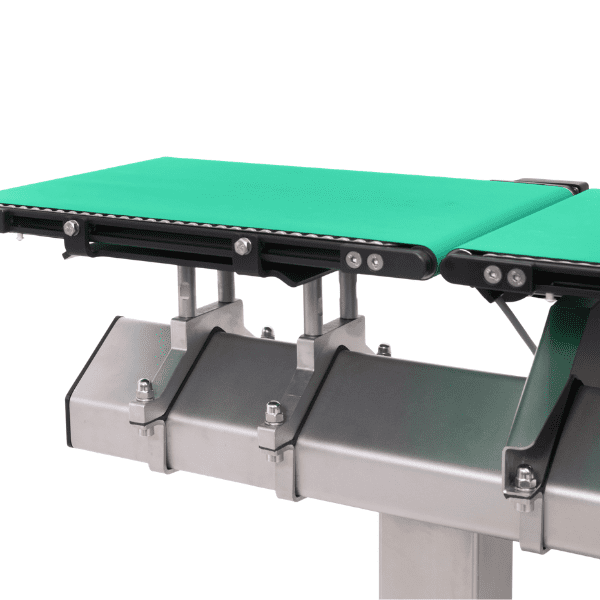

product types iconThanks to its flexible conveyor configurations and accessory options, Lumina adapts easily to a wide range of products and line layouts. The modular architecture allows you to tailor the system to your specific production requirements, optimising both space and performance.

regulatory compliance iconConstructed entirely in stainless steel and engineered for fast and effective sanitisation, Lumina supports compliance in highly regulated industries. It is designed to align with key metrological regulations and safety standards required in today’s industrial facilities.

Technical Information

Capacity From 5 g to 8 kg
Verification Division ≥ 0.1 g
Display Resolution “d” ≥ 0.01 g
Accuracy (3σ) ≥ ± 0.005 g
Throughput ≤ 600 ppm
Conveyor Speed ≤ 120 m/min
Power Consumption ≤ 0.3 kW
Configuration From 1 to 6 conveyors
IP Protection IP65 (IP69K optional)

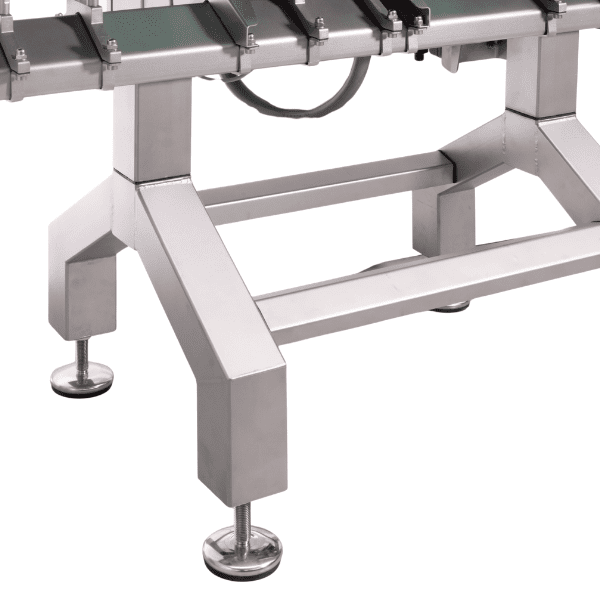

Height From 700 mm to 1100 mm
Conveyor Width From 110 mm to 400 mm
Conveyor Length From 150 mm to 550 mm

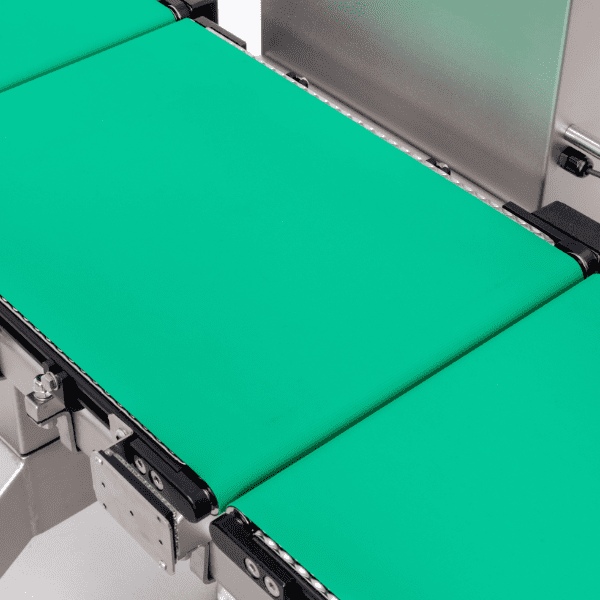

Conveyor Type Polyurethane belt – Modular plastic – V-shape
